MADVAC PS300 - A67589 - Audible Warning Devices

1
14
13
3
7
8
12
15
16
11
4
9
10
9
5
6
8
7
2
Part of option
K66398 - Voice Messaging System. &
K67021 - Soft Reverse With Alarm.
Part of the option K66398
Voice Messaging System.
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 6628 BACK-UP ALARM 1
2 65037 CHASSIS 1
3 66904 BACK-UP ALARM BRACKET 1
4 67360 VOICE ALARM BRACKET 1
5(COME WITH 65794) VOICE ALARM BRACKET # 2 1
6 65794 VOICE ALARM DEVICE 1
7 90018 LOCK WASHER Ø 1/4" 3
8 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 5
9 90020 LOCK NUT Ø 1/4" - 20 UNC. 4
10 90004 WASHER Ø 1/4" 2
11 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 2
12 90005 WASHER # 10 2
13 90056 LOCK WASHER # 10 2
14 90039 BOLT HEX. HEAD # 10 - 32 UNC X 1" Lg. 2
15 26084 HORN 1
16 65091 HORN BRACKET 1

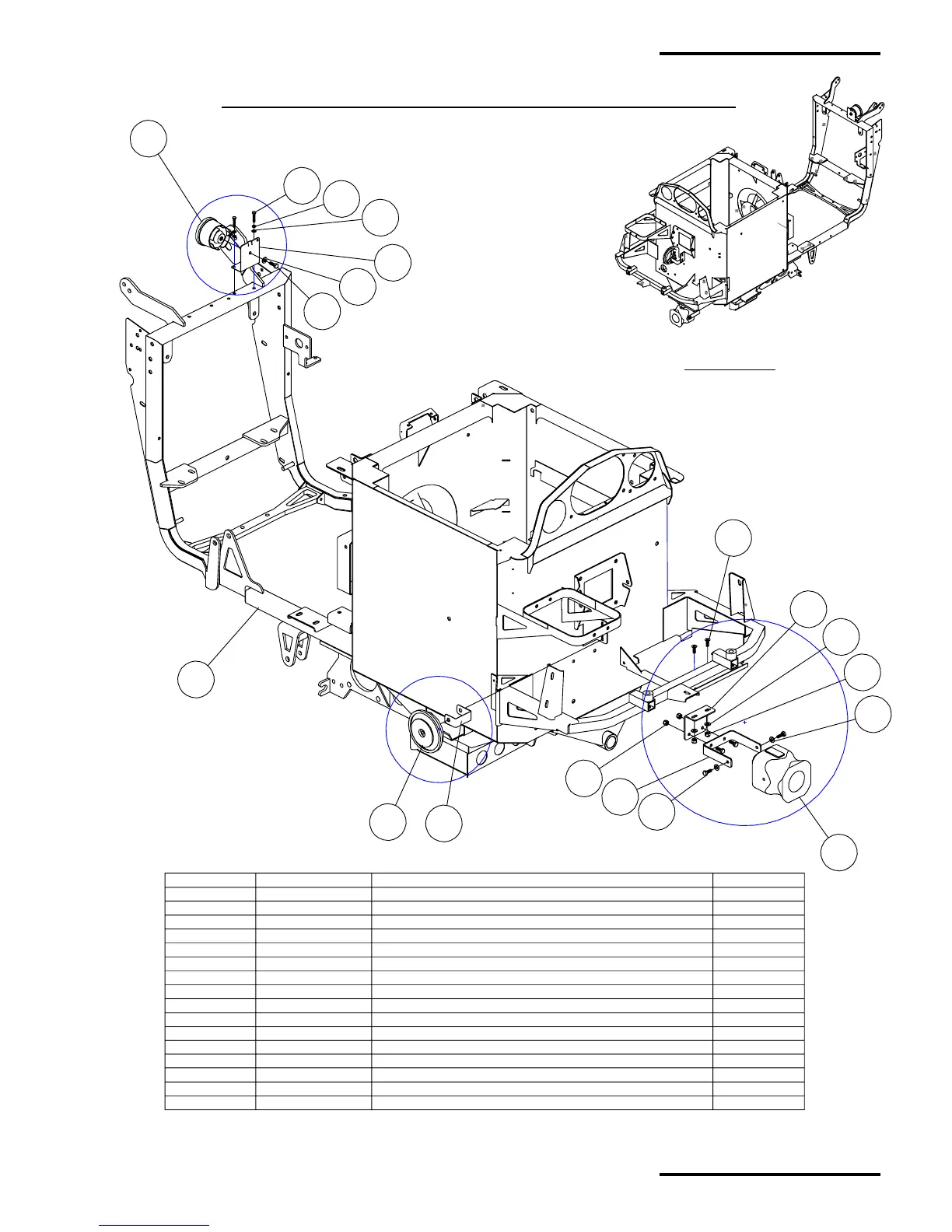

ASSEMBLY VIEW
A67589 - AUDIBLE WARNING DEVICES
WARNING DEVICES BASE MODEL AND OPTIONAL FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
PO-11
Power Pack Section
