MADVAC PS300 - Washer Ø 1;4

1
14
13
5
20
9
7
10
12
6
11
17
2
19
4
17
8
8
3
18
16
15
21
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 (SEE DRAWING A67530) SWIVEL BEAM 1
2 67353 UPPER NOZZLE ARM 1
3 67355 LOWER NOZZLE ARM 1
4 3203 ROD END Ø 1/2" 2
5 67286 CYLINDER BACK AXIS 1
6 67289 CYLINDER FRONT AXIS 1
7 67298 HYDRAULIC CYLINDER 1
8 90010 HEX. NUT Ø 1/2" - 13 UNC. 4
9 25398 HYD. FITTING 90° (Pipe-02/JIC-04) 1
10 67329 HYDRAULIC CYLINDER BOOT 1
11 65712 SHOULDER SCREW Ø 1/2" X 1/2" Lg. 1
12 90096 JUM NUT 1/4" X 20 UNC 1
13 90014 BOLT HEX. HEAD Ø 1/2" - 13 UNC X 2" Lg. 1
14 90009 LOCK NUT Ø 1/2" - 13 UNC. 1
15 65713 SHOULDER BOLT 1/2" X 1 3/4" 4
16 90066 WASHER Ø 3/8" 4
17 65426 BUSHING PARALLEL SPACER 8
18 90046 LOCK NUT Ø 3/8" - 16 UNC. 4
19 65758 BRONZE FLANGE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 3/4" Lg. 2
20 67732 WATER FITTING 90° (Pipe-02/Hose-04) 1
21 90441 WASHER Ø 1/2" 4

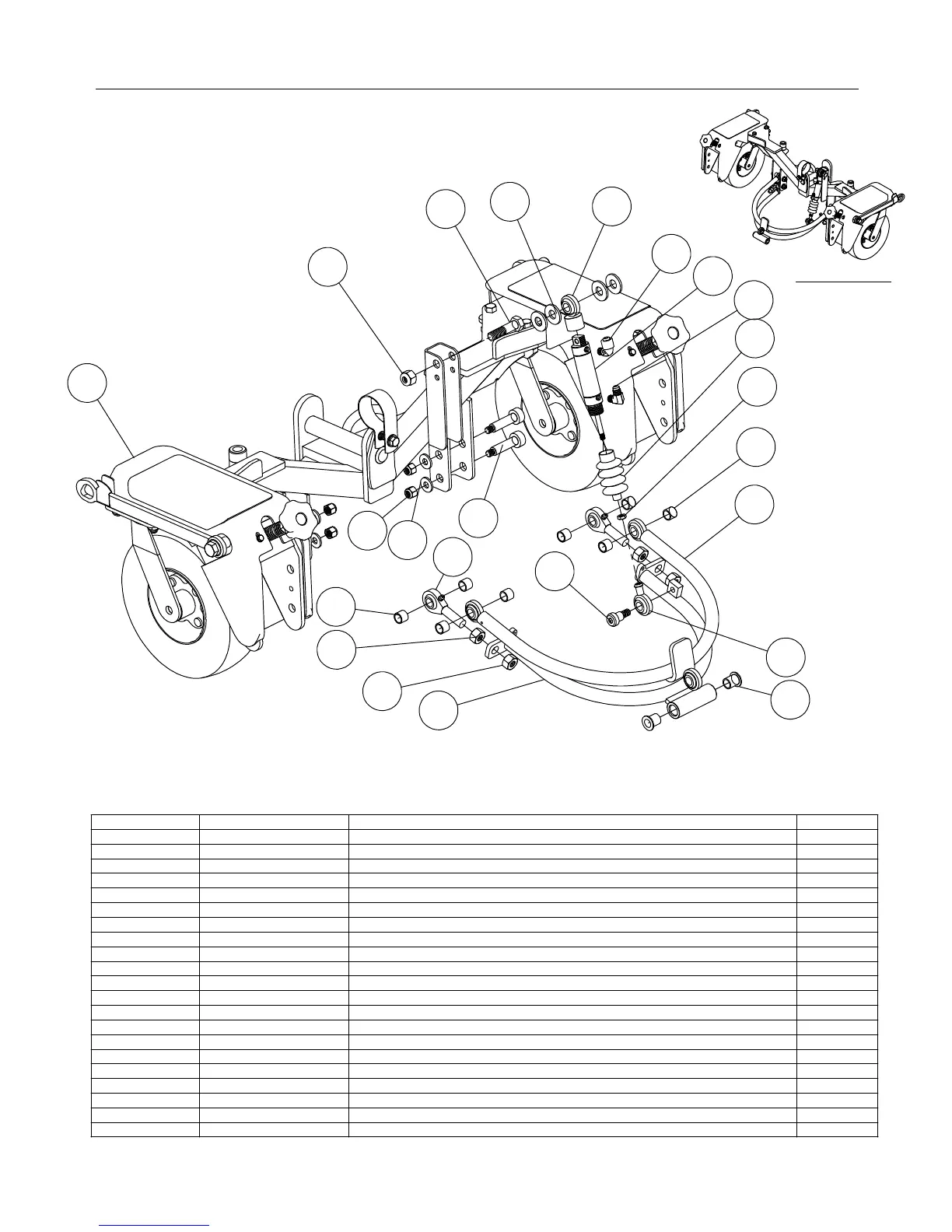

ASSEMBLY VIEW
A67573 - HYDRAULIC RAISE/LOWER NOZZLE OPTION
HYDRAULIC RAISE / LOWER NOZZLE OPTION PART OF THE OPTION KIT K67279 FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
May 2002, Revision: A
