MADVAC PS300 - Page 80

1
3
20
19
8
9
7
21
5
13
6
10
15
6
4
27
26
17
23
25
24
23
16
6
2
11
18
12
14
APPLY LOCKTITE
# 242 OR EQUIVALENT
ON ITEM # 8 & 9
MADVAC P/N: S03-004 HYDRAULIC GUILLOTINE RETRO FIT KIT
B
B
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65217 SUCTION TUBE 1
2 66037 GUILLOTINE GASKET 1
3 65443 TUBE SADDLE 1
4 67280 CYLINDER AXIS 1
5 67294 GUILLOTINE FOR HYDRAULIC OPTION 1
6 66039 FLANGE BEARING GATE VALVE 4
7 67274 LEVER ARM ASS'Y 1
8 67296 BALL PLUNGER 1
9 90086 JAM NUT Ø 5/8" - 11 UNC. 1
10 90053 BOLT HEX HEAD Ø 1/4 -20UNC X 3-1/2 1
11 90020 LOCK NUT Ø 1/4" - 20 UNC 1
12 (COMES WITH 67298) HYDRAULIC CYLINDER NUT 1
13 90046 LOCK NUT Ø 3/8" - 16 UNC. 1
14 90789 SHOULDER SCREW 1/4" X 3/8" Lg. 2
15 90006 LOCK NUT # 10 - 32 UNF 2
16 4242 HYDRAULIC FITTING STRAIGHT (NPT-04/JIC-02) 2
17 68010 GUILLOTINE CYLINDER 1
18 90268 JAM NUT Ø 1/4" X 28 UNF. 1
19 67455 WASHER FOR GUILLOTINE GASKET 10
20 67454 RIVET FOR GUILLOTINE GASKET 10
21 67983 BALL STAND 1
22 67992 AXLE ASSY 1
23 91003 BRASS FLAT WASHER 1/4"I.D. X 1/2"O.D. X .016" THK 2
24 68027 SLEEVE BRONZE BUSHING 1/4" I.D. X 3/8" O.D. X 3/8" LG 1
25 67984 GUILLOTINE ROD END 1
26 90244 WASHER Ø 3/4" CC 1
27 67298 TOOTH LOCK WASHER 1
28 90246 LOCK WASHER # 6 1
29 90334 CROSS MACHINE SCREW ROUND Ø 6-32 X 3/8" lg 1

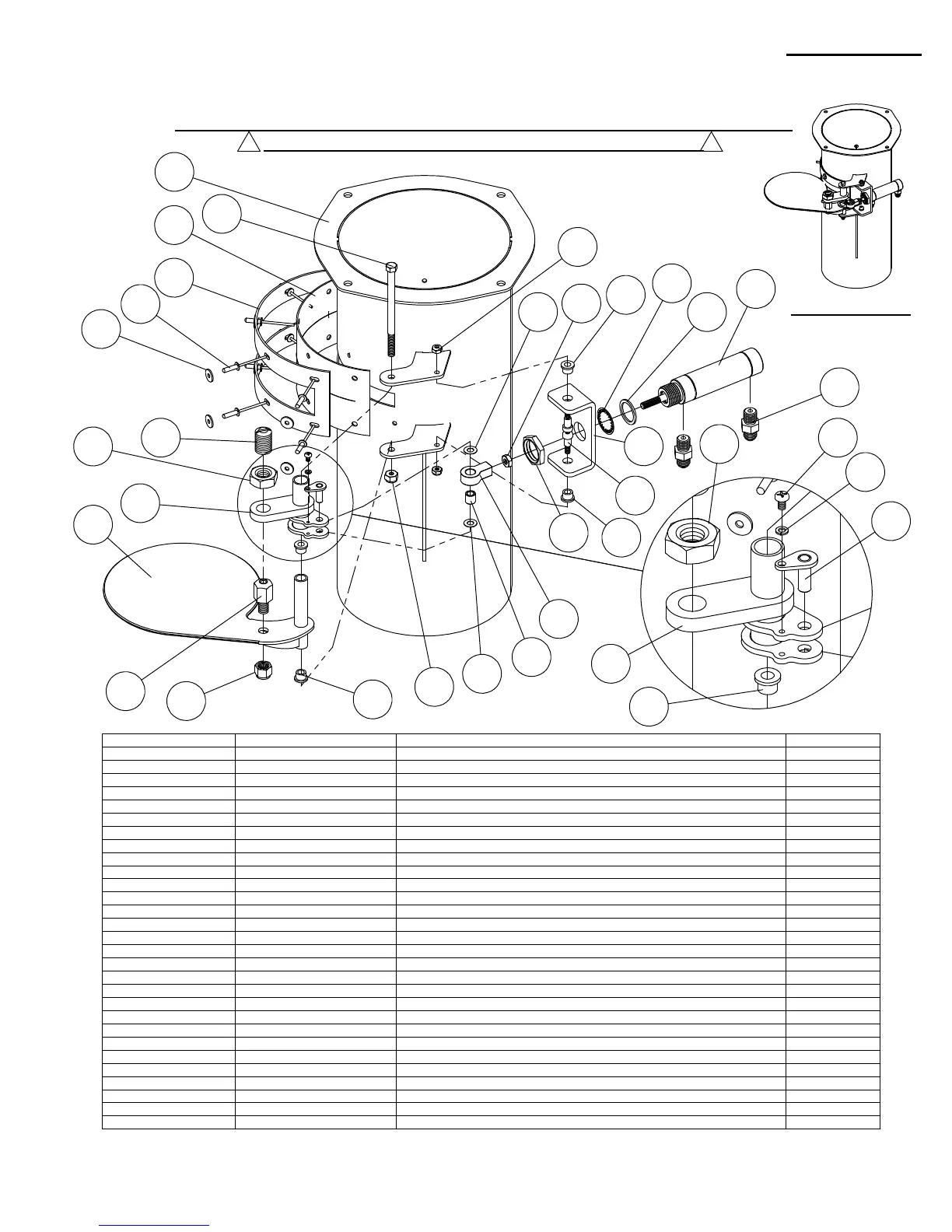

ASSEMBLY VIEW
29
28
6
7
9
22
A67565 - HYDRAULIC GUILLOTINE ACTIVATION OPTION
HYDRAULIC WANDER HOSE ACTIVATION CYLINDER AND GUILLOTINE (OPTION K62278)
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: B
VA-3
Vacuum Section
(SECOND GENERATION)
