MADVAC PS300 - Page 81

20
9
10
11
6
19
4
3
18
14
5
16
17
7
2
8
15
13
1
12
14
16
22
17
15
21
15
17
24
23
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65217 SUCTION TUBE 1
2 65143 SUCTION ELBOW 1
3 66171 SUCTION TUBE GASKET 1
4 66037 GUILLOTINE RUBBER 1
5 65443 TUBE SADDLE 1
6 66023 GUILLOTINE 1
7 90051 BOLT HEX. HEAD Ø 1/4" X 20 UNC. X 1/2" Lg. 4
8 67454 RIVET FOR GUILLOTINE GASKET 10
9 66071 GUILLOTINE SPRING SPACER 1
10 66076 GUILLOTINE SPRING 1
11 90053 BOLT HEX HEAD Ø 1/4 -20UNC X 3-1/2 1
12 66377 GUILLOTINE CABLE BALL JOINT CONNECTOR 1
13 66039 FLANGE BEARING GATE VALVE 2
14 90004 WASHER Ø 1/4" 10
15 90018 LOCK WASHER Ø 1/4" 8
16 90020 LOCK NUT Ø 1/4" - 20 UNC. 6
17 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 10
18 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREADS) 2
19 90017 HEX. NUT Ø 1/4" - 20 UNC. 2
20 67549 FRAME ASSEMBLY 1
21 66070 RETAINING CABLE BRACKET # 2 1
22 66069 RETAINING CABLE BRACKET # 1 1
23 66068 RETAINING CABLE SIDE BRACKET 1
24 66078 GUILOTINE CABLE "T" CABLE 1

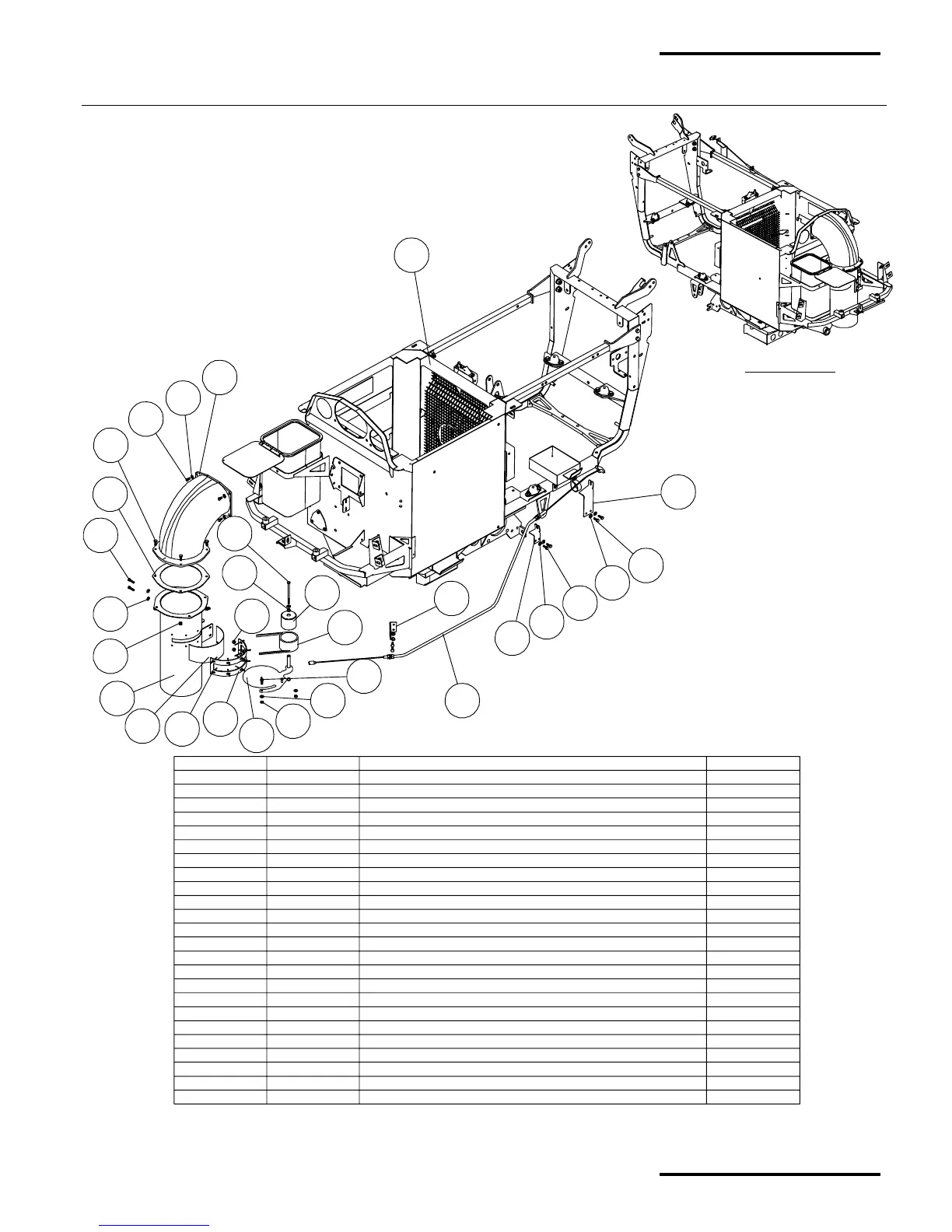

ASSEMBLY VIEW
A67539 - VACUUM SUCCION TUBE & CABLE OPERATED GUILL
O
VACUUM SUCCION TUBE & CABLE OPERATED GUILLOTINE SYSTEM FOR ALL EQUIPPED SERIAL NUMBER (BASE MODEL)
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
VA-4
Vacuum Section
