MADVAC PS300 - A67507 - Right Side Body

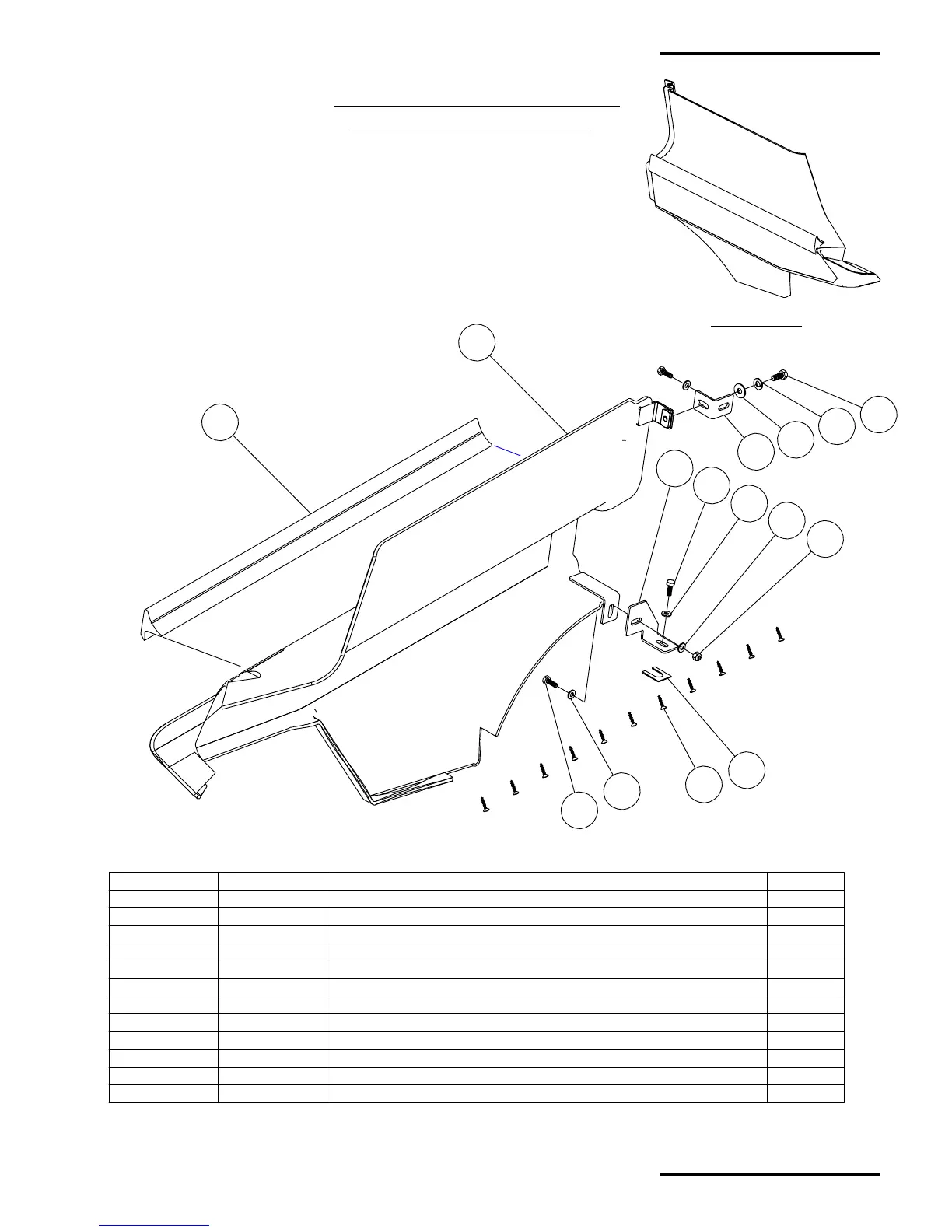

ASSEMBLY VIEW
4
1
5
6
6
7
2
6
5
11
3
8
10
9
12
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67208 RIGHT SIDE BODY 1
2 65565 BODY SUPPORT RIGHT HAND 1
3 65543 BODY SUPPORT 1
4 65944 WANDER HOSE RETAINER FRONT LEFT 1
5 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 3
6 90004 WASHER Ø 1/4" 4
7 90020 LOCK NUT Ø 1/4" - 20 UNC. 1
8 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 1
9 90001 WASHER Ø 5/16" 1
10 90023 LOCK WASHER Ø 5/16" 1
11 90033 WOOD SCREW # 4 X 3/4" Lg. 11
12 66556 BODY SHIM 1/16" Thk. (IF REQUIRED FOR PROPER BODY FIT) 1
A67507 - RIGHT SIDE BODY
FIBERGLASS BODY & FIXATION BRACKETS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
17408 & Below, Use older fiber body design
17409 & Up, Use new fiber body design
Exeption:
17026, 17430, 17427, 17156,
17448, Use older fiber body design
Serial Numbers
17409 and up, Otherwise call factory.
BO-2
Body Section
