MADVAC PS300 - A67525 - Hinged Side Panel Right

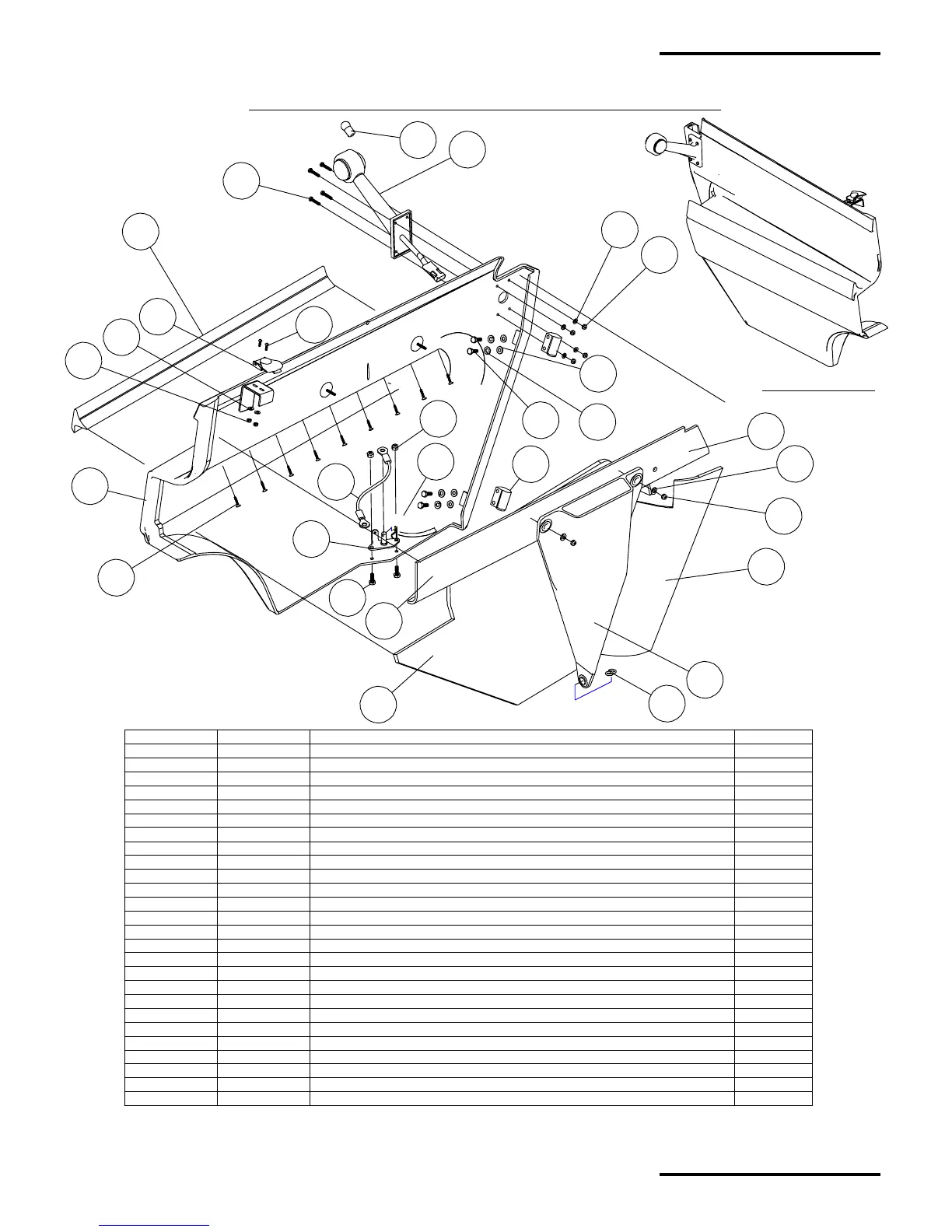

ASSEMBLY VIEW
11
13
12
15
14
16
3
4
2
25
22
18
3
19
20
8
24
10
9
23
1
18
17
5
6
7
21
2
26
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67212 HINGED SIDE PANEL RIGHT 1
2 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 6
3 90004 WASHER Ø 1/4" 8
4 90018 LOCK WASHER Ø 1/4" 4
5 90020 LOCK NUT Ø 1/4" - 20 UNC. 2
6 21548 RETAINING CABLE 1
7 90038 HITCH PIN CLIPS -CP-84 H 1
8 90037 SLOTTED HEAD CAP SCREW # 6 - 32 UNC. X 1/2" Lg. 2
9 90035 LOCK NUT # 6 - 32 UNC. 2
10 90036 WASHER # 6 2
11 65944 WANDER HOSE RETAINER FRONT LEFT 1
12 67424 REAR LAMP 1
13 90039 BOLT HEX. HEAD # 10 - 32 UNC X 1" Lg. 4
14 90006 LOCK NUT # 10 - 32 UNF 4
15 90005 WASHER # 10 4
16 66123 FEMALE DOOR HINGE (LEFT HAND) 2
17 66297 RIGHT DOOR NOISE ABSORBTION PAD 1
18 66286 RIGHT DOOR NOISE BARRIER #3 1
19 90027 LOCK NUT # 10 - 24 UNC. 2
20 66278 "S" HOOK 1
21 66089 DOOR CABLE SUPPORT RIGHT HAND 1
22 66378 DOOR NOISE BARRIER # 1 1
23 90033 WOOD SCREW # 4 X 3/4" Lg. 9
24 66062 HINGED PANEL ROTARY LATCH 1
25 66273 STORAGE POCKET 1
26 67429 REPLACEMENT BULB LIGHT 1
A67525 - HINGED SIDE PANEL RIGHT
FIBERGLASS BODY & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
BO-6
Body Section
