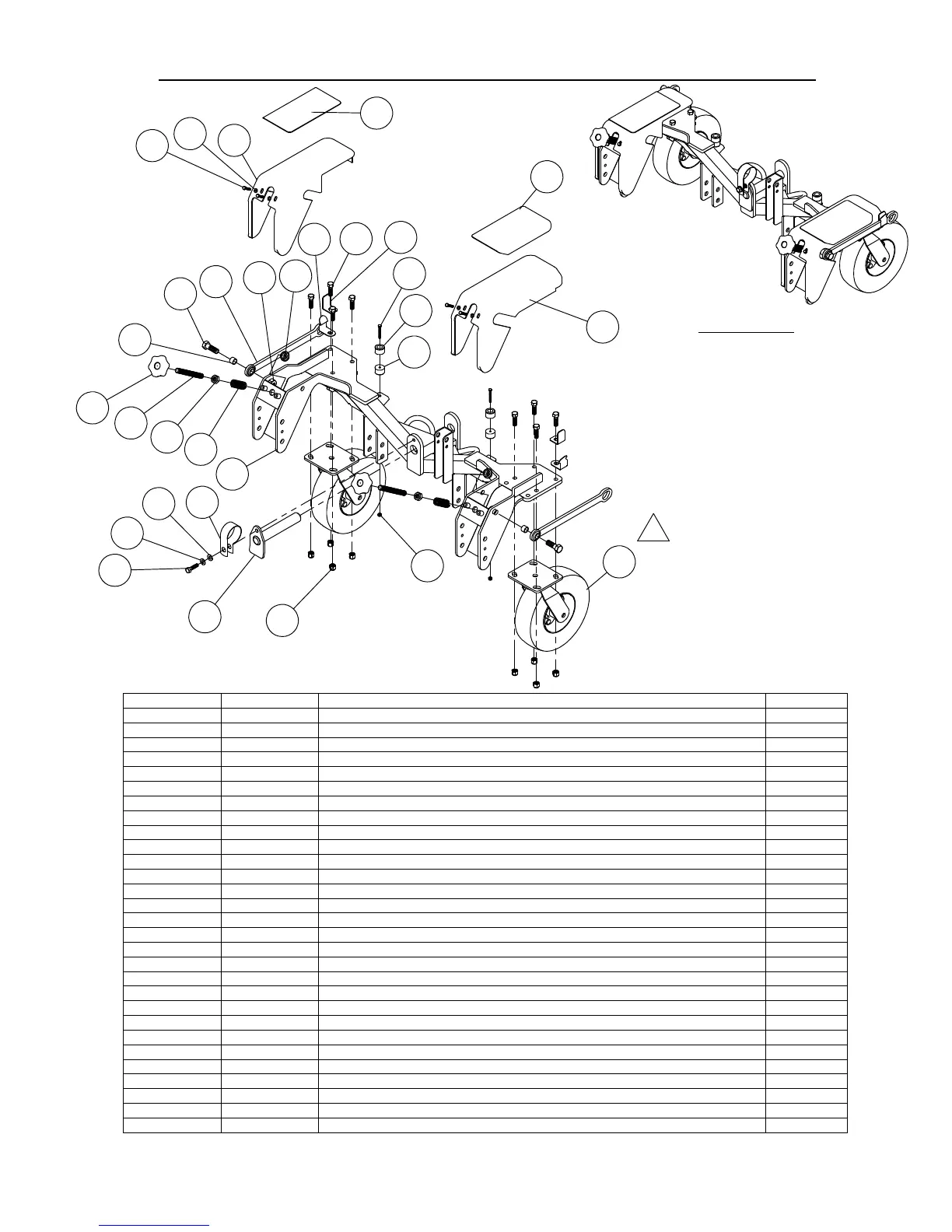

MADVAC PS300 - A67530 - Swivel Beam

ASSEMBLY VIEW
21
20
19
22
29
23
12
15
3
14
4
16
17
13
10
9
9
1
2
5
8
7
6
24
11
28
Serial Numbers 17425 & Below
Use hard filled rubber caster wheels
Serial Numbers 17426 & Up
Use pneumatic filled caster wheels *
- Replacement Bearing P/N: 68083 (Req. 2 per wheel)
- Replacement Bushing P/N: 68084 (Req. 2 per wheel)
- Replacement Castor Wheel Kit P/N: 68082
(includes 1 wheel + 2 Bearings + 2 bushing)
* Hard filled rubber can also be install
in special environement application*
25
18
26
27
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65053 SWIVEL BEAM 1
2 65055 SWIVEL BEAM SHAFT 1
3 66603 BRUSH RETAINING ARM 2
4 90042 BOLT HEX. HEAD Ø 3/8 " - 16 UNC. X 1-1/4" Lg. 8
5 25233 HOSE CLAMP (CL-29) 1
6 90043 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 1-1/4" Lg. 1
7 90023 LOCK WASHER Ø 5/16" 1
8 90001 WASHER Ø 5/16" 1
9 66121 RECESSED PUMPER FLATE TOP 4
10 90044 BOLT HEX. HEAD # 10 - 32 UNF. X 1-1/2" Lg. 2
11 90006 LOCK NUT # 10 - 32 UNF 2
12 65780 SPRING 2
13 65135 TOP PANEL BUSHING 2
14 66595 SPACER TUBE SHORT 2
15 90045 BOLT HEX. HEAD Ø 1/2 - 13 UNC. 1-1/2" Lg. 2
16 67198 RETAINING BRACKET 2
17 67197 RETAINING CLIP 2
18 65901 CASTOR COVER LEFT HAND 1
19 90005 WASHER # 10 4
20 90039 BOLT HEX. HEAD # 10 - 32 UNC X 1" Lg. 4
21 65902 CASTOR COVER RIGHT HAND 1
22 60910 ADJUSTING KNOB 2
23 90012 JAM NUT Ø 1/2" - 20 UNC. 2
24 90046 LOCK NUT Ø 3/8" - 16 UNC. 8
25 90009 LOCK NUT Ø 1/2" - 13 UNC. 2
26 66794 CASTOR WHEEL ANTI-SLIP 1
27 66795 CASTOR WHEEL ANTI-SLIP 1
28 67441 CASTER WHEEL (FRONT PNEUMATIC) 2
29 66257 THREADED ROD Ø 1/2" - 13 UNC. X 4-1/2" Lg. 2
A67530 - SWIVEL BEAM
FRONT CASTER WHEELS AND SWIVEL BEAM WITH ACCESORIES FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: A
