MADVAC PS300 - A68012 - Foot Platform Assembly (Option K67020)

3
2
4
5
15
10
1
6
7
12
9
9
11
13
10
12
9
9
13
10
11
6
7
8
15
3
5
2
4
14
A
A
14
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67967 FOOT PLATFORM 1
2 68013 STEERING PEDAL 2
3 68017 ANTI-SLIP 2
4 68018 GASKET 2
5 90174 BOLT HEX HEAD (FULL THREAD) Ø 5/16" X 18 X 1-1/4" lg 4
6 90001 WASHER Ø 5/16" 4
7 90000 LOCK NUT Ø 5/16" - 18 UNC. 4
8 68019 SKATE ASS'Y 1
9 68021 HINGE 4
10 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 8
11 90038 HITCH PIN CLIPS 2
12 91002 RETAINING RING 2
13 90384 GREASE ZERK 90° ELBOW Ø 1/4"-28 UNF. 4
14 68077 AXIS 2
15 90048 FLAT COUNTERSINK HEAD SCREW M16-1 12 Lg. 5

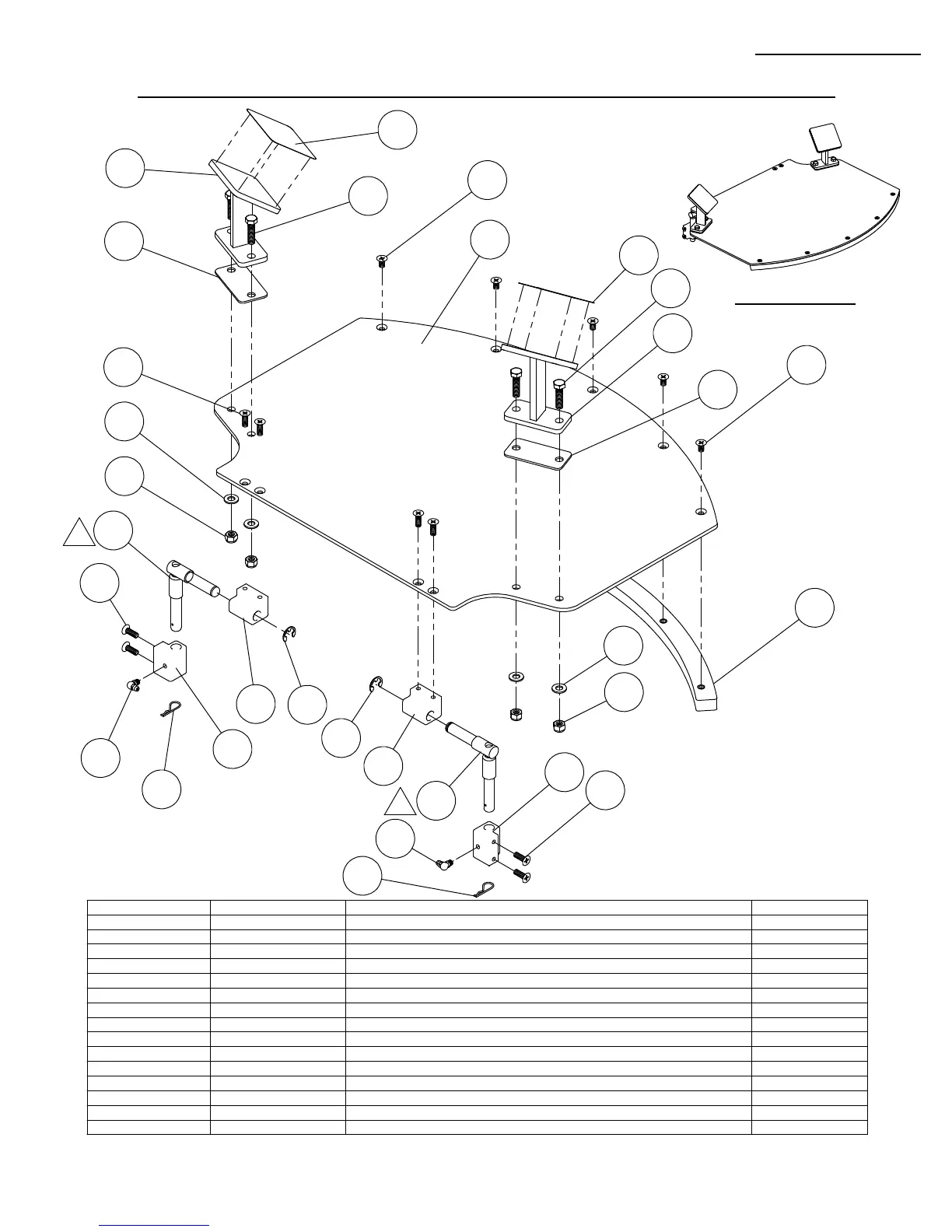

ASSEMBLY VIEW
A68012 - FOOT PLATFORM ASSEMBLY (K67020 OPTION)
FOOT PLATFORM ASSEMBLY FOR PS300 EQUIPPED WITH OPTION K67020 - DELUXE SEAT OPTION
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: A
SE-15
Seat Option Section
