MADVAC PS300 - A67509 - Left Side Body; Washer Ø 5;16

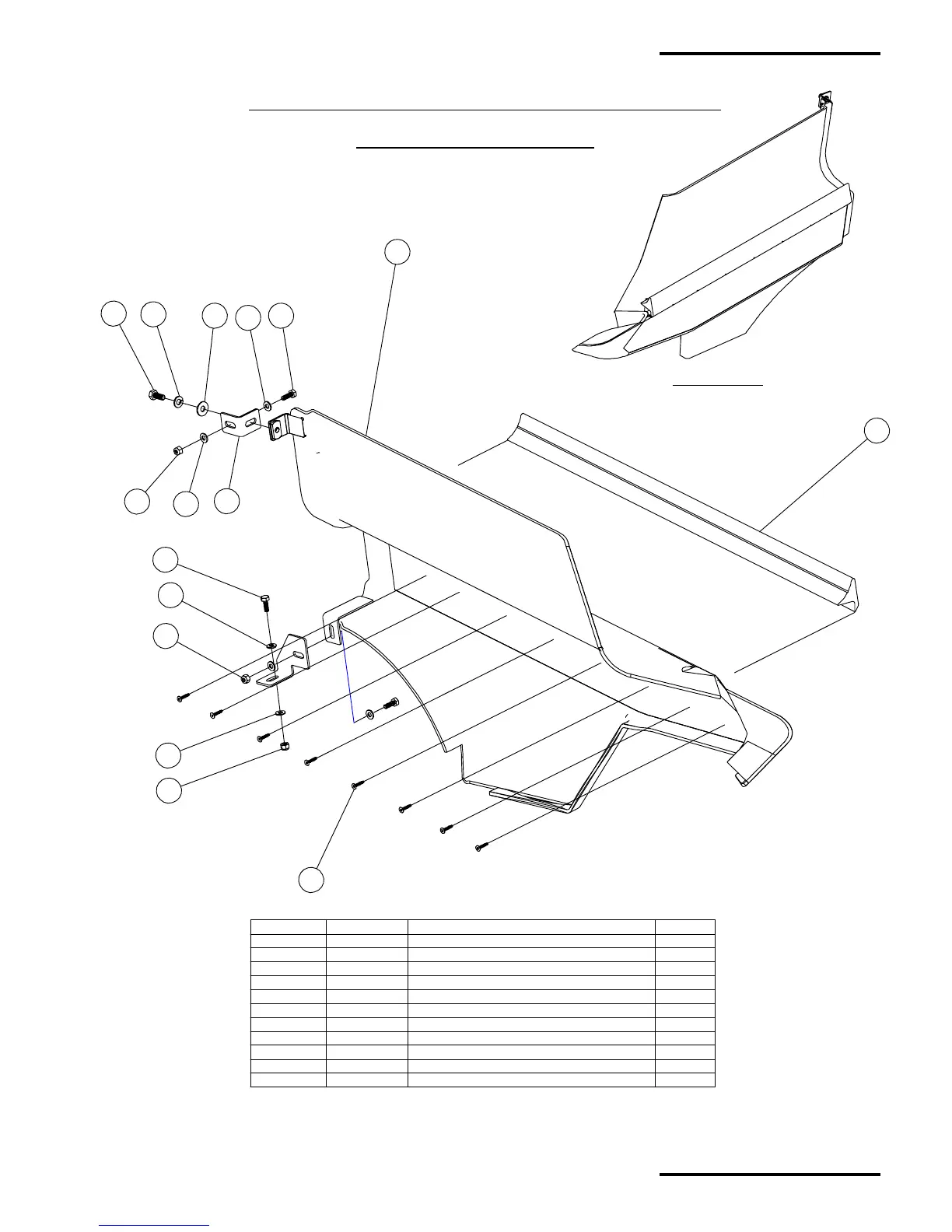

ASSEMBLY VIEW
6
5
9
10
8
7
5
2
1
4
11
6
5
7
5
7
ITEM NUMBERPART NUMBER DESCRIPTION QUANTITY
1 66252 SIDE BODY ASSEMBLY LEFT 1
2 65543 BODY SUPPORT 1
3 65567 BODY ANGLE 1
4 65944 WANDER HOSE RETAINER FRONT LEFT 1
5 90004 WASHER Ø 1/4" 6
6 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 3
7 90020 LOCK NUT Ø 1/4" - 20 UNC. 3
8 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 1
9 90001 WASHER Ø 5/16" 1
10 90023 LOCK WASHER Ø 5/16" 1
11 90033 WOOD SCREW # 4 X 3/4" Lg. 8
A67509 - LEFT SIDE BODY
FIBERGLASS BODY & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
17409 and up, otherwise call factory.
BO-3
Body Section
