MADVAC PS300 - A67893 - Hydraulic Hoses Routing Sweep System (# 17578 & Up)

67798 - HYDRAULIC
HOSE ASSEMBLY
65884 - HYDRAULIC
HOSE ASSEMBLY
65884 - HYDRAULIC
HOSE ASSEMBLY
65891 - HYDRAULIC
HOSE ASSEMBLY
65886 - HYDRAULIC
HOSE ASSEMBLY
665885
HYDRAULIC
HOSE ASSEMBLY
65891 - HYDRAULIC
HOSE ASSEMBLY
4
3
1
2
6
5
6
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1(SEE DRAWING A67532) RIGHT BROOM ASSEMBLY 1
2(SEE DRAWING A67531) LEFT BROOM ASSEMBLY 1
3(SEE DRAWING A67807) HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY 1
4(SEE DRAWING A67304) OIL COOLER 1
5 25403 HYD. FITTING 90° (Female JIC-04/Male JIC-04) 1
6 25373 HYDRAULIC FITTING "T" (JIC-04/JIC-04/JIC-04) 2
A67893 - HYDRAULIC HOSES ROUTING SWEEP SYSTEM
(SERIAL NUMBER 17578 AND UP.)

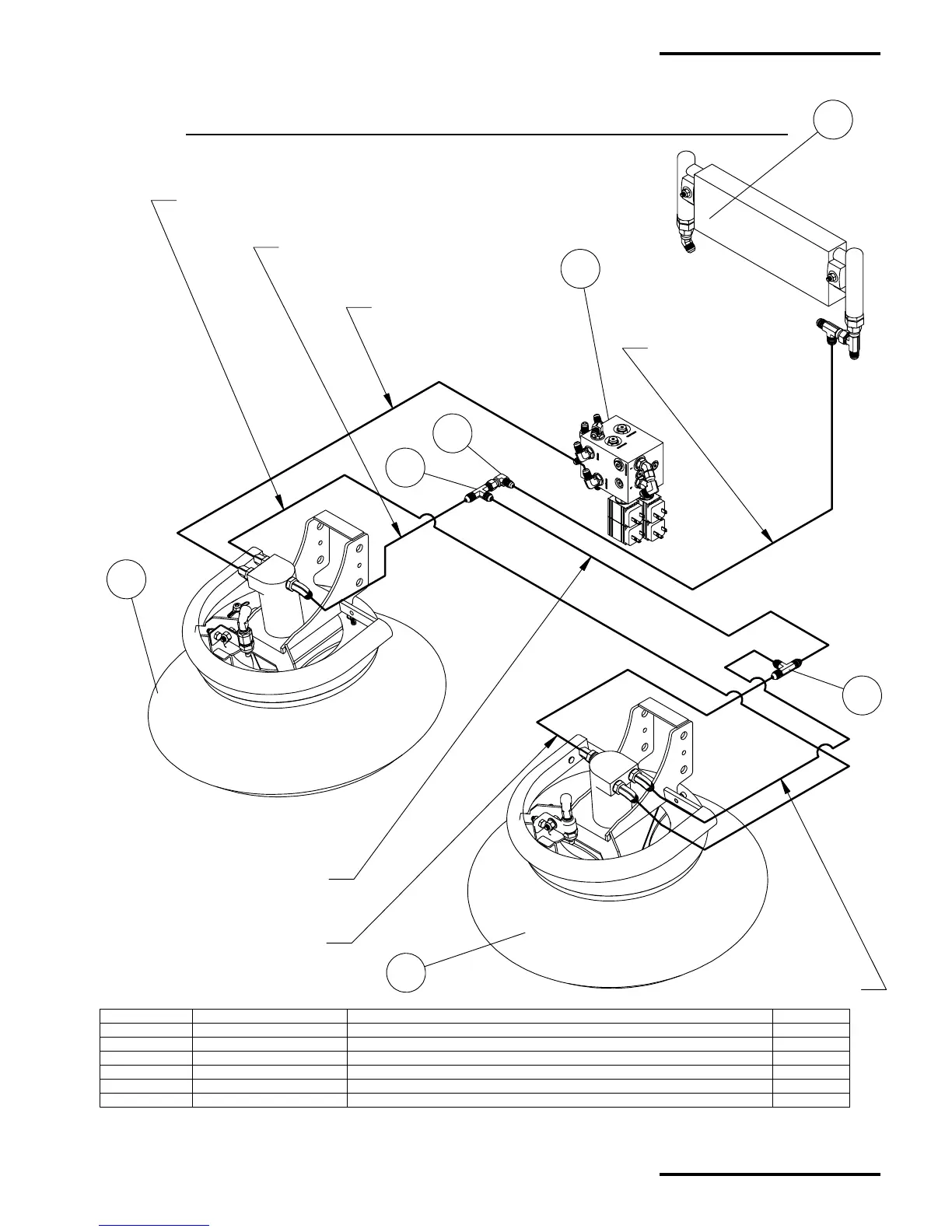

HYDRAULIC HOSES ROUTING FOR PS300 SWEEP SYSTEM (SERIAL NUMBER 17578 & UP.)
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: ---
HY-25
Hydraulics Section
