MADVAC PS300 - A67319 - Deluxe Seat Complete (Option K67020)

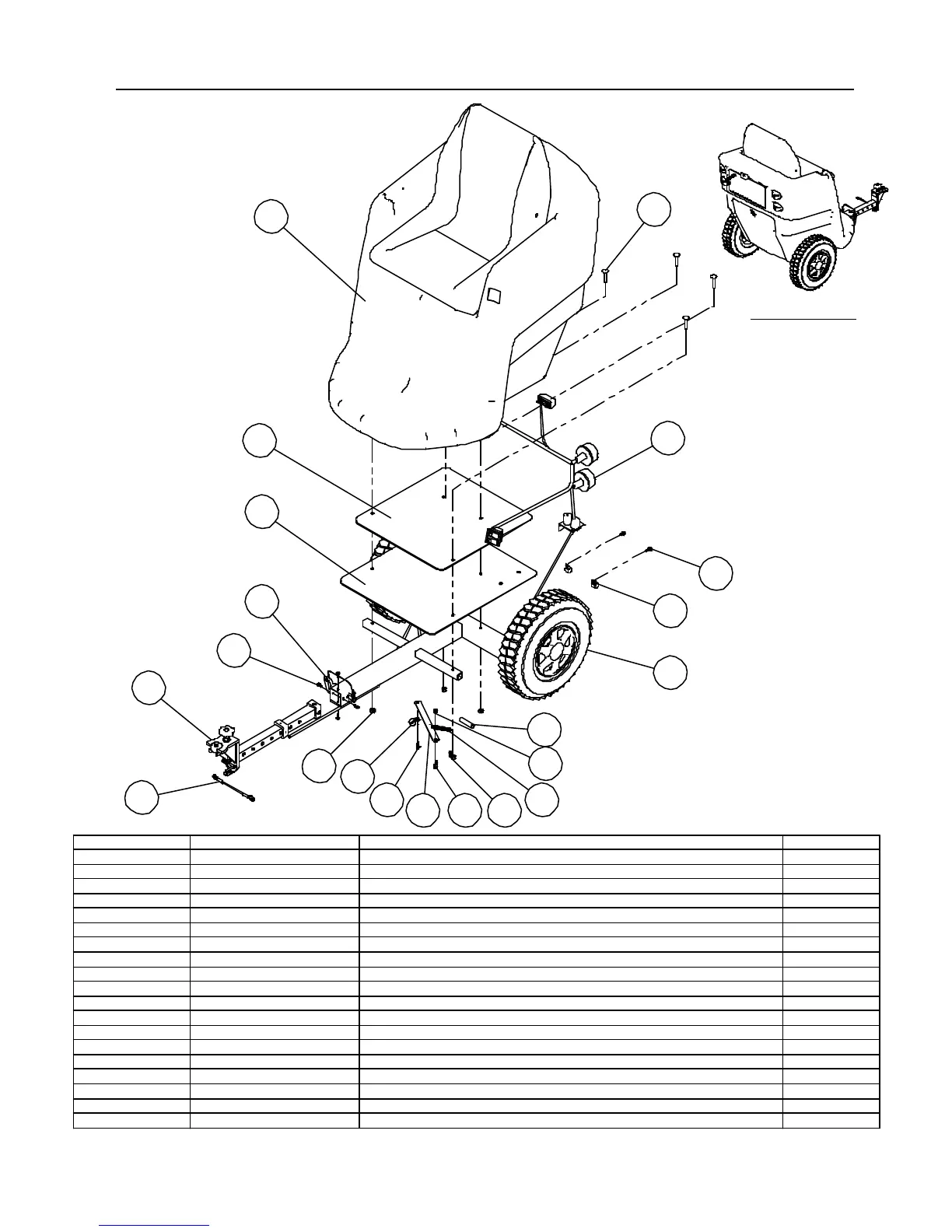

ASSEMBLY VIEW
2
4
7
14
6
17
16
1
8
3
18
15
5
16
17
109
11
13
19
12
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 (SEE DRAWING A67393) FRAME 1
2 (SEE DRAWING A67692) BODY & SEAT ASSEMBLY 1
3 (SEE DRAWING A67855) TOWING ARM ASSEMBLY 1
4 90149 CARRIAGE BOLT Ø 3/8" - 16 UNC. X 2" Lg. 4
5 90046 LOCK NUT Ø 3/8" - 16 UNC. 4
6 67956 BOTTOM PLATE 1
7 67955 TOP PLATE 1
8 21548 RETAINING CABLE 1
9 67978 CABLE RETRACTION BAR 1
10 90852 STAINLESS STEEL SHOULDER SCREW 3/8" X 1/2" Lg. 1
11 66625 SPRING PUMP BRACKET 1
12 90789 SHOULDER SCREW 1/4" X 3/8" Lg. 1
13 67980 SPACER 1
14 (SEE DRAWING A67692) ÉLECTRICAL ASS'Y 1
15 90992 HITCH PIN Dia. 1/2" X 3-5/8" Lg. 1
16 27668 HOSE CLAMP (CL-06) 3
17 90887 SELF DRILLING Ø 1/4" X 3/4" Lg. 3
18 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 4
19 67979 SPRING SUPORT 1
A67319 - DELUXE SEAT COMPLETE (OPTION K67020)
SEAT COMPLETE MECHANICALS COPONENTS FOR PS300 EQUIPPED WITH DELUXE SEAT OPTION K67020
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: ---
