MADVAC PS300 - Page 172

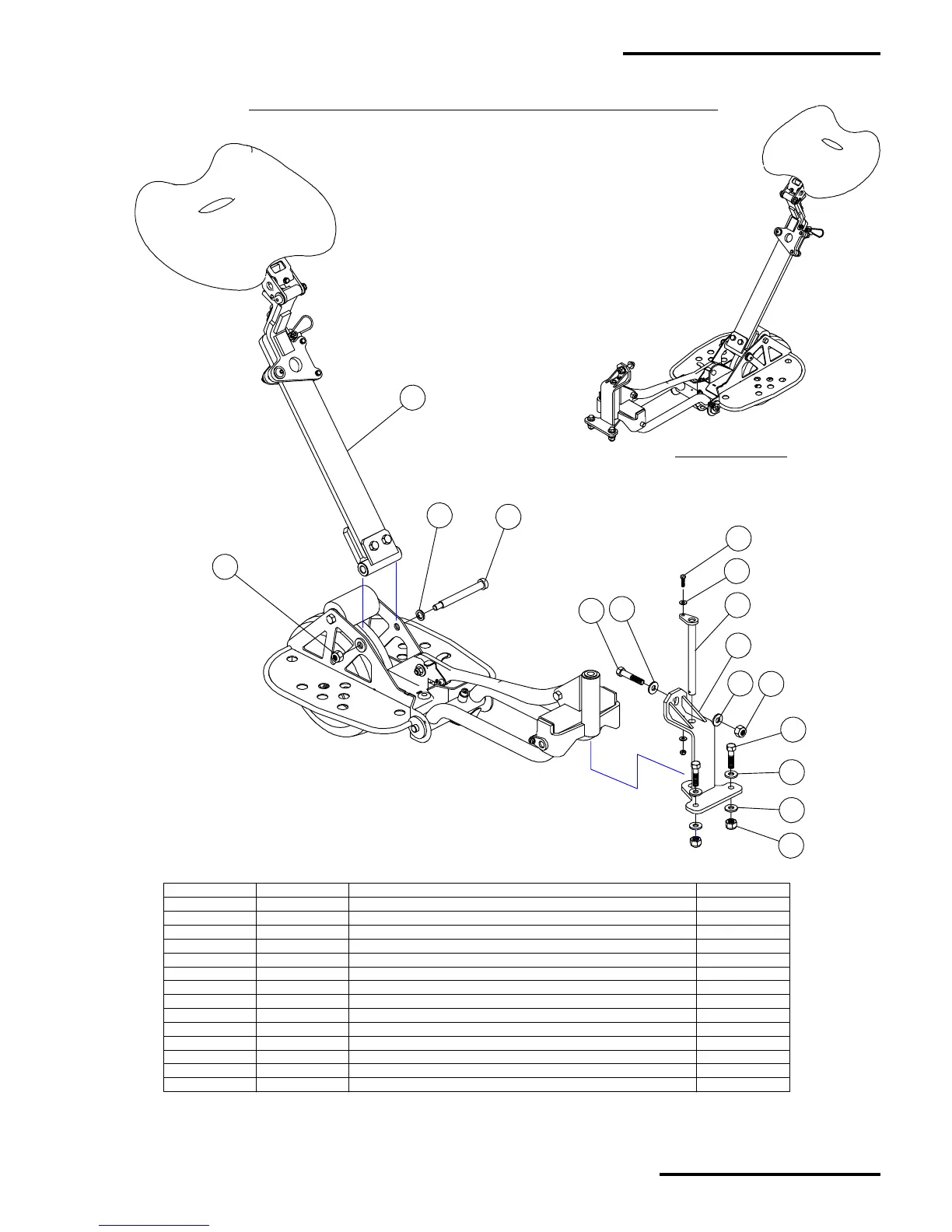

ASSEMBLY VIEW
2
5
8
6
12
10
16
17
13
13
6
6
13
13
7
15
67458 - Electrical Harness on Fold and Stow Seat Option.
67281 - Electrical (Weather Protected) Connector.
See "Electrical Wiring Diagram" for more details and
troubleshooting.
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 66897 COMPENSATION BAR ASSEMBLY 1
2 66718 SEAT ASSEMBLY 1
3 66990 FOLD AND STOW OPTION - BASE 1
5 66444 NYLON WASHER Ø 1/2". 3
6 90046 LOCK NUT Ø 3/8" - 16 UNC. 5
7 90067 BOLT HEX HEAD Ø 3/8" - 16 UNC X 1-1/2" Lg. 3
8 66389 SHOULDER SCREW Ø 1/2" X 4" Lg. 1
10 90005 WASHER # 10 2
11 90006 LOCK NUT # 10 - 32 UNF 1
12 90007 BOLT HEX. HEAD # 10 - 32 UNF. X 3/4" Lg. 1
13 90066 WASHER Ø 3/8" 6
15 66877 HITCH 1
16 66974 PIVOT SHAFT 1
17 90072 BOLT HEX. HEAD Ø 3/8" - 16 UNC X 2" Lg. 1
A67558 - FOLD AND STOW SEAT OPTION - COMPLETE
LOWER AND UPPER SECTION WITH HITCH FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
SE-6
Seats Options Section
