MADVAC PS300 - A67606 - Hydraulic Manifold

14001-PORT PLUG INSTEAD
OF 65790-CHECK VALVE
FOR CONFIGURATION
WITHOUT SOFT REVERSE
OPTION
5923-NEEDLE VALVE INSTEAD
OF 65788-SOLENOIDE VALVE
FOR CONFIGURATION
WITHOUT SOFT REVERSE
OPTION
14001-PORT PLUG INSTEAD
OF 65789-CHECK VALVE
FOR CONFIGURATION
WITHOUT SOFT REVERSE
OPTION
2
4
6
6
5
1
12
3
14
7
8
13
10
11
9
B
B
C
C
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65635 MANIFOLD 1
2 4412 HYD. FITTING 90° (ORB-04/JIC-04) 1
3 4323 HYD. FITTING PORT PLUG (O-Ring Boss-06) 1
4 4439 HYD. FITTING 90° (ORB-8/JIC-8) 1
5 4307 HYDRAULIC FITTING STRAIGHT (ORB-08/JIC-08) 1
6 4285 HYDRAULIC FITTING STRAIGHT (JIC-06/ORB-06) 2
7 67699 HYDRAULIC FITTING TEST PORT COUPLING 1
8 65788 DIRECTIONAL CONTROL VALVE SOLENOID 1
9 (COMES WITH 65788) JAM NUT 1
10 (COMES WITH 65788) COIL FOR SOLENOIDE VALVE 1
11 5915 CONNECTOR FOR SOLENOID COIL 1
12 65790 CHECK VALVE 1
13 65785 SINGLE CROSS-OVER RELIEF VALVE 1
14 65789 RELIEF VALVE 1

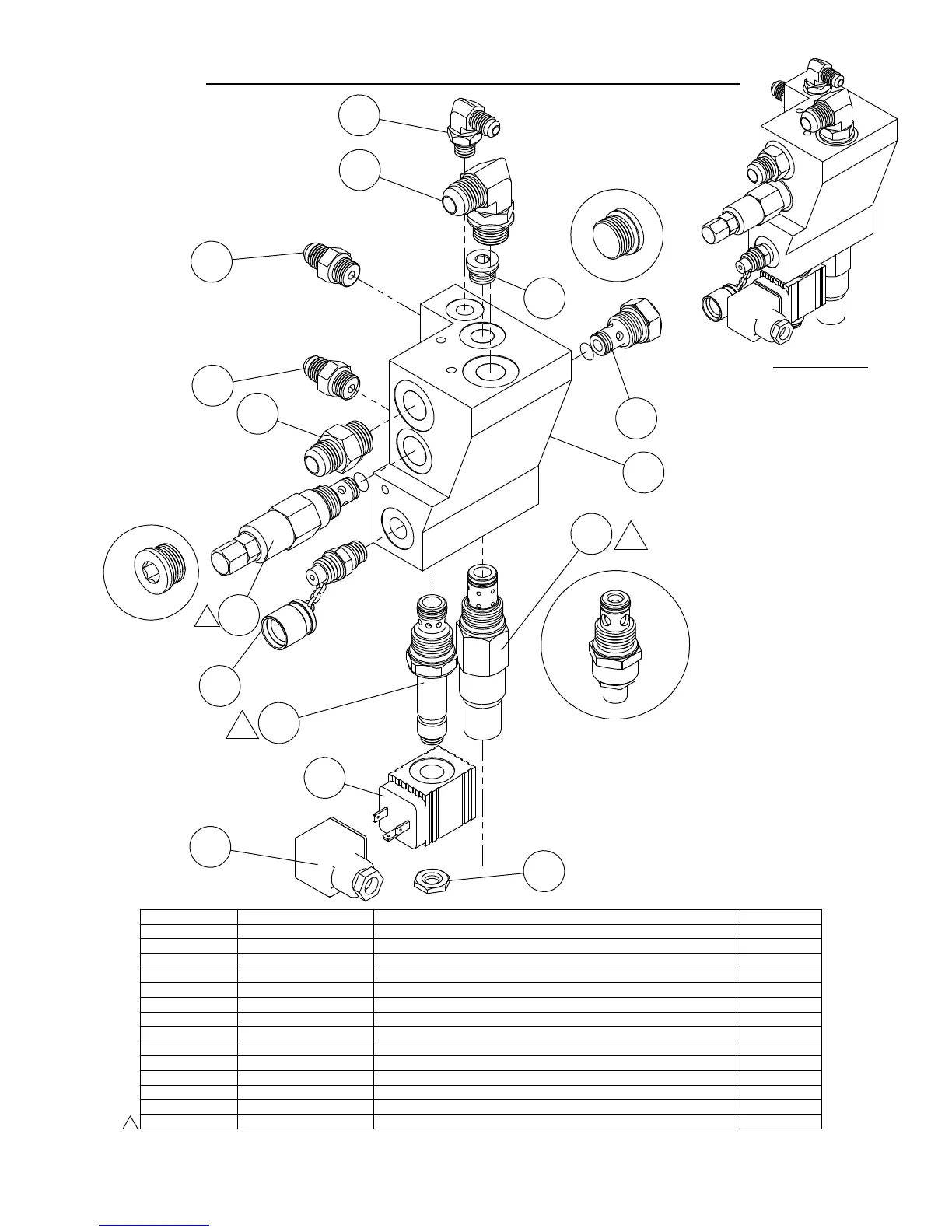

ASSEMBLY VIEW
A67606 - HYDRAULIC MANIFOLD
HYDRAULIC MANIFOLD & HYDRAULIC FITTINGS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: C
