MADVAC PS300 - A67541 - Sweeping Arm Left & Right

LOWER PARALLELOGRAM ARM
COMES NOW WITH BRONZE BUSHINGS
ALREADY PRESSED-IN & REAMED
5 4
5
3
6
2
1
2
7
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65709 RUBBER BOOT BRUSH ARM 1
2 65697 BOOT RETAINER 2
3 65098 UPPER BRUSH ARM 1
4 65460 BROOM ADJUSTER 1
5 65758 BRONZE FLANGE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 3/4" Lg. 2
6 65426 BUSHING PARALLEL SPACER 1
7 67751 LOWER PARALLELOGRAM ARM 1

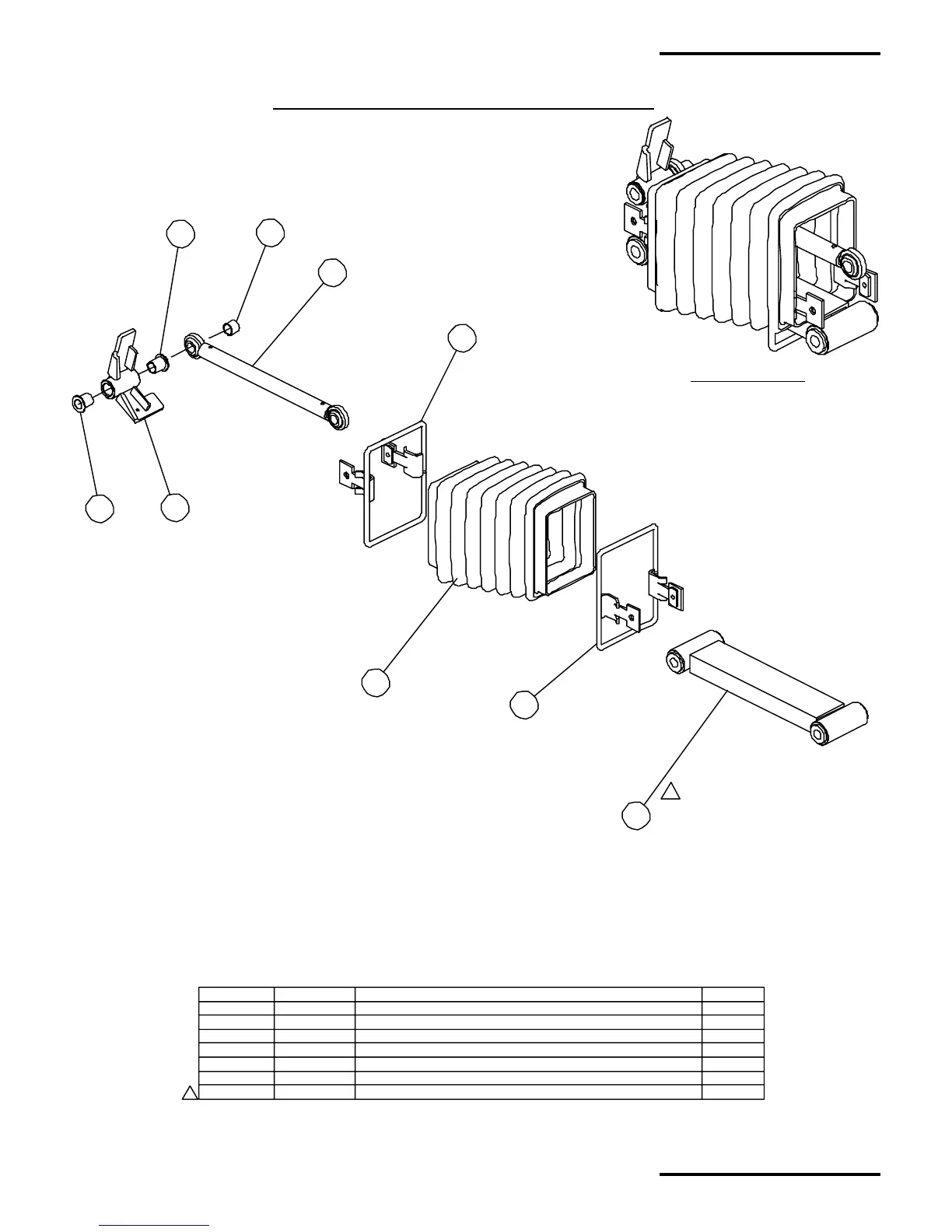

ISOMETRIC VIEW
A67541 - SWEEPING ARM LEFT & RIGHT
SWEEPING ARM MECHANISIM FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
February 2003, Revision: A
SW-3
Sweeping Section
