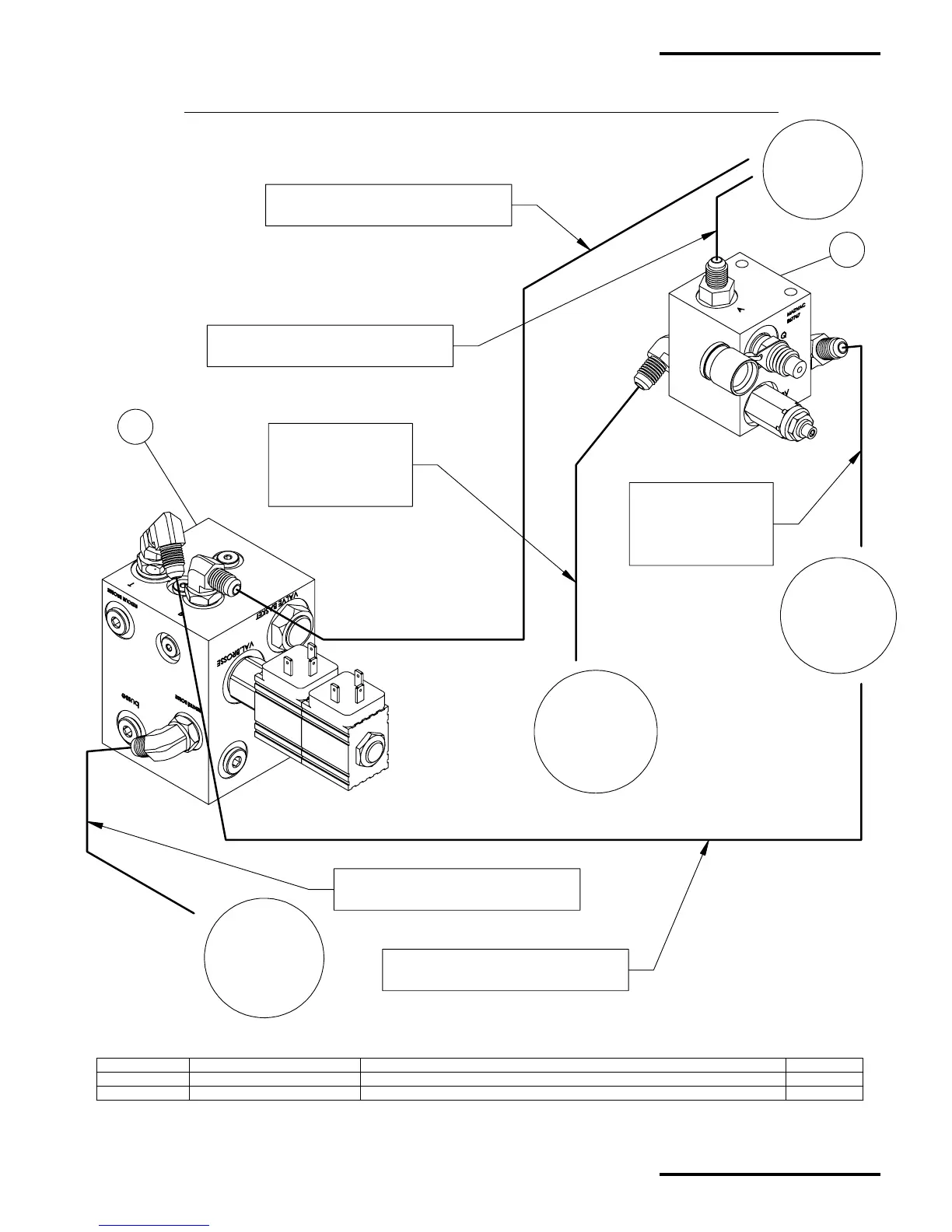

MADVAC PS300 - A67785 - Hydraulic Hoses Routing (Option K67377)

TO FLOW
CONTROL
(SEE
DRAWING
A67608)
TO OIL
COOLER
(SEE DRAWING
A67304)
TO
HYDRAULIC
PUMP
(SEE DRAWING
A67592)
TO HYDRAULIC
BRUSH MOTOR
(SEE DRAWING
A67531 &67532)
65884 - HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL COOLER
TO HYDRAULIC OPTIONAL MANIFOLD
65880 - HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL COOLER
TO HYDRAULIC OPTIONAL MANIFOLD
67773 - HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL COOLER
TO HYDRAULIC OPTIONAL MANIFOLD
67798 - HYDRAULIC HOSE ASSEMBLY
FROM HYDRAULIC OIL COOLER
TO HYDRAULIC OPTIONAL MANIFOLD
65882 - HYDRAULIC
HOSE ASSEMBLY
FROM HYDRAULIC
OIL COOLER
TO HYDRAULIC
OPTIONAL MANIFOLD
65880 - HYDRAULIC
HOSE ASSEMBLY
FROM HYDRAULIC
OIL COOLER
TO HYDRAULIC
OPTIONAL MANIFOLD
1
2
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 (SEE DRAWING A67778) OPTIONAL MANIFOLD FOR PS300 STANDARD CONFIGURATION 1
2 (SEE DRAWING A67765) UNLOADING BLOC ASS Y 1
A67785 - HYDRAULIC HOSES ROUTING (SERIAL # 17578 & UP)
HYDRAULIC HOSES ROUTING FOR PS300 EQUIPPED WITH STANDARD CONFIGURATION
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: A
HY-19
Hydraulics Section
