MADVAC PS300 - A67502 - Hood

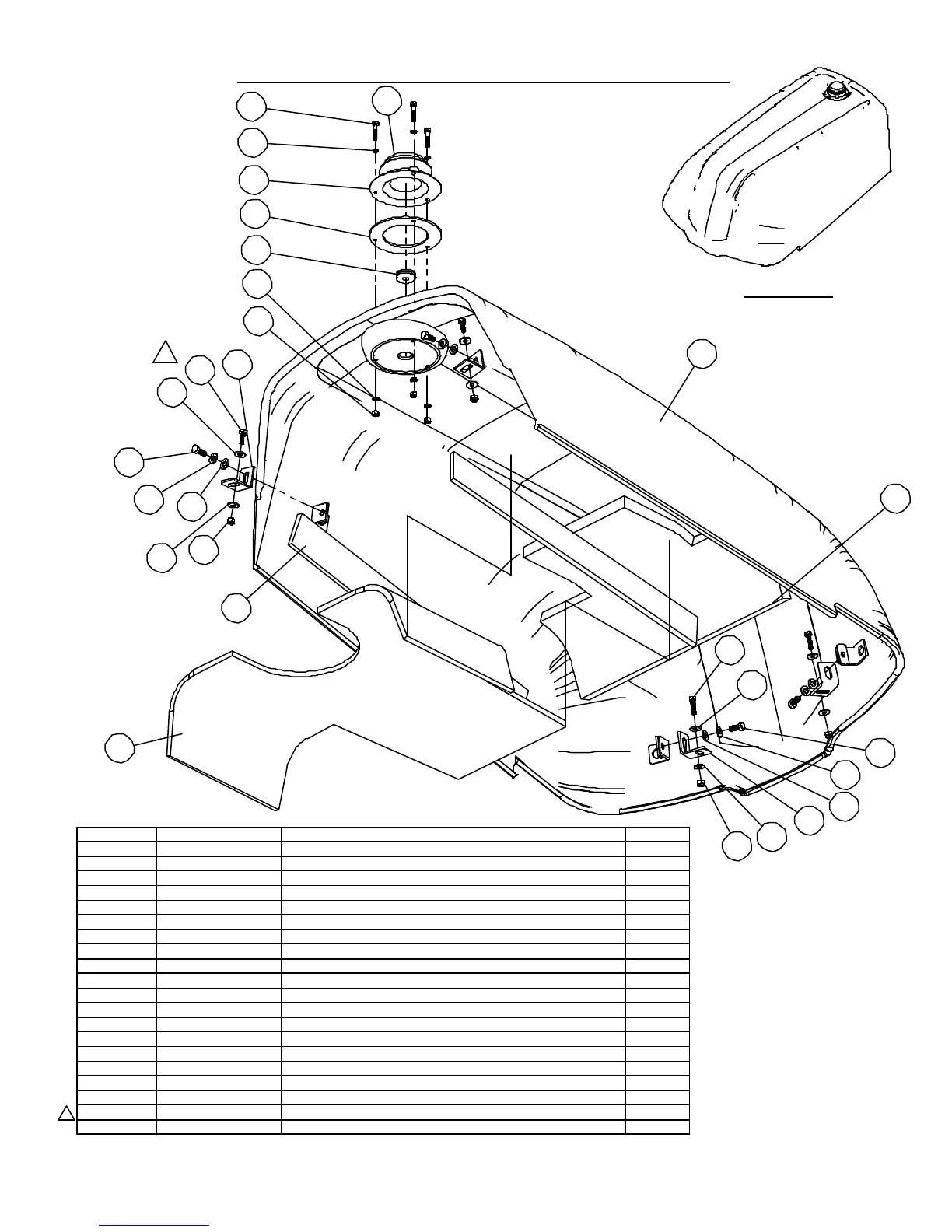

ASSEMBLY VIEW
10
9
4
6
12
7
8
2
11
Can be ordered for replacement
part or in a complete
kit, see Silent Pack Option.
(Option K67022)
Default Color for replacement
part is white. Call your reseller
for custom colors (option K66399)
Serial Number: XXXXX
Order part # 65478 (Old Hood Version)
14
13
19
1
15
16
17
3
1
18
17
16
15
1
20
3
1
18
5
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 90004 WASHER Ø 1/4" 8
2 65478 HOOD 1
3 66006 HOOD SUPPORT ANGLE 4
4 66047 FLASHING LIGHT BASE 1
5 (COMES WITH 66047) AMBER LENSE 1
6 (COMES WITH 66047) FOAM GASKET 1
7 (COMES WITH 66047) TOOTH LOCK WASHER Ø 6 m.m. 3
8 (COMES WITH 66047) HEX NUT Ø M6 - 1.25 3
9 (COMES WITH 66047) SEAL WASHER Ø M6 3
10 (COMES WITH 66047) BOLT HEX. HEAD Ø M6 - 1.25 X 75 m.m. Lg. 3
11 66290 HOOD TOP NOISE BARRIER 1
12 66220 RUBBER GROMMET Ø 3/8" 1
13 66291 HOOD SIDE NOISE BARRIER 2
14 66298 HOOD FRONT NOISE ABSORBTION PAD 1
15 90001 WASHER Ø 5/16" 4
16 90023 LOCK WASHER Ø 5/16" 4
17 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 4
18 90020 LOCK NUT Ø 1/4" - 20 UNC 4
19 90019 BOLT HEX HEAD Ø 1/4" - 20 UNC. X 5/8" Lg. 2
20 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREAD) 2
A67502 - HOOD
FIBERGLASS BODY & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
April 2003, Revision: A
