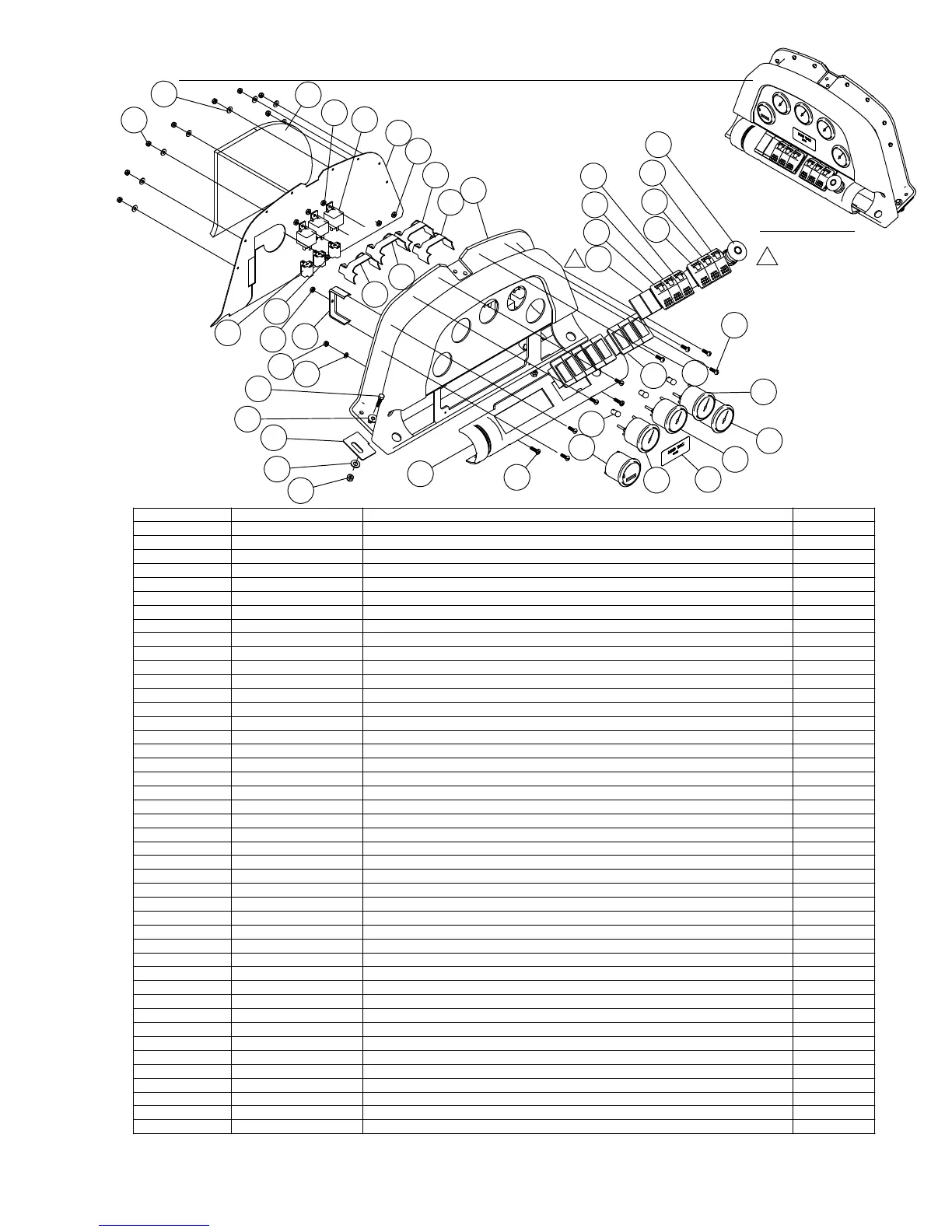

MADVAC PS300 - A67513 - Control Panel

ASSEMBLY VIEW
26
4
3
29
28
13
40
30
6
27
10
11
12
26
1
38
35
31
36
37
14
7
20
18
19
16
15
17
22
8
34
5
25
41
33
24
23
9
2
See "Electrical Wiring Diagram"
for more electrical coponents
details and electrical circuit.
45
Electrical Main Harness - 66358
See "Electrical Wiring Diagram"
for more details of connection or
troubleshooting.
46
44
21
REPLACE ITEM # 22
(DUMMY SWITCH)
BY ITEM 68009
(SWITCH HIGH SIDE DUMP)
WHEN EQUIPPED WITH
OPTION K67377
(HYDRAULIC HIGH
SIDE DUMP OPTION)
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 90005 WASHER # 10 2
2 90029 ROUND HEAD CAP SCREW # 10 - 32 UNC. X 3/4" Lg. 2
3 66262 REAR CONTROL PANEL RUBBER SHIELD 1
4 90030 WASHER # 8 8
5 90031 ROUND HEAD CAP SCREW # 8 - 32 UNC X 5/8" Lg. 8
6 6040 AUTOMOTIVE RELAY 8
7 65656 SWITCH BOARD 1
8 65781 SWITCH HOLDER (CORNER) 4
9 6059 HOURMETER GAUGE 1
10 (COMES WITH 6059) GAUGE SUPPORT 1
11 (COMES WITH 6075) GAUGE SUPPORT 1
12 (COMES WITH 6557) GAUGE SUPPORT 1
13 (COMES WITH 6512) GAUGE SUPPORT 1
14 65518 CONSOL CONTROL PANEL 1
15 65560 SWITCH WATER SPRAY 1
16 65558 SWITCH SOFT / FULL REVERSE 1
17 65555 SWITCH BRUSHES 1
18 65557 SWITCH STROBE LIGHT 1
19 65556 SWITCH HEADLIGHTS 1
20 65561 SWITCH HORN 1
21 26505 EMERGENCY STOP BUTTON 1
22 66117 DUMMY SWITCH 2
23 6075 FUEL GAUGE 1
24 6557 OIL PRESSURE GAUGE 1
25 6512 WATER TEMPERATURE GAUGE 1
26 90006 LOCK NUT # 10 - 32 UNF 10
27 (COMES WITH 6059) NUT # 10 - 24 UNC. 1
28 (COMES WITH 6512) NUT #10 - 24 UNC 2
29 (COMES WITH 6557) NUT #10 - 24 UNC 2
30 (COMES WITH 6075) NUT #10 - 24 UNC 2
31 66592 ADJUSTABLE CONTROL PANEL BRACKET LEFT 1
32 66874 ADJUSTABLE CONTROL PANEL BRAKET RIGHT 1
33 67194 DECAL FACIA MADVAC PS300 1
34 65782 SWITCH HOLDER (MIDDLE) 4
35 90004 WASHER Ø 1/4" 2
36 90001 WASHER Ø 5/16" 2
37 90020 LOCK NUT Ø 1/4" - 20 UNC 2
38 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREAD) 2
39 (COMES WITH 6067) NUT # 10 - 24 UNC. 2
40 (COMES WITH 6567) GAUGE SUPPORT 1
41 6067 AMMETER GAUGE 1
44 66293 REAR CONTROL PANEL NOISE BARRIER 1
45 26297 PLUG-IN BASE FOR RELAY 3
46 26041 GAUGE ILLUMINATING LIGHT 4
A67513 - CONTROL PANEL
CONTROL PANEL, SWITCHES & FIXATION BRACKETS FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
August 2003, Revision: A
