MADVAC PS300 - A67855 - Towing Arm Assembly (Option K67020)

4
10
8
3
1
2
6
5
11
7
9
14
13
12
15
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67646 TOWING ARM WELDMENT 1
2 67859 CLAMP BALL HITCH 1
3 67857 THREADED ROD HITCH 1
4 60910 ADJUSTING KNOB 1
5 67858 GUIDE BLOCK HITCH 1
6 67861 SPRING 1
7 90020 LOCK NUT Ø 1/4" - 20 UNC 1
8 90441 WASHER Ø 1/2" 1
9 67863 SPRING 1
10 90010 HEX. NUT Ø 1/2" - 13 UNC. 1
11 90241 WASHER 9/32" X 1-1/4" 1
12 67651 EXTERIOR COLLAR 1
13 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 4
14 90678 CHAIN LINK QUICK CONNECTING 1
15 67652 INTERIOR COLLAR 1

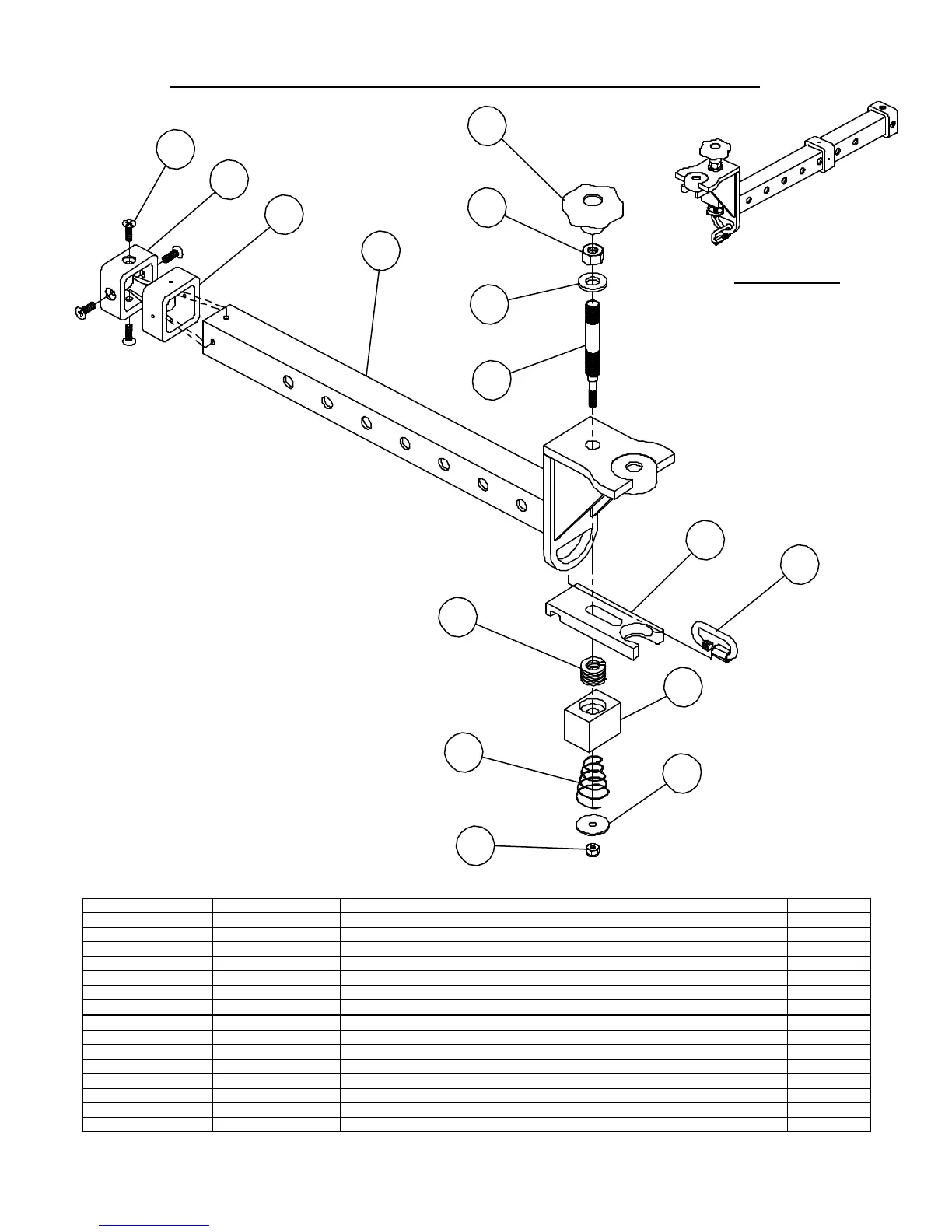

ASSEMBLY VIEW
A67855 - TOWING ARM ASSEMBLY (OPTION K67020)
TOWING ARM ASSEMBLY FOR PS300 EQUIPPED WITH DELUXE SEAT OPTION K67020
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: ---
