MADVAC PS300 - Page 82

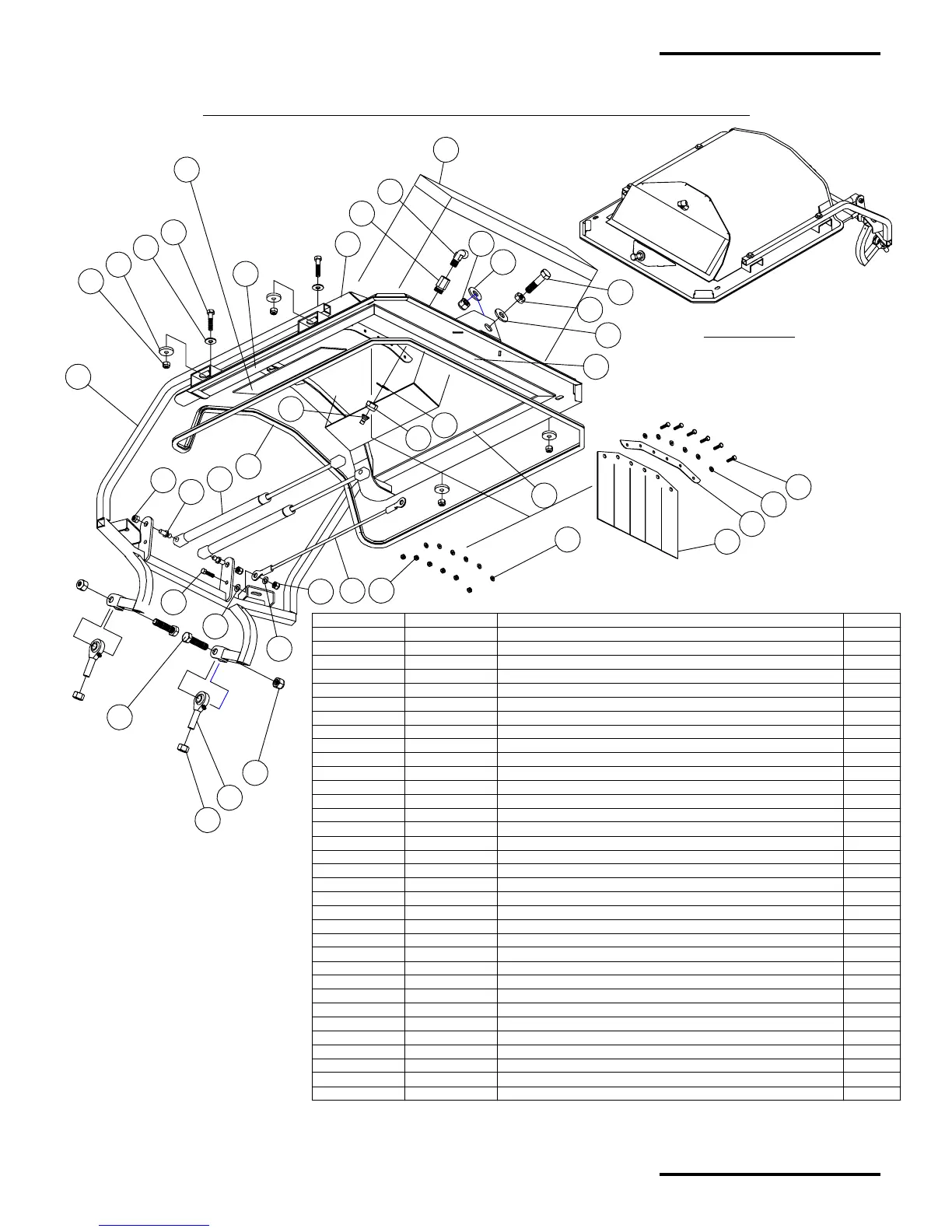

ASSEMBLY VIEW
21
28
27
29
22
22
17
15
13
2
3
13
14
17
18
19
16
6
9
34
10
11
12
11
6
31
26
24
25
20
32
33
30
8
7
4
6
1
5
Can be ordered as replacement
part or in a complete
kit, see Silent Pack Option.
(Option K67022)
Can be ordered as replacement
part or in a complete
kit, see Silent Pack Option.
(Option K67022)
23
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65039 COVER 1
2 65507 TRASH DEFLECTOR RETAINER 1
3 65707 TRASH DEFLECTOR 1
4 65968 WASHER 4
5 65427 COVER PIVOT FRAME 1
6 90000 LOCK NUT Ø 5/16" - 18 UNC. 7
7 90001 WASHER Ø 5/16" 4
8 90002 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 1-1/2" Lg. 4
9 66120 BALL STUD 2
10 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREADS) 1
11 90004 WASHER Ø 1/4" 2
12 66170 RETAINING CABLE 1
13 90005 WASHER # 10 12
14 90006 LOCK NUT # 10 - 32 UNF 6
15 90007 BOLT HEX. HEAD # 10 - 32 UNF. X 3/4" Lg. 6
16 90008 BOLT HEX. HEAD Ø 1/2" - 13 UNC. X 2-1/2" Lg. 2
17 90009 LOCK NUT Ø 1/2" - 13 UNC. 3
18 3203 ROD END Ø 1/2" 2
19 90010 HEX. NUT Ø 1/2" - 13 UNC. 2
20 66316 ANTI VIBRATION PAD # 2 2
21 66299 FAN NOISE ABSORBTION PAD 1
22 90011 WASHER Ø 1/2" AA 2
23 90270 JUM NUT Ø 1/2" X 13 UNC 1
24 65854 WATER SPRAY NOZZLE TIP RETAINER 1
25 65855 WATER SPRAY NOZZLE TIP 1
26 67417 EXTERNAL RETAINING RING 1
27 66657 NOZZLE BODY 1
28 66658 ADAPTOR WATER 90° 1
29 90014 BOLT HEX. HEAD Ø 1/2" - 13 UNC X 2" Lg. 1
30 67505 FOAM TRIM 1" X 1/8" Thk. 1
31 66423 TRIM SEAL 1
32 67505 FOAM TRIM 1" X 1/8" Thk. 1
33 67505 FOAM TRIM 1" X 1/8" Thk. 1
34 65727 GAZ SPRING 2
A67503 - VACUUM COVER
VACUUM COVER AND COVER PIVOT FRAME ASSEMBLY FOR ALL SERIAL NUMBER
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
VA-5
Vacuum Section
