11
8
14
9
11
10
13
7
12
3
6
1
3
2
4
5
15
18
17
16
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67549 FRAME ASSEMBLY 1
2 65502 WANDERHOSE ELBOW 1
3 8566 CLAMP HOSE Ø 5-1/4" 2
4 90051 BOLT HEX. HEAD Ø 1/4" X 20 UNC. X 1/2" Lg. 3
5 90018 LOCK WASHER Ø 1/4" 3
6 65746 WANDERHOSE Ø 4" 1
7 65623 TELESCOPING WANDERHOSE SUPPORT 1
8 65617 WANDERHOSE HANDLE 1
9 90105 SPRING PIN 1
10 65620 STROKE LIMITER 1
11 65734 FOAM LONG WANDERHOSE 2
12 64717 WANDERHOSE RUBBER END 1
13 65629 SPRING WANDERHOSE 1
14 65735 FOAM SHORT WANDERHOSE 1
15 67140 OPTIONAL PORT CLOSING PLATE 1
16 62544 VACUATOR VALVE ID 1 1
17 90006 LOCK NUT # 10 - 32 UNF 3
18 90146 SCREW ROUND HEAD SQUARE DRIVE 10-32 X 1/2" g 3

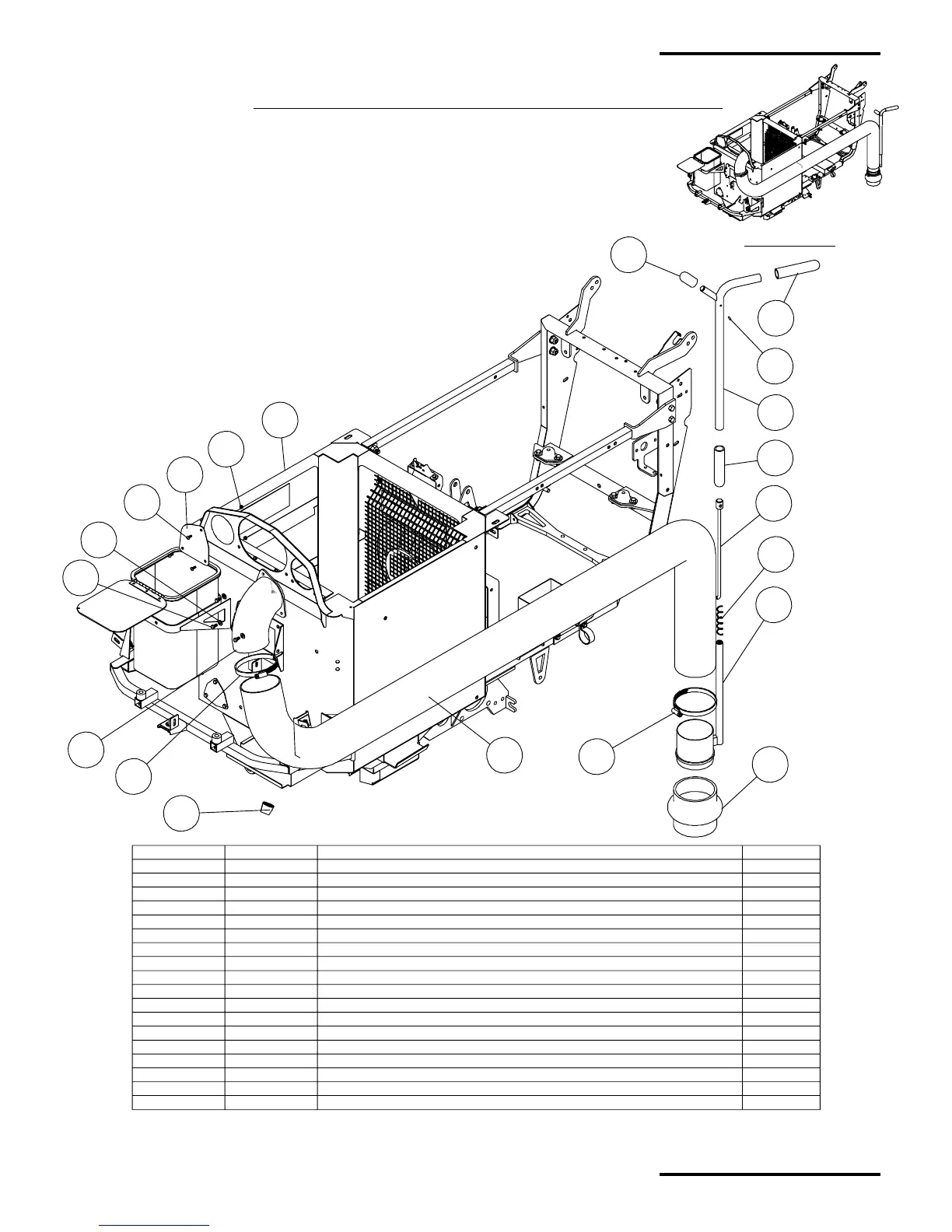

ASSEMBLY VIEW
A67591 - VACUUM WANDERHOSE OPTION
VACUUM WANDERHOSE OPTION FOR ALL EQUIPED SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
VA-6
Vacuum Section
