MADVAC PS300 - Page 78

16
15
32
33
1
33
31
30
30
2
34
20
22
3
6
5
4
21
25
13
14
10
7
8
23
19
23
22
20
18
11
12
28
9
27
29
26
TO
SWIVEL
BEAM
17
36
35
24
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67353 UPPER NOZZLE ARM 1
2 67355 LOWER NOZZLE ARM 1
3 67352 NOZZLE SUPPORT 1
4 67350 NOZZLE SKATE 1
5 67327 NOZZLE 1
6 67434 RUBBER MOUNT 4
7 66257 THREADED ROD Ø 1/2" - 13 UNC. X 4-1/2" Lg. 1
8 60910 ADJUSTING KNOB 1
9 67361 PIVOT LEG 1
10 67365 STOPPER ASSY 1
11 65135 TOP PANEL BUSHING 1
12 67371 SPRING PS 300 NOZZLE 1
13 67425 SKID PAD LEFT 1
14 67578 SKID PAD RIGHT 1
15 67430 PULL ROD 1
16 67431 PULL ROD BRACKET 1
17 67433 NOZZLE REINFORCEMENT 1
18 65530 NOZZLE ARM PIVOT 2
19 65745 SUCTION HOSE 7" 1
20 90020 LOCK NUT Ø 1/4" - 20 UNC 9
21 90900 CARRIAGE BOLT Ø 1/4" - 20 UNC. X 1" Lg. 5
22 90018 LOCK WASHER Ø 1/4" 9
23 66498 CLAMP HOSE 7" 2
24 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 3
25 90874 ROUND HEAD CAP SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 2
26 67078 NYLON WASHER Ø 3/8" X 1/16" Thk. 4
27 90093 NUT Ø 3/8" - 16 UNC. 1
28 90067 BOLT HEX HEAD Ø 3/8" - 16 UNC X 1-1/2" Lg. 1
29 90065 LOCK WASHER Ø3/8 1
30 90010 HEX. NUT Ø 1/2" - 13 UNC. 4
31 3203 ROD END Ø 1/2" 2
32 90006 LOCK NUT # 10 - 32 UNF 2
33 65426 BUSHING PARALLEL SPACER 8
34 65758 BRONZE FLANGE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 3/4" Lg. 2
35 90013 LOCK WASHER Ø 1/2" 2
36 90005 WASHER # 10 2

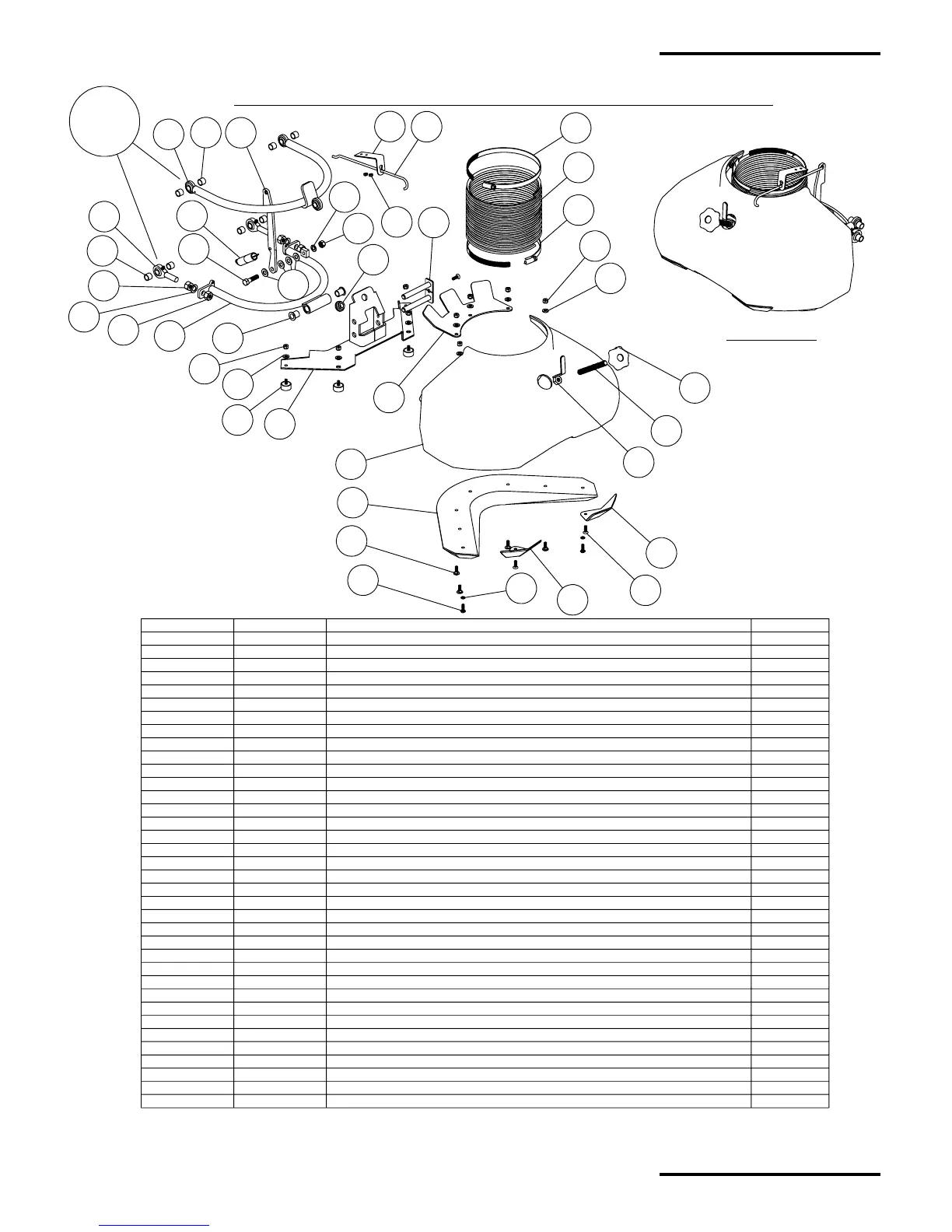

ASSEMBLY VIEW
A67470 - NOZZLE
NOZZLE WITH MANUAL UP AND DOWN MECHANISIM FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
January 2003, Revision: A
VA-1
Vacuum Section
