ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 46753 PILOT OPERATED CHECK VALVE 2
3 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
4 4595 HYDRAULIC FITTING STRAIGHT (ORB-04/JIC-04) 1
5 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 5
6 67332 HYD. FITTING 45° (O-Ring Boss-04/JIC-04) 3
7 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
8 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
9 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 1
10 46773 RELIEF VALVE 1 GPM 1
11 (COME WITH 67305) JAM NUT 2
12 67305 HYDRAULIC VALVE ELECTRIC COIL 4
13 67305 SOLENOÏDE VALVE 2

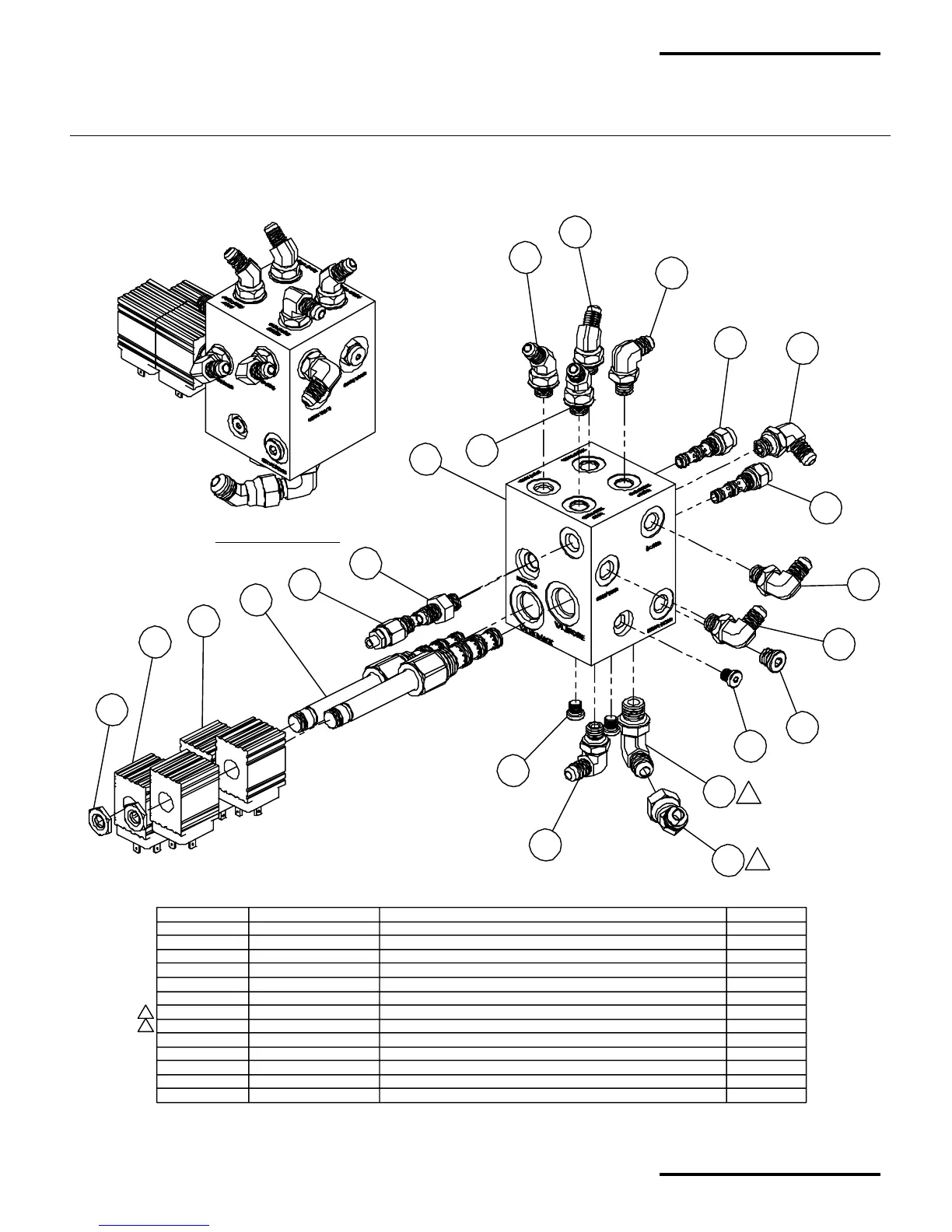

ASSEMBLY VIEW
A67807 - HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY
FOR PS300 WITH ALL HYDRAULICS OPTIONS AVAILABLE
OPTION HYDRAULIC WANDERHOSE SHUT-OFF (OPTION K67278)
OPTION HYDRAULIC RAISE/LOWER BRUSHES & NOZZLE (OPTION K67279)
OPTION HYDRAULIC SIDE DUMP (OPTION K67377)
MadVac Inc.
PS300 Operator's & Parts Manual
February 2003, Revision: A
HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY FOR PS300 EQUIPPED WITH ALL AVAILABLE HYDRAULICS OPTIONS
HY-16
Hydraulics Section
