ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 46753 PILOT OPERATED CHECK VALVE 2
3 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
4 4595 HYDRAULIC FITTING STRAIGHT (ORB-04/JIC-04) 1
5 67332 HYD. FITTING 45° (O-Ring Boss-04/JIC-04) 2
6 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 4
7 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
8 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
9 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 3
10 46773 RELIEF VALVE 1 GPM 1
11 (COME WITH 67305) JAM NUT 2
12 67305 HYDRAULIC VALVE ELECTRIC COIL 4
13 67305 SOLENOÏDE VALVE 2

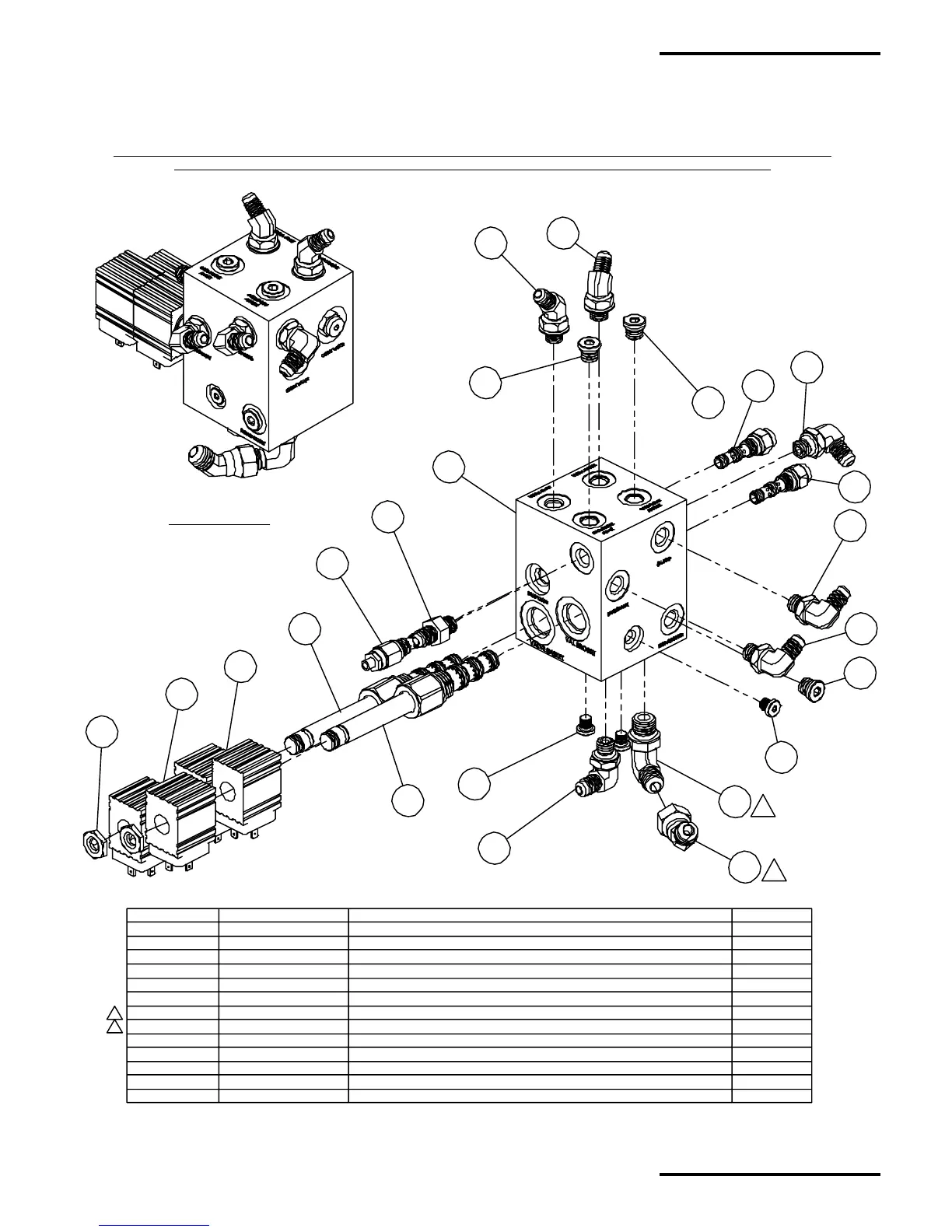

ASSEMBLY VIEW
A67806 - HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY FOR
PS300 WITH OPTION RAISE/LOWER BRUSHES & NOZZLE (OPTION K67279)
& OPTION HYDRAULIC SIDE DUMP (OPTION K67377)
HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY FOR PS300 EQUIPPED WITH OPTION RAISE/LOWER
BRUSHES & NOZZLE (OPTION K67279) & OPTION HYDRAULIC SIDE DUMP (OPTION K67377)
