MADVAC PS300 - Page 135

(OTHER CONFIGURATION ON FOLLOWING DRAWINGS)
ALL FITTINGS MUST BE PRE-OILLED BEFORE ASSEMBLY

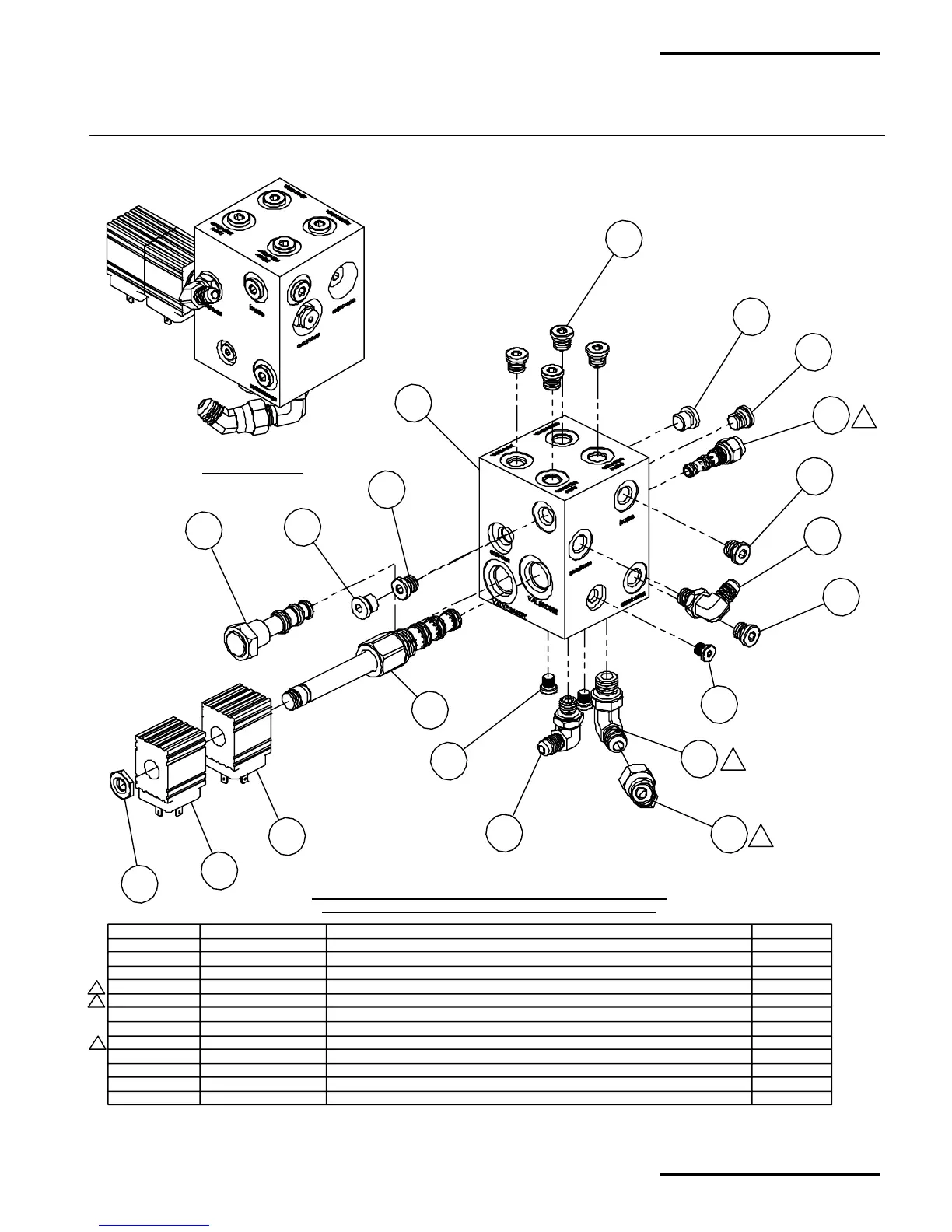

ASSEMBLY VIEW
6
7
6
8
6
6
3
2
4
5
3
2
9
7
6
11
12
12
10
1
A
A
A
A
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
3 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 2
4 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
5 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
6 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 8
7 67783 HYD. FITTING PORT PLUG (O-Ring Boss-04) 2
8 46753 PILOT OPERATED CHECK VALVE 1
9 67788 PORT PLUG 1
10 (COME WITH 67305) JAM NUT 1
11 67305 SOLENOÏDE VALVE 1
12 67305 HYDRAULIC VALVE ELECTRIC COIL 2
A67778 - HYDRAULIC MANIFOLD (NEW VERSION)
PRE-ASSEMBLY FOR PS300 WITHOUT ANY HYDRAULICS OPTIONS
HYDRAULIC MANIFOLD (NEW DESIGN) PRE-ASSEMBLY FOR PS300 WITHOUT ANY HYDRAULICS OPTIONS (BASE MODEL)
MadVac Inc.
PS300 Operator's & Parts Manual
February 2003, Revision: A
HY-9
Hydraulics Section
