MADVAC PS300 - Page 136

ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
3 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 3
4 67332 HYD. FITTING 45° (O-Ring Boss-04/JIC-04) 1
5 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
6 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 6
7 67783 HYD. FITTING PORT PLUG (O-Ring Boss-04) 3
8 67788 PORT PLUG 1
9 (COME WITH 67305) JAM NUT 1
10 67305 SOLENOÏDE VALVE 1
11 67305 HYDRAULIC VALVE ELECTRIC COIL 2
12 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1

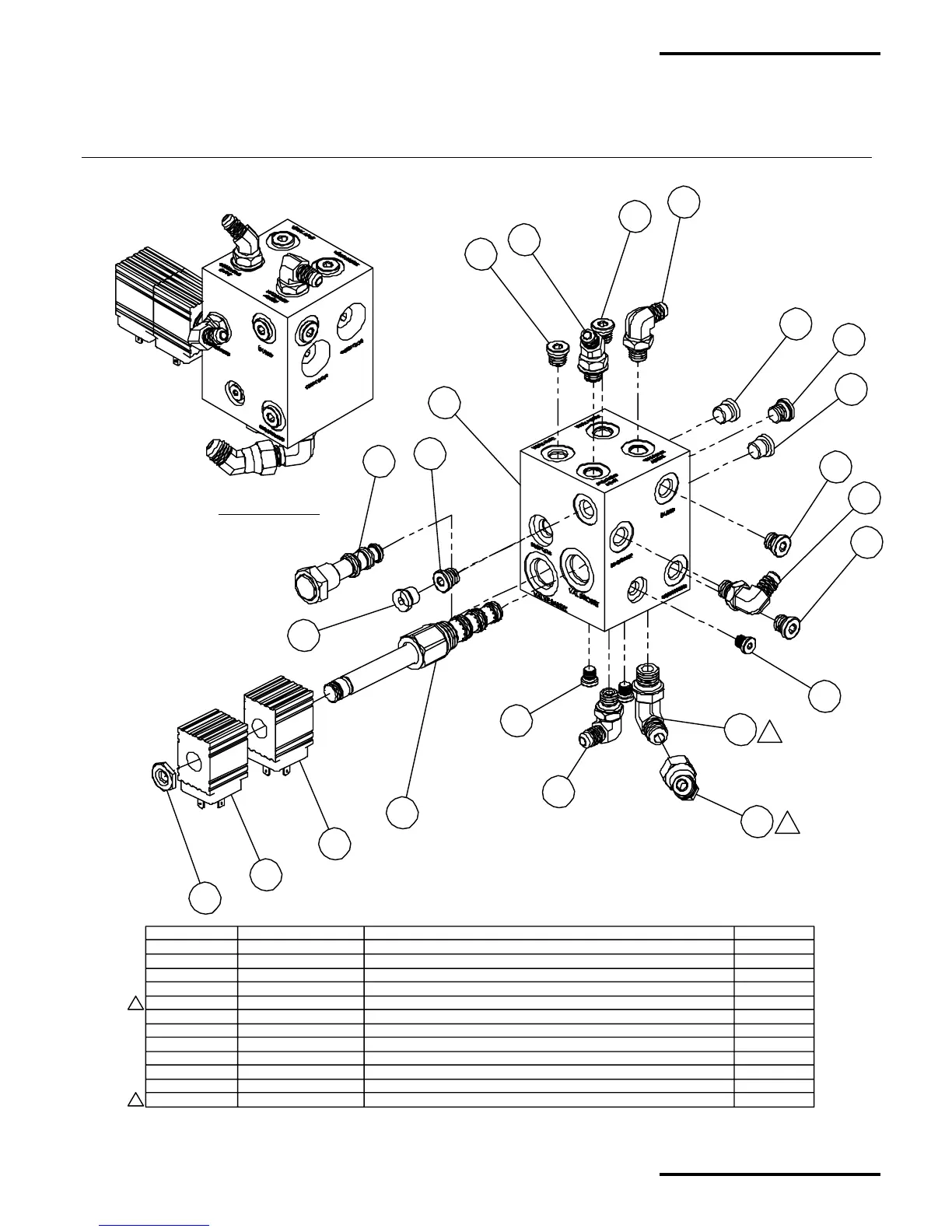

ASSEMBLY VIEW
3
6
6
4
6
7
7
6
3
6
2
2
5
12
3
1
9
11
11
10
8
7
6
A
A
A
A
A67801 - HYDRAULIC MANIFOLD (NEW VERSION)
PRE-ASSEMBLY FOR PS300 WITH HYDRAULIC
WANDERHOSE SHUT-OFF(OPTION K67278)
HYDRAULIC MANIFOLD (NEW DESIGN) PRE-ASSEMBLY FOR PS300 WITH HYDRAULIC WANDERHOSE SHUT-OFF OPTION
MadVac Inc.
PS300 Operator's & Parts Manual
February 2003, Revision: A
HY-10
Hydraulics Section
