MADVAC PS300 - Page 137

8
9
5
2
5
5
8
3
6
7
3
5
12
13
13
11
10
4
9
1
A
A
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 46753 PILOT OPERATED CHECK VALVE 1
3 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
4 4595 HYDRAULIC FITTING STRAIGHT (ORB-04/JIC-04) 1
5 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 4
6 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
7 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
8 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 5
9 67783 HYD. FITTING PORT PLUG (O-Ring Boss-04) 2
10 67788 PORT PLUG 1
11 (COME WITH 67305) JAM NUT 1
12 67305 SOLENOÏDE VALVE 1
13 67305 HYDRAULIC VALVE ELECTRIC COIL 2

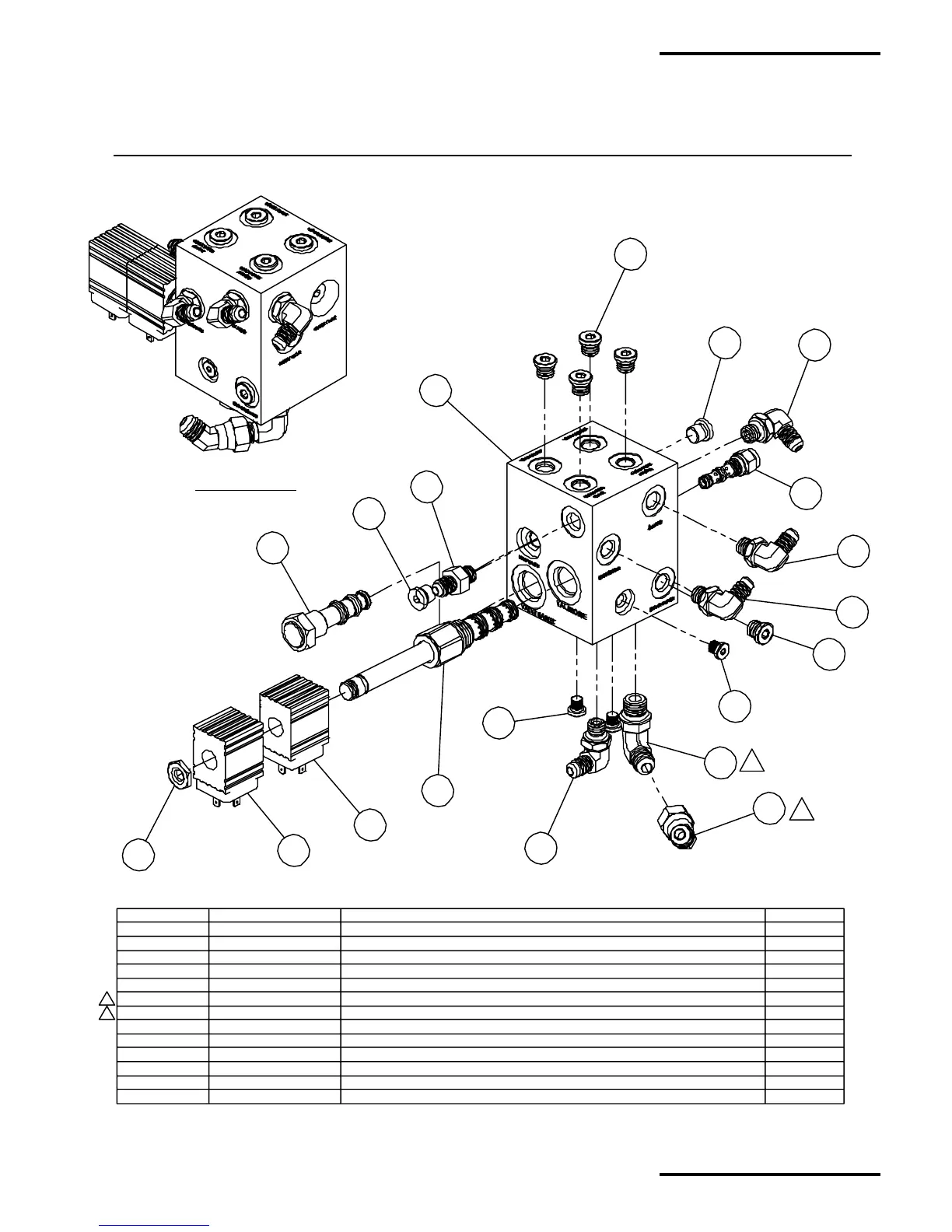

ASSEMBLY VIEW
A67802 - HYDRAULIC MANIFOLD (NEW VERSION)
PRE-ASSEMBLY FOR PS300 WITH HYDRAULIC
RAISE / LOWER BRUSHES AND NOZZLE (OPTION K67279)
HYDRAULIC MANIFOLD (NEW DESIGN) PRE-ASSEMBLY FOR PS300 WITH HYDRAULIC RAISE/LOWER BRUSHES AND NOZZLE OPTION
MadVac Inc.
PS300 Operator's & Parts Manual
February 2003, Revision: A
HY-11
Hydraulics Section
