MADVAC PS300 - Page 138

4
4
8
8
2
2
8
1
3
8
8
5
3
5
6
7
8
9
12
11
11
10
A
A
A
A
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67744 HYDRAULIC OPTION MANIFOLD BLOCK 1
2 46753 PILOT OPERATED CHECK VALVE 2
3 17108 HYD. FITTING PORT PLUG (O-Ring Boss-02) 3
4 67332 HYD. FITTING 45° (O-Ring Boss-04/JIC-04) 2
5 4412 HYD. FITTING 90° (O-Ring Boss-04/JIC-04) 2
6 4420 HYD. FITTING 90° (O-Ring Boss-06/JIC-06) 1
7 4294 HYD. FITTING 45° (Female JIC-06/Male JIC-06) 1
8 14000 HYD. FITTING PORT PLUG (O-Ring Boss-04) 6
9 46773 RELIEF VALVE 1 GPM 1
10 (COME WITH 67305) JAM NUT 2
11 67305 HYDRAULIC VALVE ELECTRIC COIL 4
12 67305 SOLENOÏDE VALVE 2

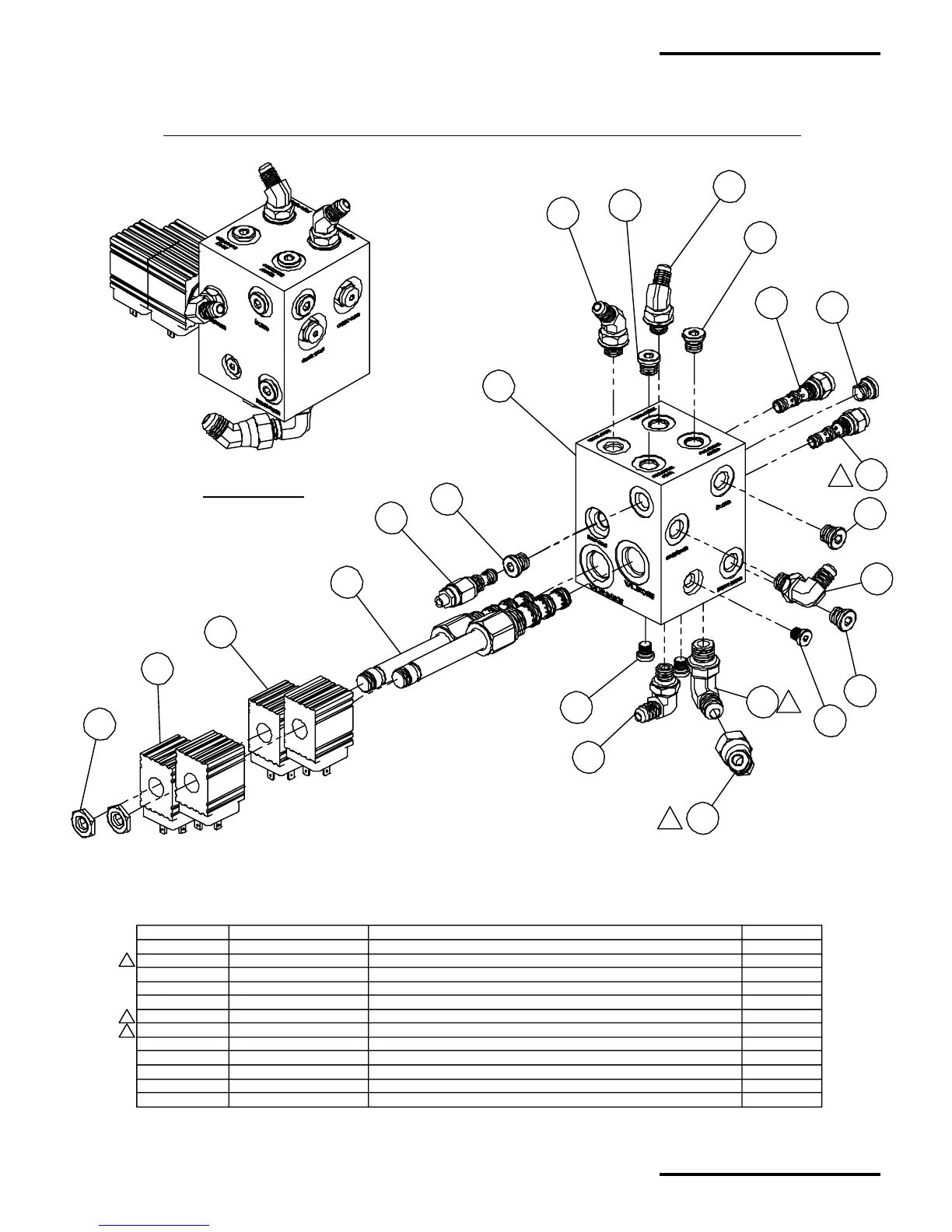

ASSEMBLY VIEW
A67803 - HYDRAULIC MANIFOLD (NEW VERSION) PRE-ASSEMBLY
FOR PS300 WITH HYDRAULIC SIDE DUMP (OPTION K67377)
HYDRAULIC MANIFOLD (NEW DESIGN) PRE-ASSEMBLY FOR PS300 WITH HYDRAULIC SIDE DUMP (OPTION K67377)
MadVac Inc.
PS300 Operator's & Parts Manual
February 2003, Revision: A
HY-12
Hydraulics Section
