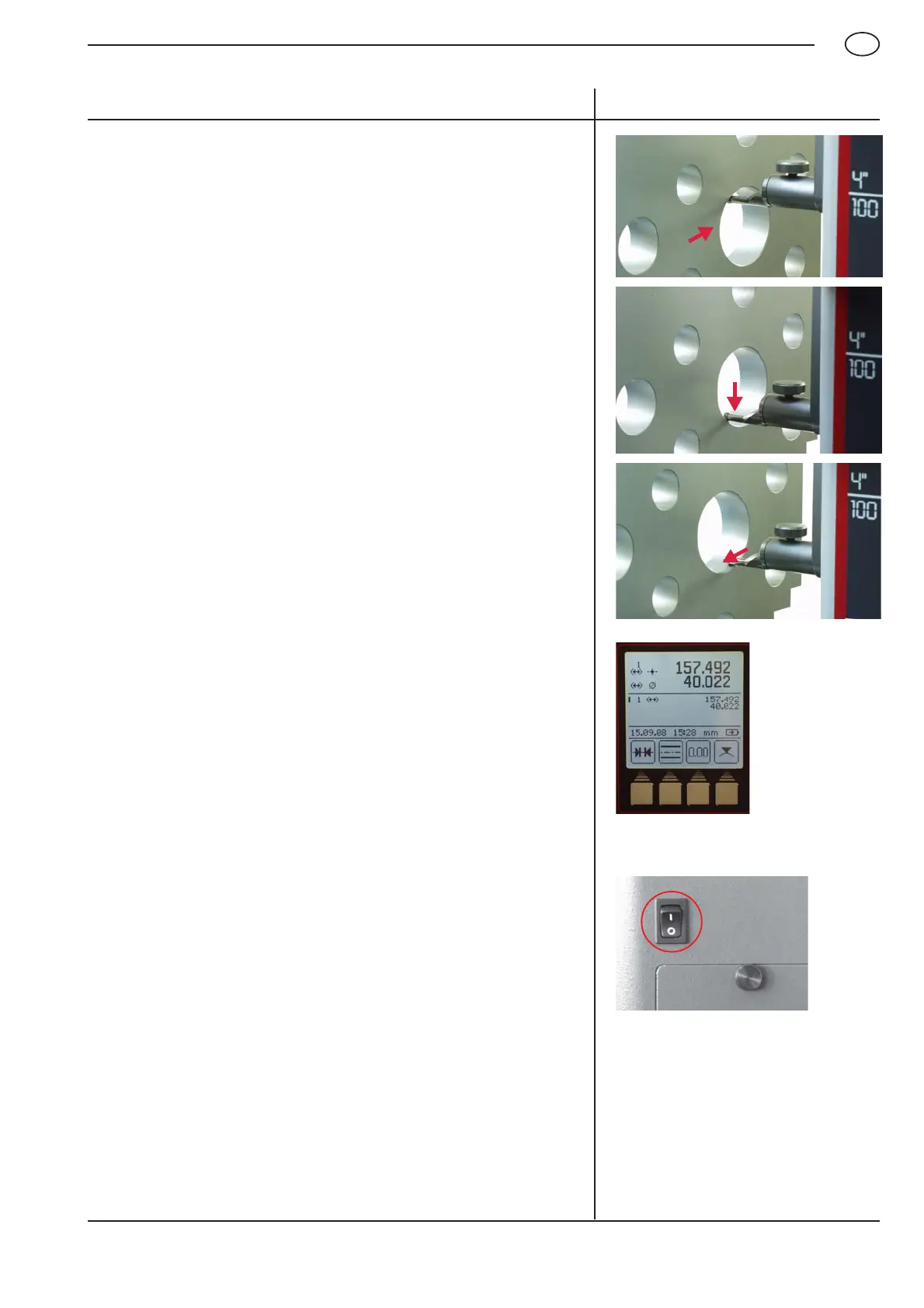

Description / Sequence Symbols / Pictures
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / maximum
– Acceptance of the reversal point will be confirmed by an acoustic
signal (beep)
– The probe will automatically travel downwards; the bore is
contacted from above.
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / minimum
– An acoustic signal will be emitted confirming acceptance of the
reversal point; the results (center and diameter) will appear in the
display.
2.5 Switching OFF
– The mains power supply switch can be found at the rear of the
height measuring instrument
Switch the mains power supply to OFF = (0)
