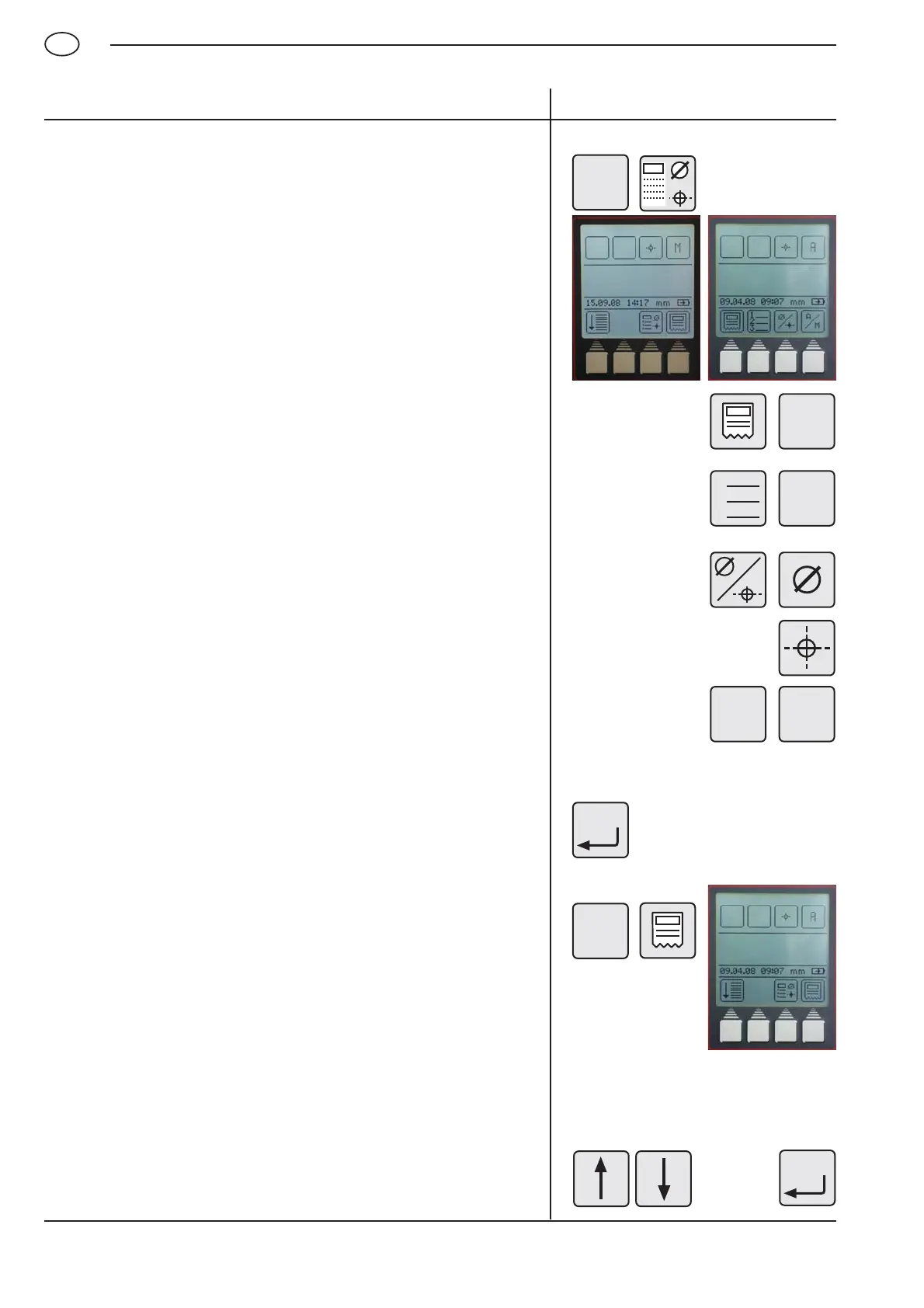

Description / Sequence Symbols / Pictures
5.1.4 Select measured data
– Press the function key „Select measured data“
Actual settings will be shown in the display
– Transmit the record header: ON or OFF
– Transmit the measurement numbers: ON or OFF
– Switch between:
– Diameter
– Coordinate
– Diameter and coordinate
– Switch between automatic / manual data transmission
A means that after measurement, the measured value will
automatically be transmitted.
M means that the DATA key has to be pressed to send a value.
– To confirm selection, press the „Accept“ key
Record header
ON OFF
Measurement
number
ON OFF
Diameter/
Coordinate
Manual / Auto.
Data transmission
M
A
1
2
3
5.1.5 Create a record header
– To create a header press the „Record header“ key
The record header consists of 2 blocks:
1. Two predetermined and permanent rows, these are:
DIGIMAR 816CL V 1.3A
09.10.08 09:07
This is only visual when printed
2. Four freely available rows, which are made up of 18 characters
– Select the row with the „Cursor“ key and confirm with the
„Accept“ key
DA TA
DA TA
