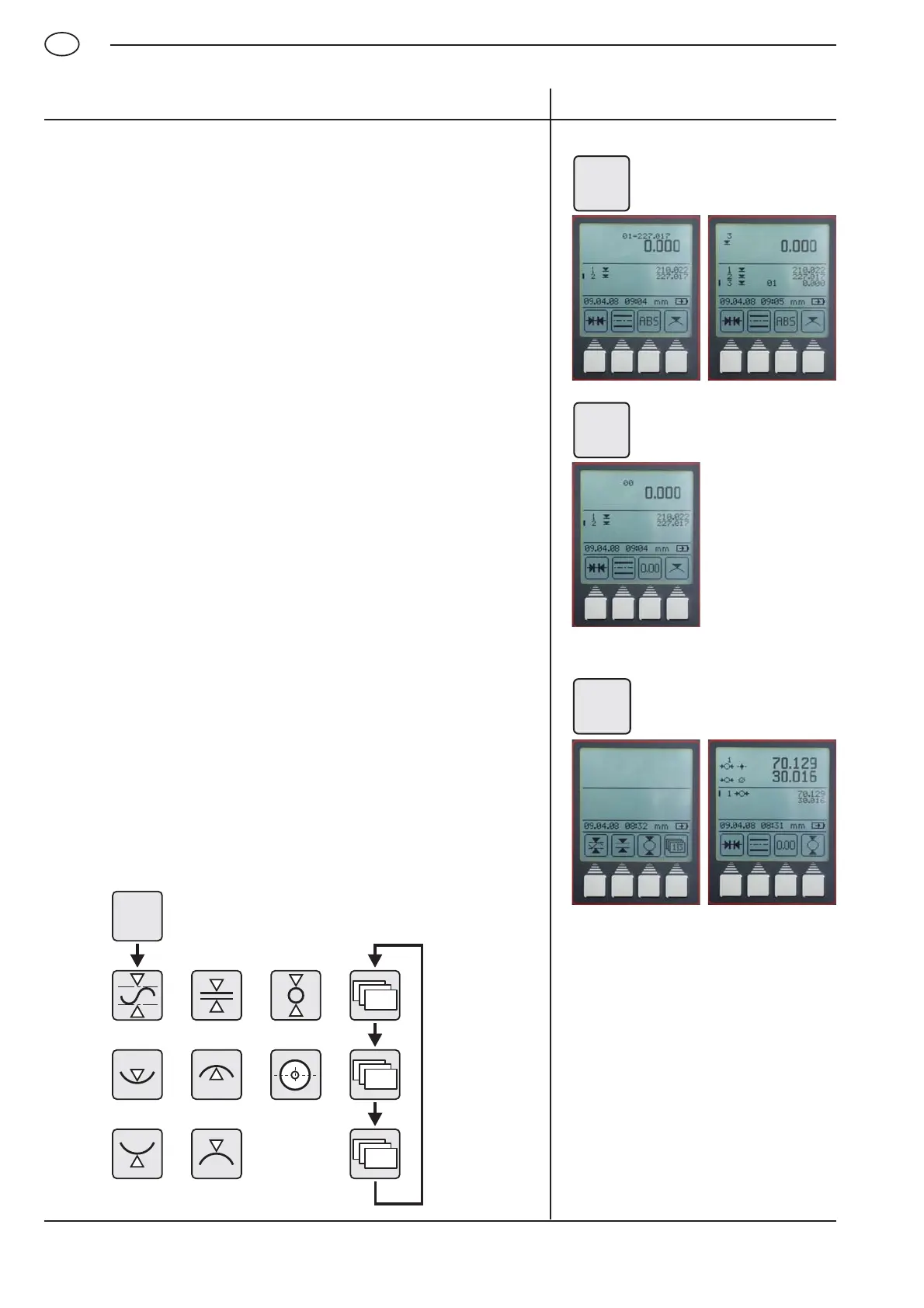

3.4.3 Relative / Absolute zero point
With this function a new zero point can be set relative to the base plate
– Press the function key „Set zero point“, the last measured
characteristic / value will be shown in the display as
Work piece-zero point 01. In this example, as dimension 227.017
– Once again contact the surface with dimension 227.017
All the measuring results are marked with 01 in the display that refer to
the relative zero point
– By pressing the function key „ABS“ the zero point will change
back to zero point on the base plate
The function key „0.00“ will reappear. All further measurements will be
in relation to the base plate. The display symbol 00 will only appear
once in the upper display field.
3.4.4 FCT-Function keys
– Press the „FCT“ key on the keypad
In this menu 8 more measuring functions can be selected.
When a function has been selected, this function will allocated to the
fourth function key in the measuring menu. This function remains until a
new function is selected. Therefore, those functions that are regularly
used can be activated by pressing one key.
0,00
FCT
7
1|3
2|3
3|3
FCT
ABS
