Mahr Digimar 816 CL User Manual

34
Mahr GmbH • Digimar 816 CL
EN
Description / Sequence Symbols / Pictures

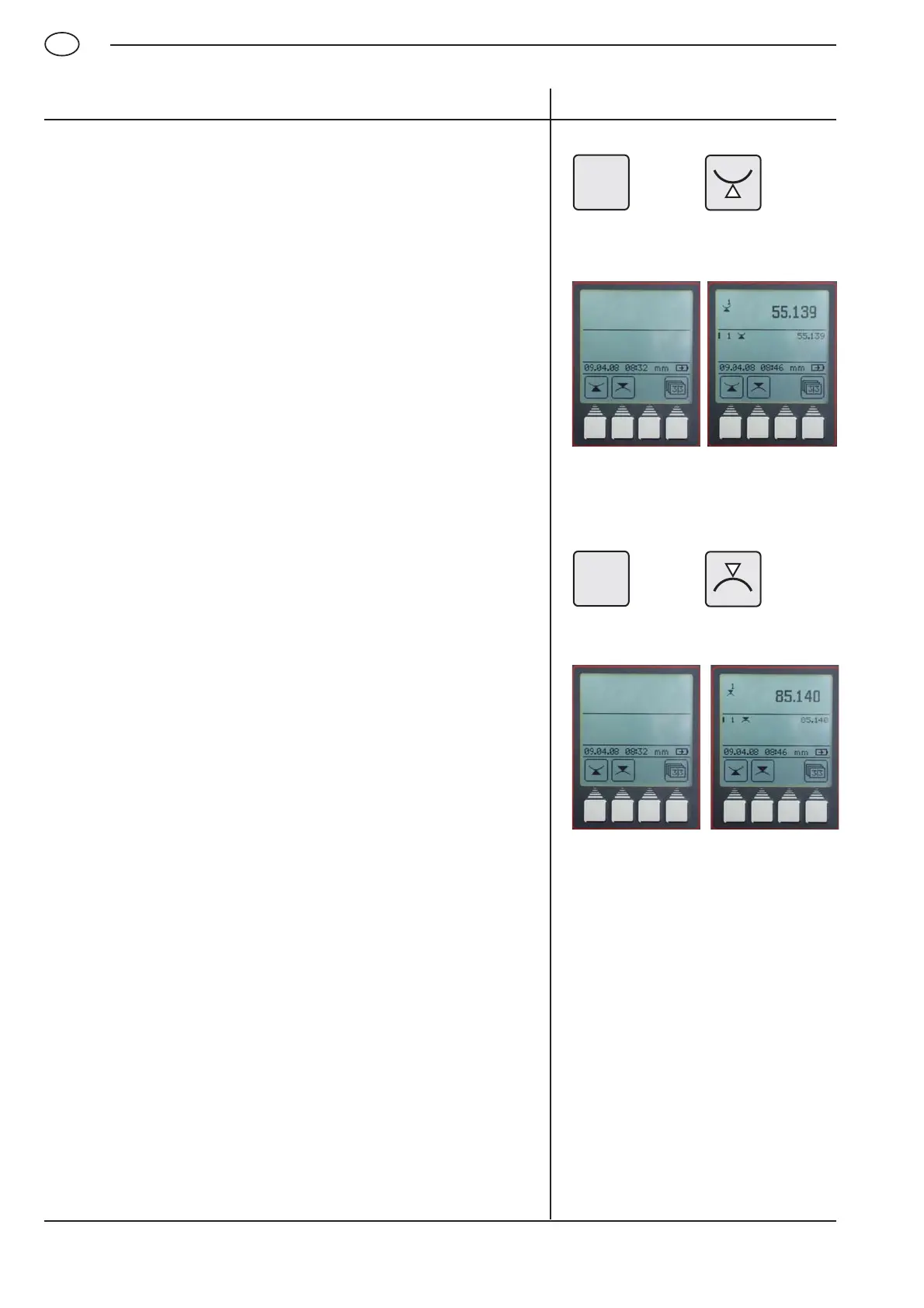

3.4.4.7 Contacting a shaft from below
– Position the probe eccentrically
– Press the „FCT“ key on the keypad and then the function key
„Contact a shaft from below“
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / minimum, the acoustic signal
will confirm acceptance
– The minimum of the shaft will be shown in the display.
3.4.4.8 Contacting a shaft from above
– Position the probe eccentrically
– Press the „FCT“ key on the keypad and then the function key
„Contact a shaft from above“
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / maximum, the acoustic signal
will confirm acceptance
– The maximum of the shaft will be shown in the display.
and
and
FCT
7
FCT
7
