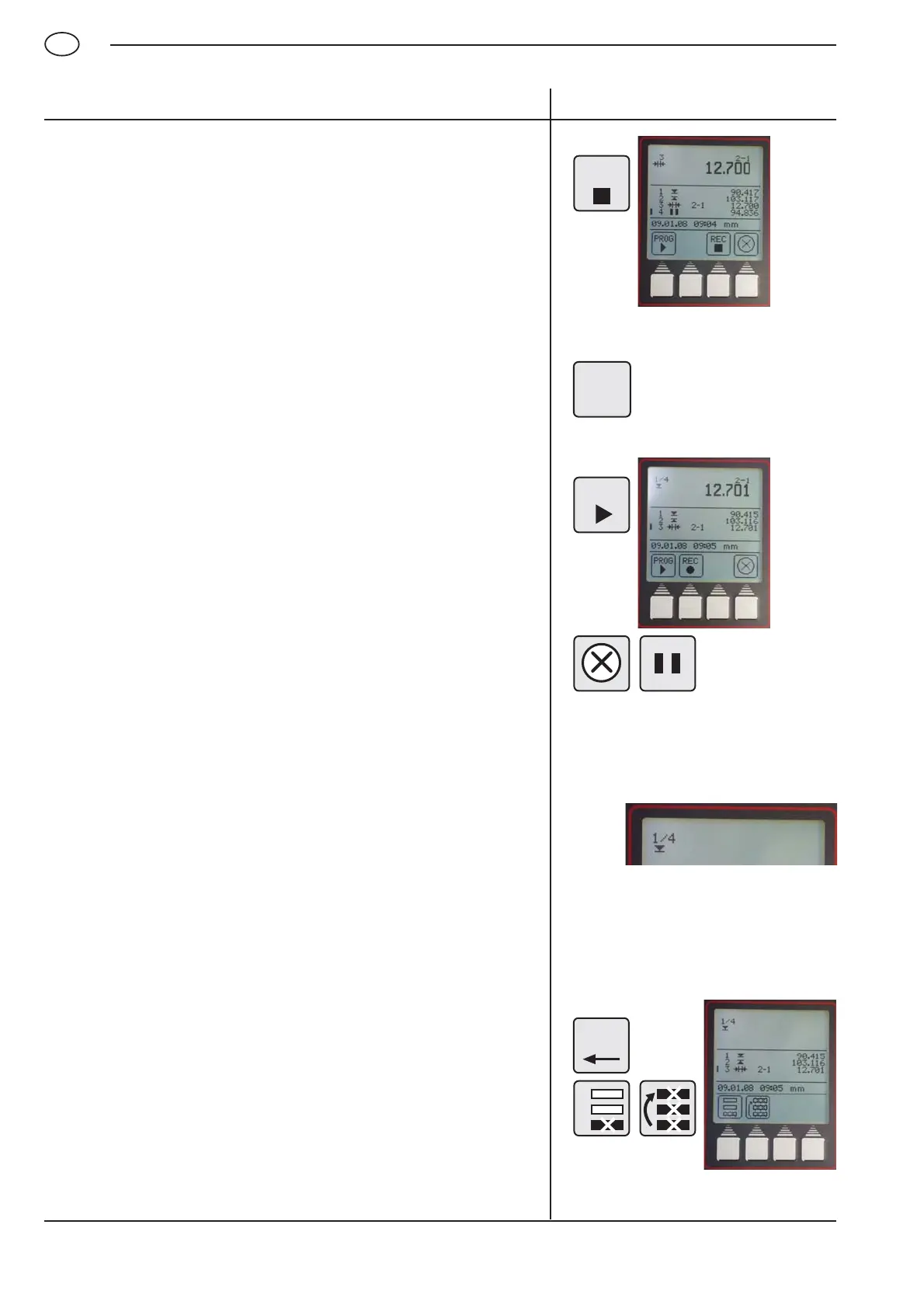

6.2 Start a measuring program
When starting a measuring program a reference for the positioning of
the zero point will be set on the base plate. This can be anywhere.
Before starting the program, position the work piece
– Press the „Start program“ key
– The height measuring instrument will automatically travel to the
stored measuring steps
– The program can at anytime be aborted by pressing „Cancel“ key
or can be halted or stopped with the „Pause“ key.
Note:
A distance or symmetry calculation is only possible, when the last 2
values in the measured value list are position values (not a distance
vakue and not a Max or Min value).
Exception: In the measuring program Pause and DATA for the
calculation are ignored, i.e. it is not included in the list, for example:
1 Bore 1
2 Pause
3 Bore 2
the symmetry of both bores (Bore 1 and Bore 2) are calculated.
– Should a measurement be deleted during the programming
– Press „CE“ and either the last or all measured values will be
deleted.
REC
– Press the „PROG“ key
– To store the measuring program, press the „Save program “ key.
PROG
8
Measurement 1 from 4 = 1/4
To Next Page
