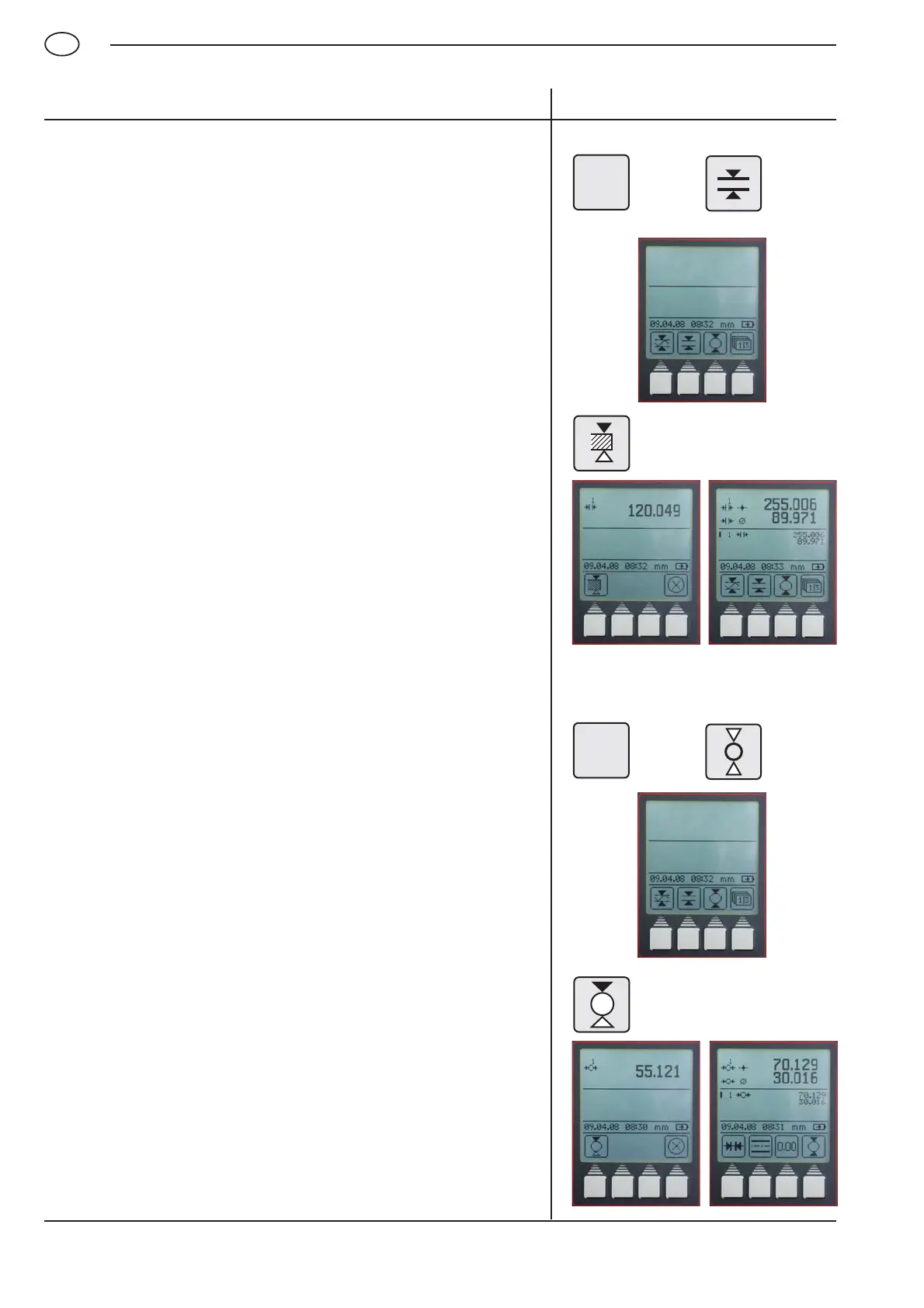

3.4.4.2 Measuring a ledge
– Position the probe below the ledge
– Press the „FCT“ key on the keypad and then the function key
„Measure a ledge“
– The probe automatically travels upwards and makes contact with
the ledge
– Position the probe above the ledge and press the „Contact a
ledge from above“ key
– The probe automatically travels downwards and makes contact
with the ledge
The width of the ledge and the position of the symmetry axis of
the ledge will be shown in the display.
3.4.4.3 Measuring a shaft
– Position the probe below the shaft (not in the center / eccentrically)
– Press „FCT“ on the keypad and then the function key
„Measure a shaft“
– The probe automatically travels upwards and makes contact with
the shaft
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / minimum, acoustic signal (beep)
will confirm acceptance
– Position the probe above the work piece (not in the center /
eccentrically)
– Press the „Contact a shaft from above“ key
– The probe automatically travels downwards and makes contact
with the shaft
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point (maximum), once the acoustic
signal is emitted, the value has been accepted
– The center point and the diameter will appear in the display.
