Mahr Digimar 816 CL User Manual

28
Mahr GmbH • Digimar 816 CL
EN

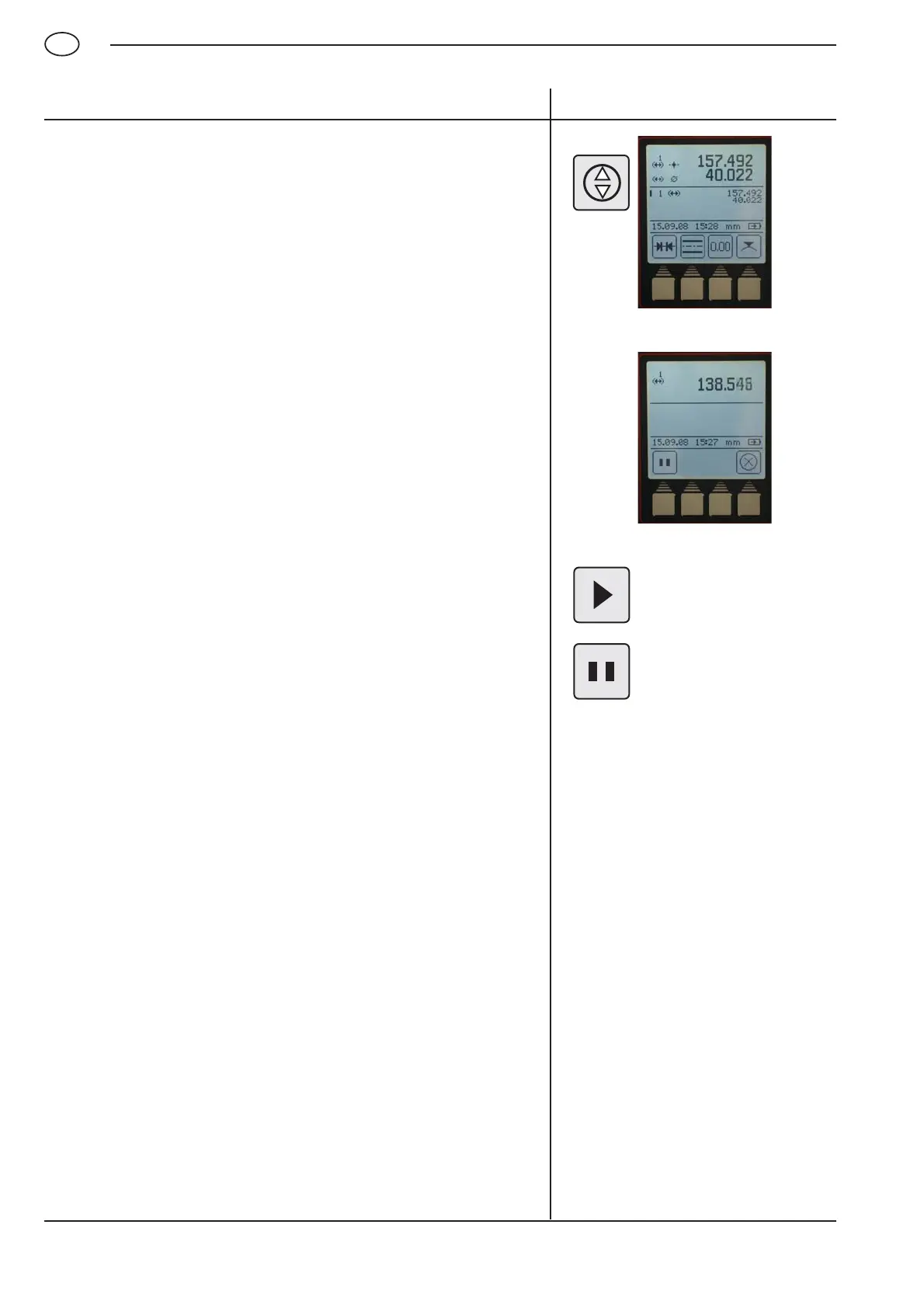

Description / Sequence Symbols / Pictures
3.3.4 Measuring a bore
– Position the probe in the bore (not in the center / eccentrically)
– Press the „Measure a bore“ on the keypad, the measurement
procedure will start
– The probe will automatically travel upwards and contact the bore
from below
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / maximum, acceptance of the
reversal point will be confirmed by an acoustic signal (beep)
– The probe will automatically travel downwards; the bore is
contacted from above
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / minimum, acceptance of the
reversal point will be confirmed by an acoustic signal (beep)
– The results (center and diameter) will appear in the display.
Tip
When measuring large bore holes or when obstacles are present the
measuring procedure can be interrupted by pressing the Pause key.
Press the Continue key to proceed.
Also see also to Chapter 2 - First measurement
Continue
Pause
2
