Mahr Digimar 816 CL User Manual

33
Mahr GmbH • Digimar 816 CL
EN

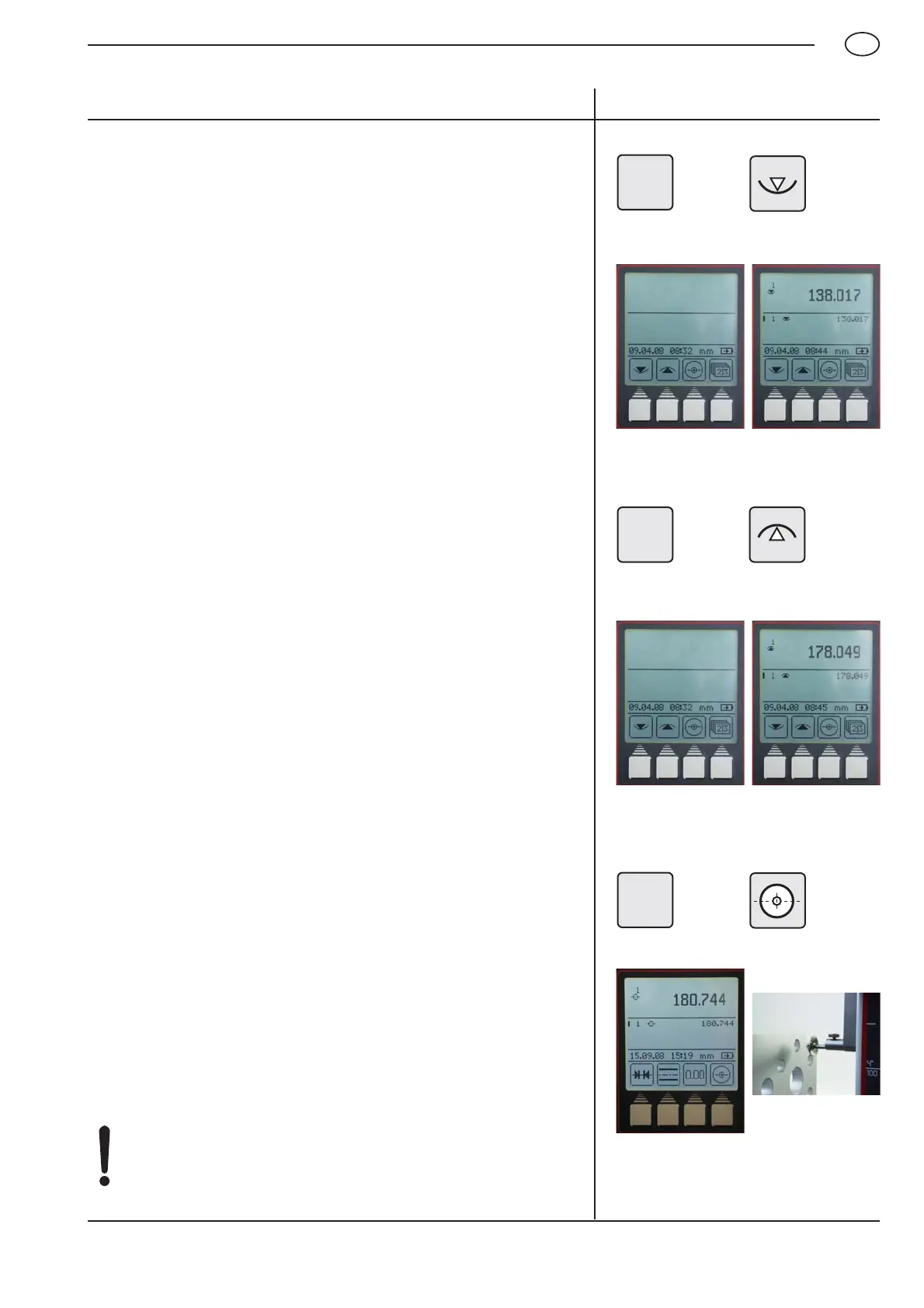

3.4.4.4 Contacting a bore from below
– Position the probe eccentrically in the bore
– Press „FCT“ on the keypad and then the function key
„Contact a bore from below“
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / minimum, the acoustic signal will
confirm acceptance
– The minimum of bore will be shown in the display.
3.4.4.5 Contacting a bore from above
– Position the probe eccentrically in the bore
– Press „FCT“ on the keypad and then the function key
„Contact a bore from above“
– Move the work piece parallel to the limit plate (stop face) in order
to determine the reversal point / maximum, the acoustic signal will
confirm acceptance
– The maximum of bore will be shown in the display.
3.4.4.6 Center of a bore / display the position
Conduct the measuring procedure with a taper probe
Insert the taper probe into the center of the bore
– Press the „FCT“ key and the function key „Bore center“
The center of the bore will appear in the display.
Note:
When exchanging a probe, the new probe must be calibrated.
See Chapter 3.1.3.
Description / Sequence Symbols / Pictures
and
and
and
FCT
7
FCT
7
FCT
7
