Mahr GmbH • Digimar 816 CL
EN

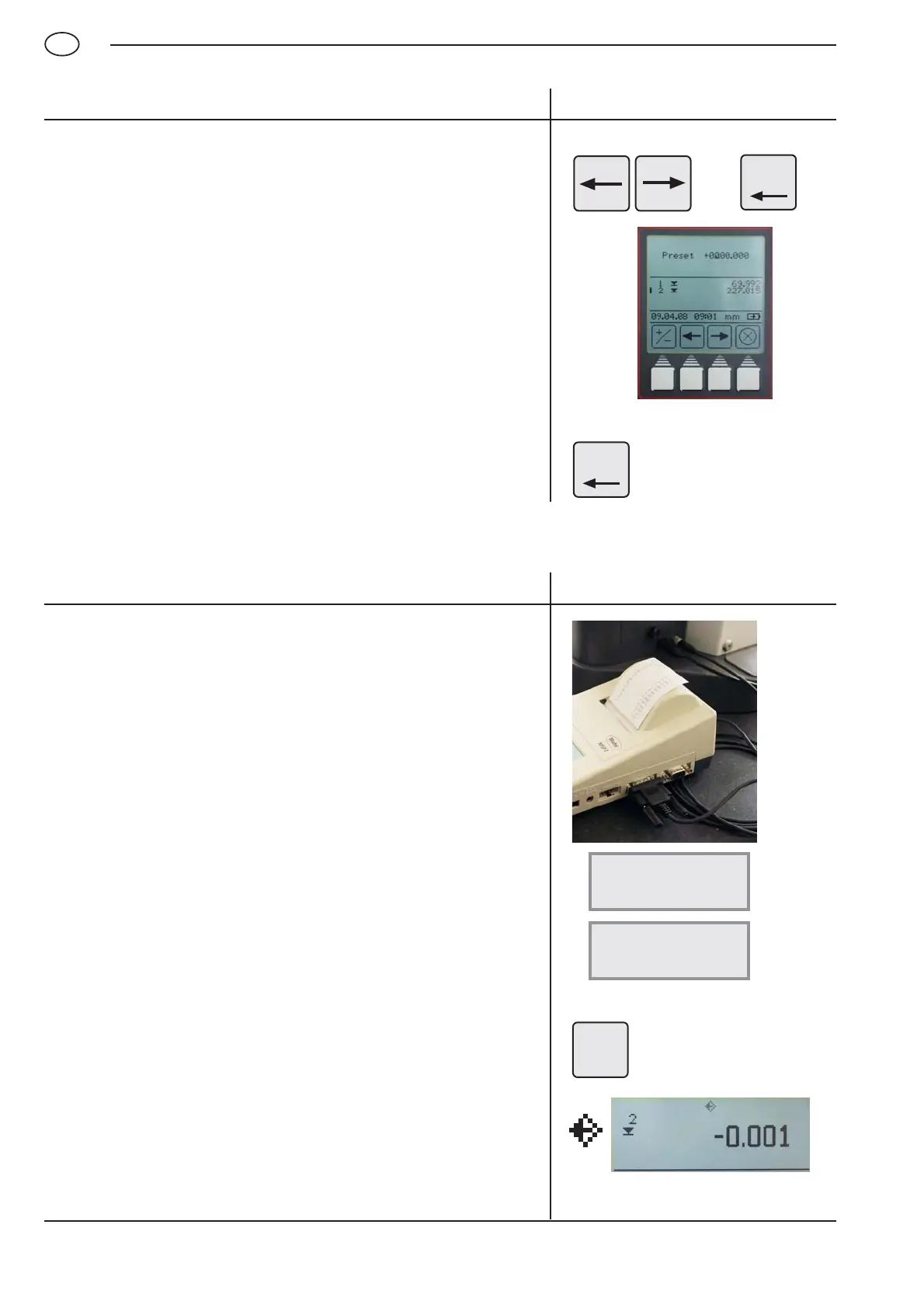

Description / Sequence Symbols / Pictures
4.2 Print measured values
and
4.1.3 Delete an entry
In some input windows for example; in the Preset window it is possible
to delete incorrect entries
– Position the cursor with the arrow keys (left and right) upon the
digit / entry which is to be deleted. Press the „CE“ key to delete
the digit.
4.1.4 Return
– Press the „CE“ key to return to next above menu.
Description / Sequence Symbols / Pictures
4.2.1 Print with an MSP2 printer
On the printer select the interface to be used, either Opto Duplex or the
ASCII printer mode.
Note:
Settings see Chapter 5.1 - Data transmission
Connect the RS232 connection cable to the INPUT on the printer
(without a Simplex / Duplex adapter)
2000r Data cable Order no. 4346020
4.3 Sending measured values
– By pressing the „DATA“ key, measured values can either be sent
manually i.e. singularly
When data is being transmitted the following symbol will appear in the
display of the height measuring instrument
Settings see Chapter 5.1 - Data transmission and Chapter Software.
ASCII-Printer
( Stat ) ( DATA )
Interface
Opto duplex
CE
CE
DATA
0
