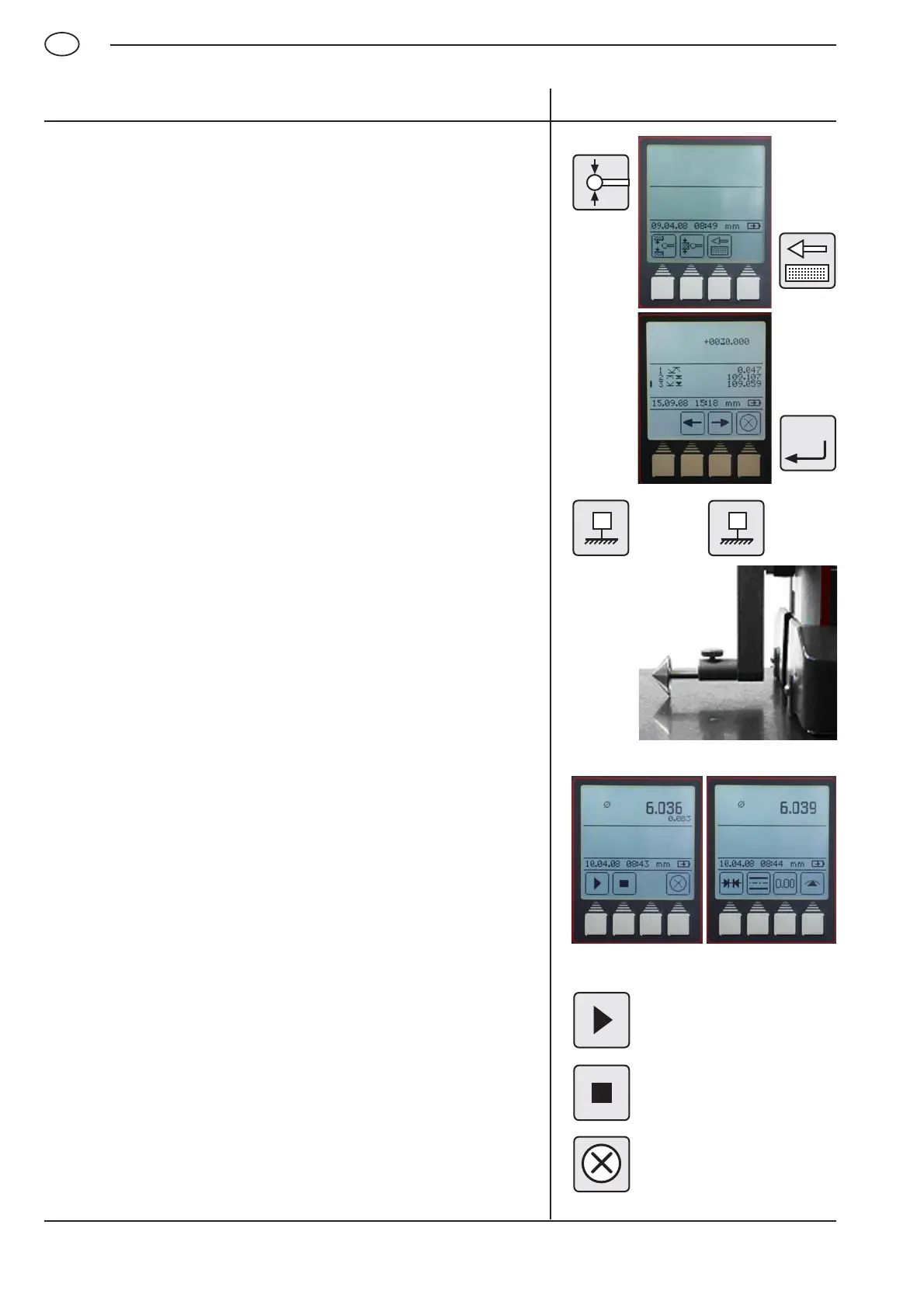

3.1.3 Calibrate with a taper probe
– Press the „Calibrate with a probe“ key
– Press the „Calibrate with a taper probe“ key
– Use the cursor keys and the numerals on the keypad to enter the
diameter of the cone (e.g. 30 mm).
– Press the „Accept“ key
– Press the „Setting the zero point“ key and then the function key
„Zero point“, to set a new zero point on the base plate
– The probe travels automatically to the base plate and sets a
zero point
Note:
When measuring with a taper probe the radius will be also be included.
Measuring procedure for taper probe, see Chapter 3.4.4.6
and
3.1.4 Deviations caused by calibration
Probes that have a large deflection (very long or very thin probes) can
cause a deviation between the two measuring procedures.
The following function keys appear:
Conduct calibration once more, the average (mean) value will be
calculated from the previous determined probe constant and the newly
measured constant
Deviation is not accepted; the old value will be maintained.
Probe constants with deviation will be shown in the status panel on the
display
Abort measurement, all previous probe constants will be maintained.
