Mahr Digimar 816 CL User Manual

55
Mahr GmbH • Digimar 816 CL
EN
20
ø8
ø4
31
20
ø8
ø6
41
20
ø8
ø10
62
20
ø8
ø10
103
9 Accessories
18,8 26,8
ø6
ø5
17,7 24,2
ø6
ø6
18,8 31,2
ø6
ø15
2,8
18,8 31,2
ø6
ø10
8
18,8 25,2
ø6
ø30
38,2
100°
1,3
18,8
36,8
ø6
h8
ø2
13,7

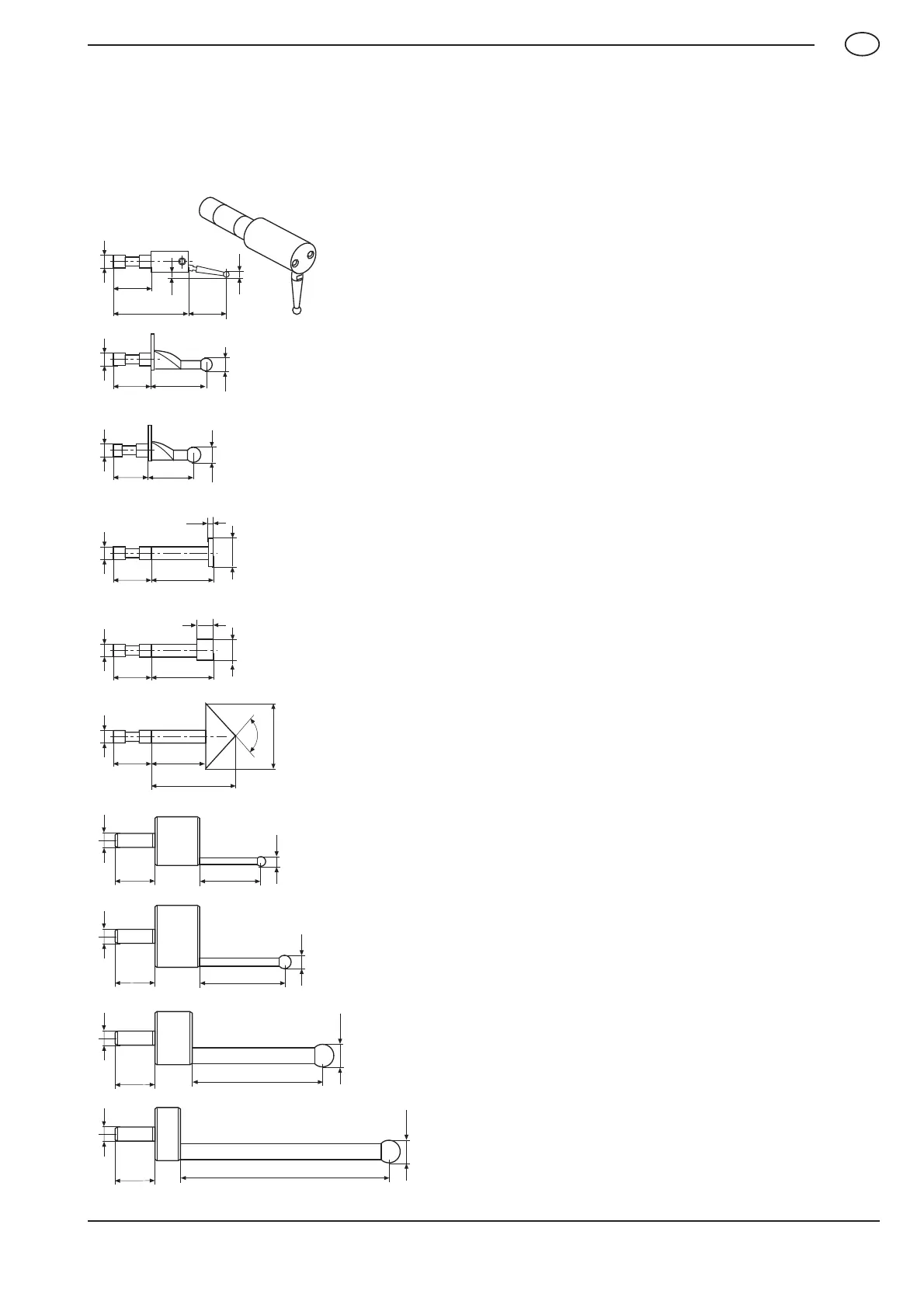

Type Weight Order no.
Probe KM2 complete 15 g (.529 oz) 4429256
Probe K5/51 15 g (.529 oz) 4429158
Probe K6/51 15 g (.529 oz) 4429254
Disc probe S15/31,2 15 g (.529 oz) 4429226
Cylindrical probe Z10/31,2 15 g (.529 oz) 4429227
Taper probe MKe 30 25 g (.881 oz) 4429228
Spherical probe K4/30 102g (3.597 oz) 7023813
Spherical probe K6/40 102g (3.597 oz) 7023816
Spherical probe K10/60 102 g (3.597 oz) 7023810
Spherical probe K10/100 102g (3.597 oz) 7023615
