3.2 Zero points
– Basic-zero point, base plate ............................................................................
– Preset - zero offset ...........................................................
3.2.1 Set the zero point on the base plate
– Press the key „Setting the zero point“ on the keypad
– Press the „Zero point on the base plate“ function key
– The probe travels automatically to the base plate and the zero
point is set
Standard display is 0.000

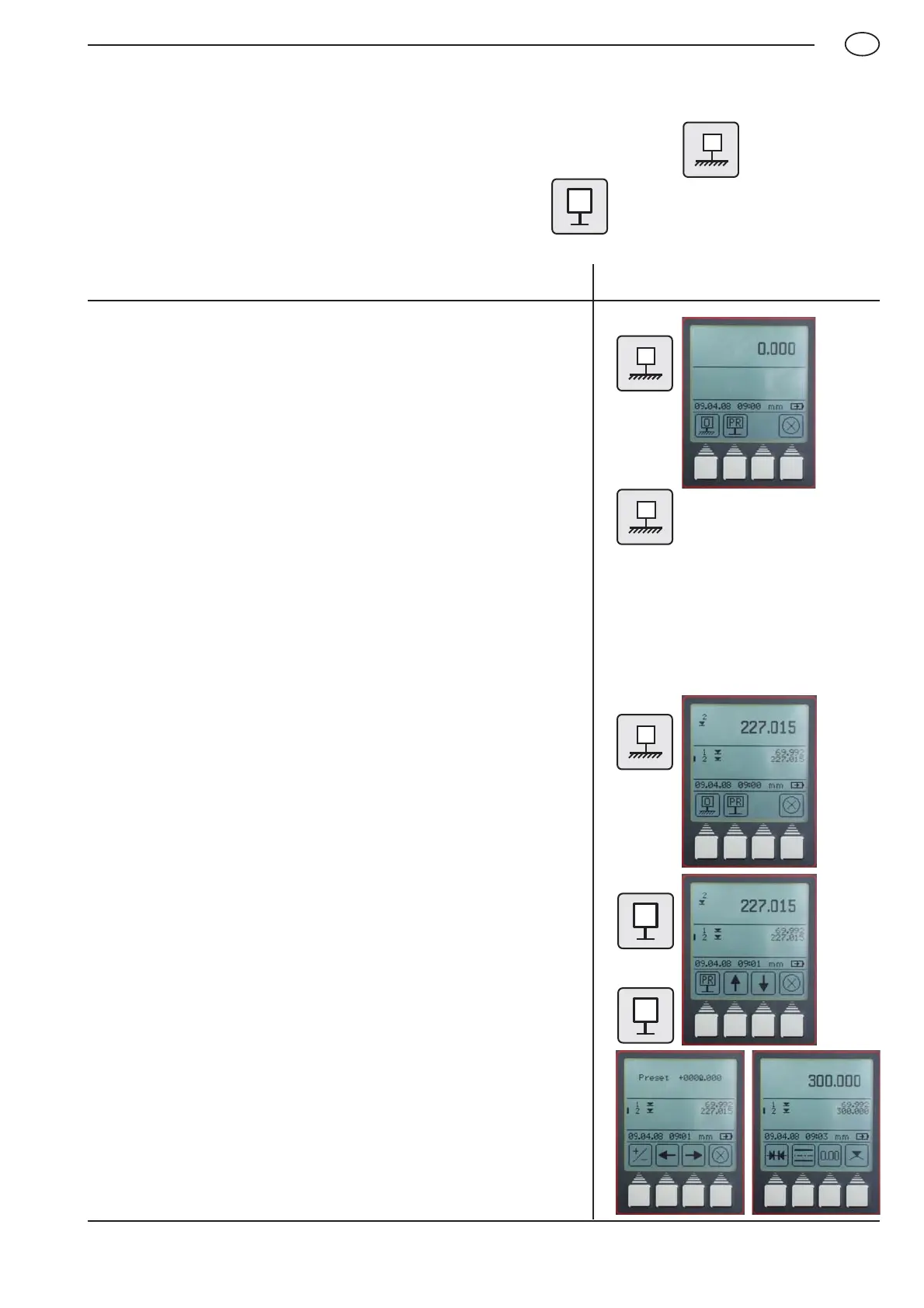

Description / Sequence Symbols / Pictures
3.2.2 Entering a PRESET value
• A Preset can only be set upon an already measured value
– Press the key „Zero point“ on the keypad
– Press the function key „Enter PRESET“
Using the cursor keys, select a measured value, upon which the
preset value should be applied, e.g. 2
– Once again press the function key „Enter PRESET“
– Enter the preset value using the cursor keys and the numerals on
the keypad
– The preset value of 300 mm applies to the dimension 227.015
(Measurement 2) as shown in this example.
0
6
PR
0
6
0
0
6
PR
PR
– After the reference point has been confirmed the „Zero point on
the base plate“ it is possible to set zero point anywhere.
