HYDRAULIC SYSTEM CD3340B/YB4411
4-50
Published 04/07/2015 Control # 569-00
Item Description
1 Cylinder Tube
2Piston Nut
3Piston
4Wiper*
5 O-ring*
6 Seal*
7 O-ring
8 O-ring
9 Back-Up Ring
10 Gland
11 Seal*
12 Wiper*
13 Cylinder Rod
* Include In Seal Kit
a0757

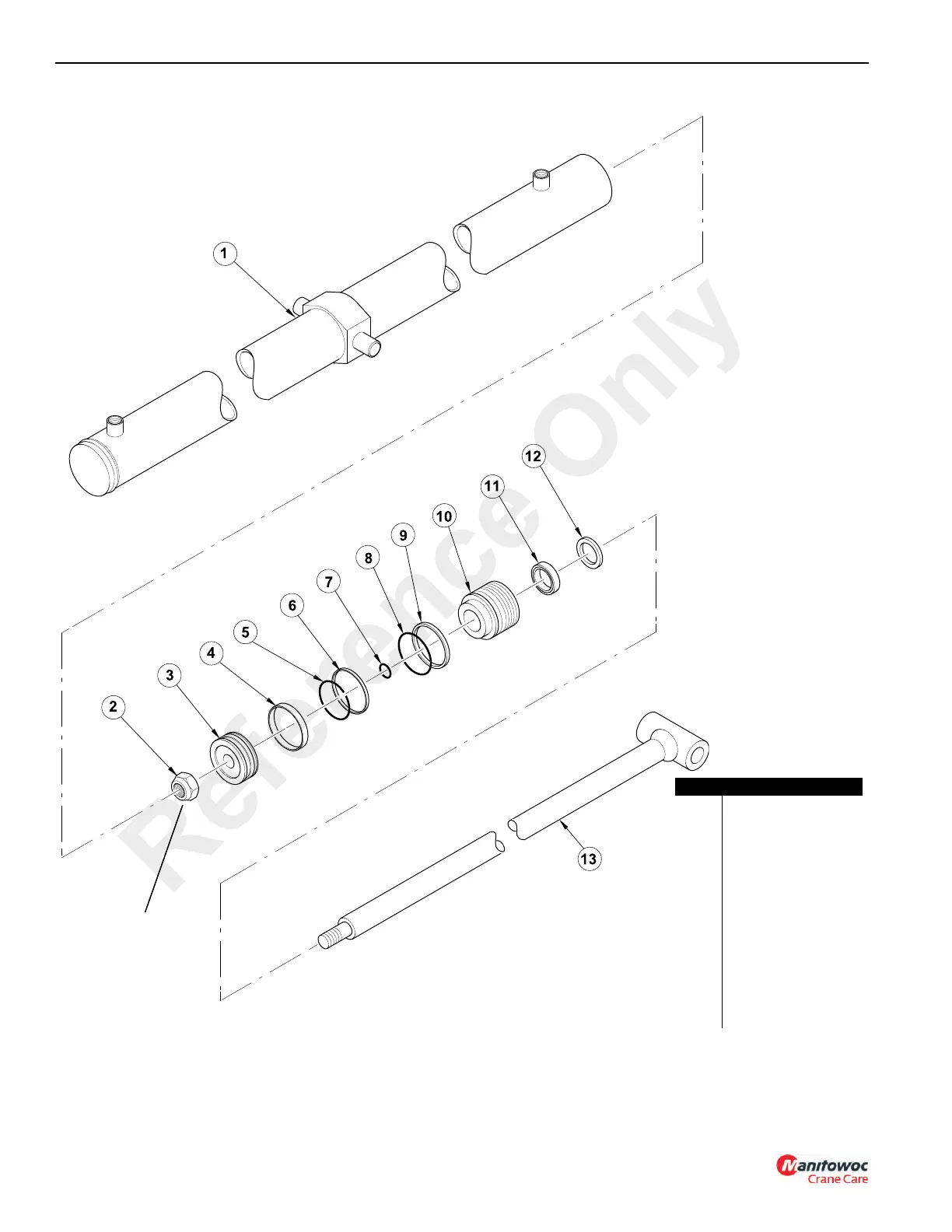

FIGURE 4-41
Tighten to a Torque of 100
lb-ft (759 Nm)
Reference Only
