Manitowoc Grove CD3340B - Lubrication Points

GROVE 5-7
CD3340B/YB4411 MAINTENANCE
5
Published 04/07/2015 Control # 569-00
LUBRICATION POINTS
No Location Name Capacity Symbol Instruction
Front Drive/steer Axle
1 Differential 2.1 Gal (8 Liters) HYDO
2 Planetary Hub Gears 0.21 Gal (0.8 Liters) HYDO
3 Kingpin Bearings EP-MPG
4 Steer Cylinder Bearing EP-MPG
5 Universal Joints EP-MPG
6 Brake Caliper EP-MPG

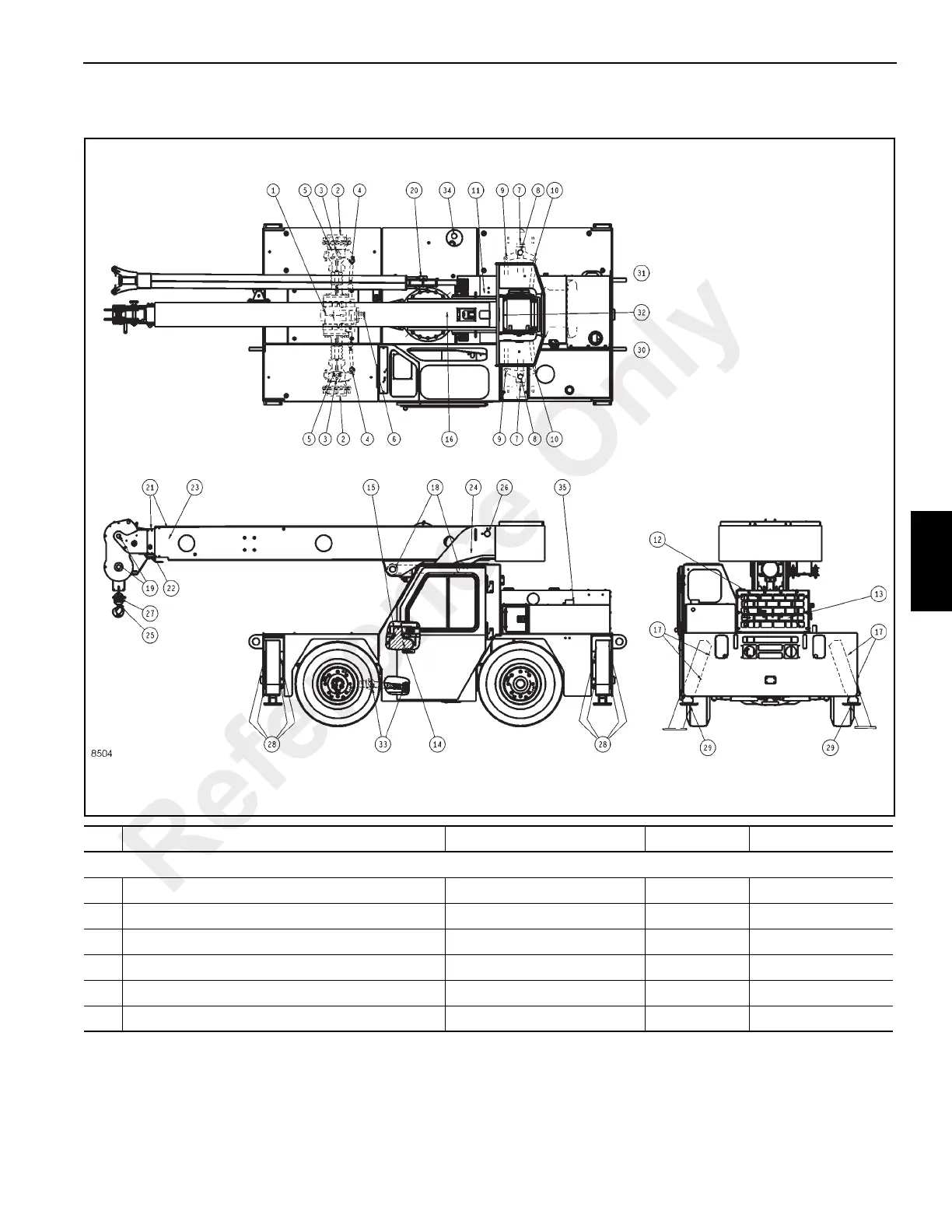

FIGURE 5-1
8504
Reference Only
