6. Hold the fitting in the desired position and tighten the nut
(Figure 1-8 D) following the F.F.F.T. method, see
Hydraulic Fitting F.F.F.T. Method starting with step 4.
Nonadjustable Straight Thread O-ring Fitting
- Fitting to Port (Table 1-13)
1. Make sure both threads and sealing surfaces are free of
burrs, nicks, scratches or any foreign particles.
2. Lubricate O-ring with clean oil (Figure 1-9).
3. Turn fitting until finger tight.
4. Using the assembly torque method, tighten to given
torque for size from Table 1-13.
a0030

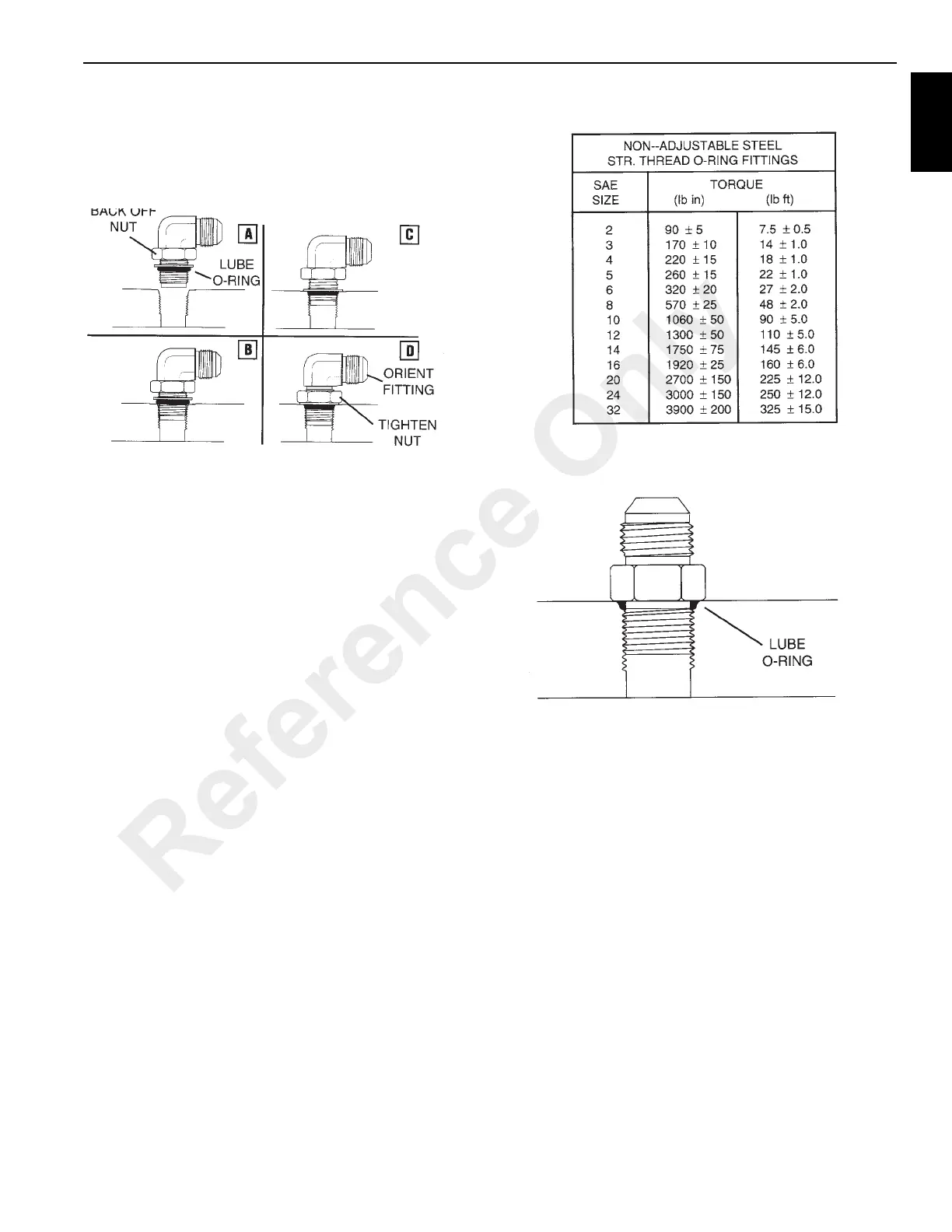

FIGURE 1-8
a0031
Table 1-13
a0032
FIGURE 1-9
