Manitowoc Grove CD3340B User Manual

ELECTRIC SYSTEM CD3340B/YB4411
3-16
Published 04/07/2015 Control # 569-00
8468-5
FIGURE 3-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
26
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
23

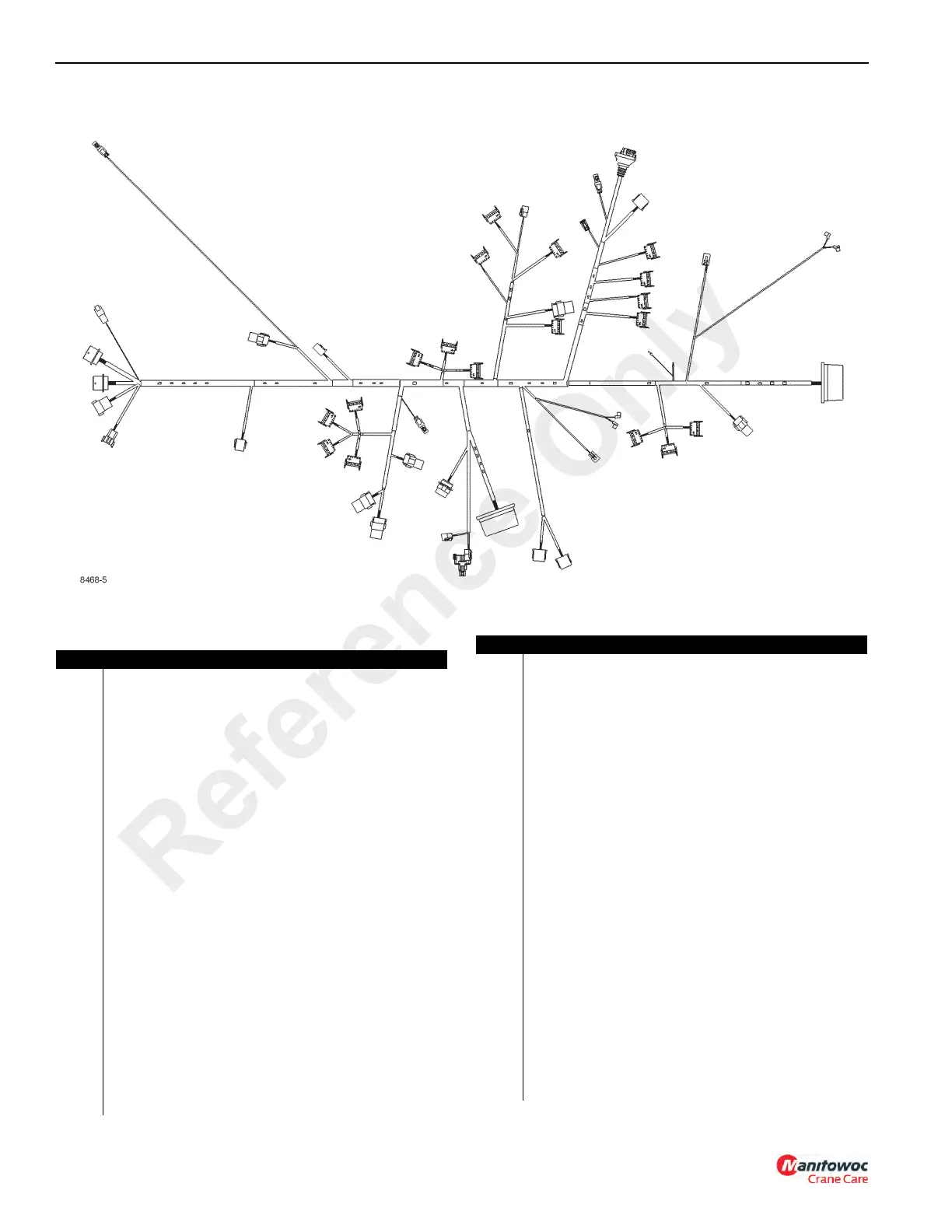

Instrument Panel Wire Harness
Item Description
1 Skylight Wiper
2 Carrier P6
3 Carrier P1
446 Splice
5 Ignition Switch
6 Parking Brake
7 Crane Power
8 Hazard Switch
9 Locked Indicator
10 RCL Override
11 LSI Display
12 Winch Switch
13 71 Splice
14 Swing Lock Switch
15 Screen Toggle Switch
16 Defroster Fan
17 Cluster Gauge
18 RCL Display
19 Defrost Switch
20 Heater Switch
21 Hoist Speed Switch
22 Outrigger Extend/Retract Switch
23 Emergency Stop Switch
24 Windshield Wiper
25 Windshield Washer
26 Fuse Box 1
27 221 Splice
28 Headlights/Worklights
29 2WD/4WD Select Switch
30 Steer Select Switch
31 Transmission Pressure Alarm
32 Flasher
33 Shift/Turn Left
34 Shift/Turn Right
35 Fuse Box 2
36 J1939 Orange
37 J1939 Blue
38 Diagnostic
39 Thumb Thumper
40 Ground Splice 3
41 Ground Splice 1
42 Ground Splice 2
43 Outrigger Left Rear
44 Outrigger Right Front
45 Outrigger Right Rear
46 Outrigger Left Front
47 Return to Center Steer
48 Carrier P5
49 Carrier P3
50 Carrier P2
Item Description
Reference Only
