Manitowoc Grove CD3340B - Page 162

TRANSMISSION AND TORQUE CONVERTER CD3340B/YB4411
7-6
Published 04/07/2015 Control # 569-00

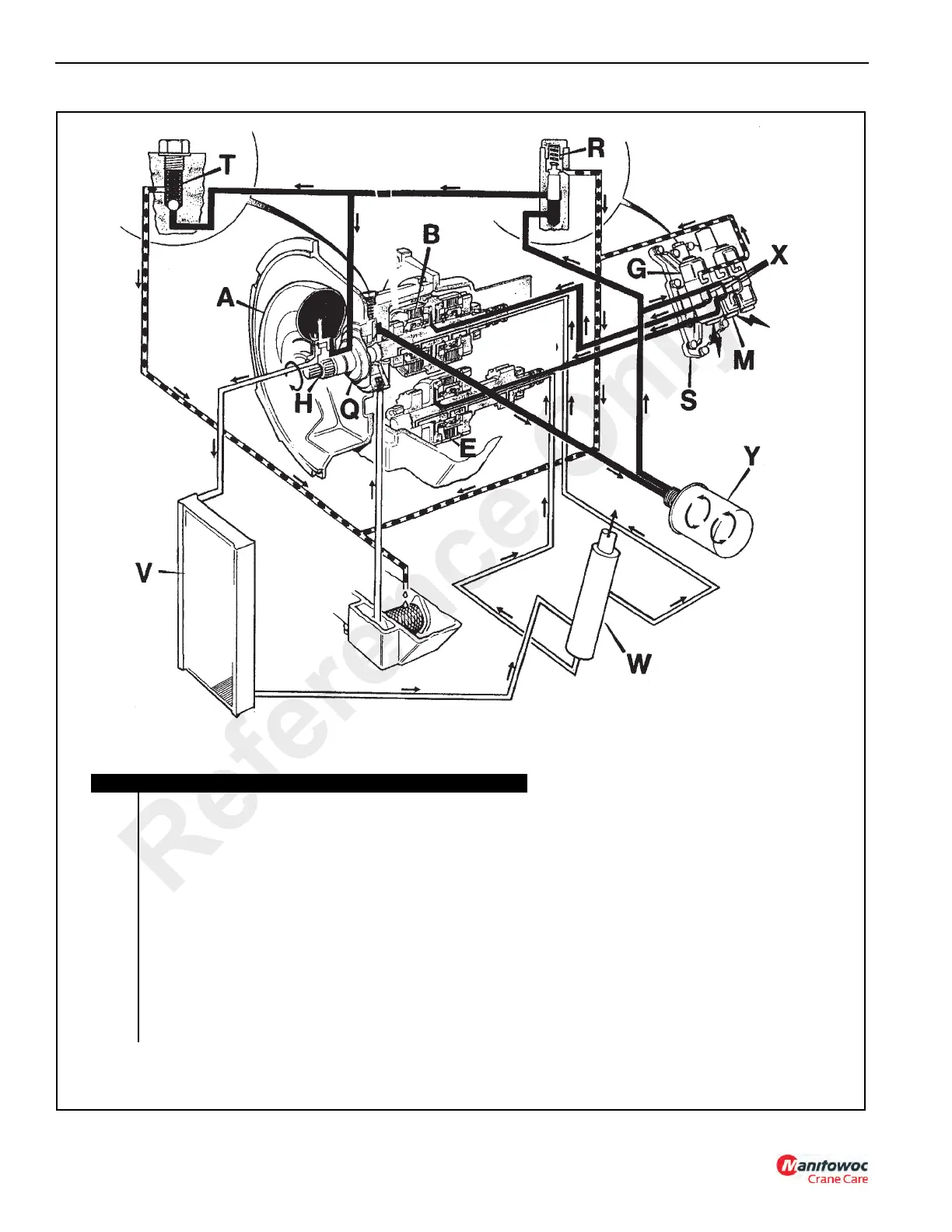

FIGURE 7-3
A0784
Item Description
A Torque Converter
B Reverse Low Ratio Clutch
E Layshaft Drive Clutch
G 3-Position Solenoid Valve (Reverse)
H Input Shaft
M 3-Position Solenoid Valve (Mainshaft/Layshaft)
QPump
R Pressure Maintenance Valve
S Adapter Block
T Relief Valve
VOil Cooler
WPipe Cluster
X Restrictor Orifices
YOil Filter
Two-Wheel Drive Transmission Hydraulic Circuits
Reference Only
