Manitowoc Grove CD3340B User Manual

ELECTRIC SYSTEM CD3340B/YB4411
3-14
Published 04/07/2015 Control # 569-00
8468-3

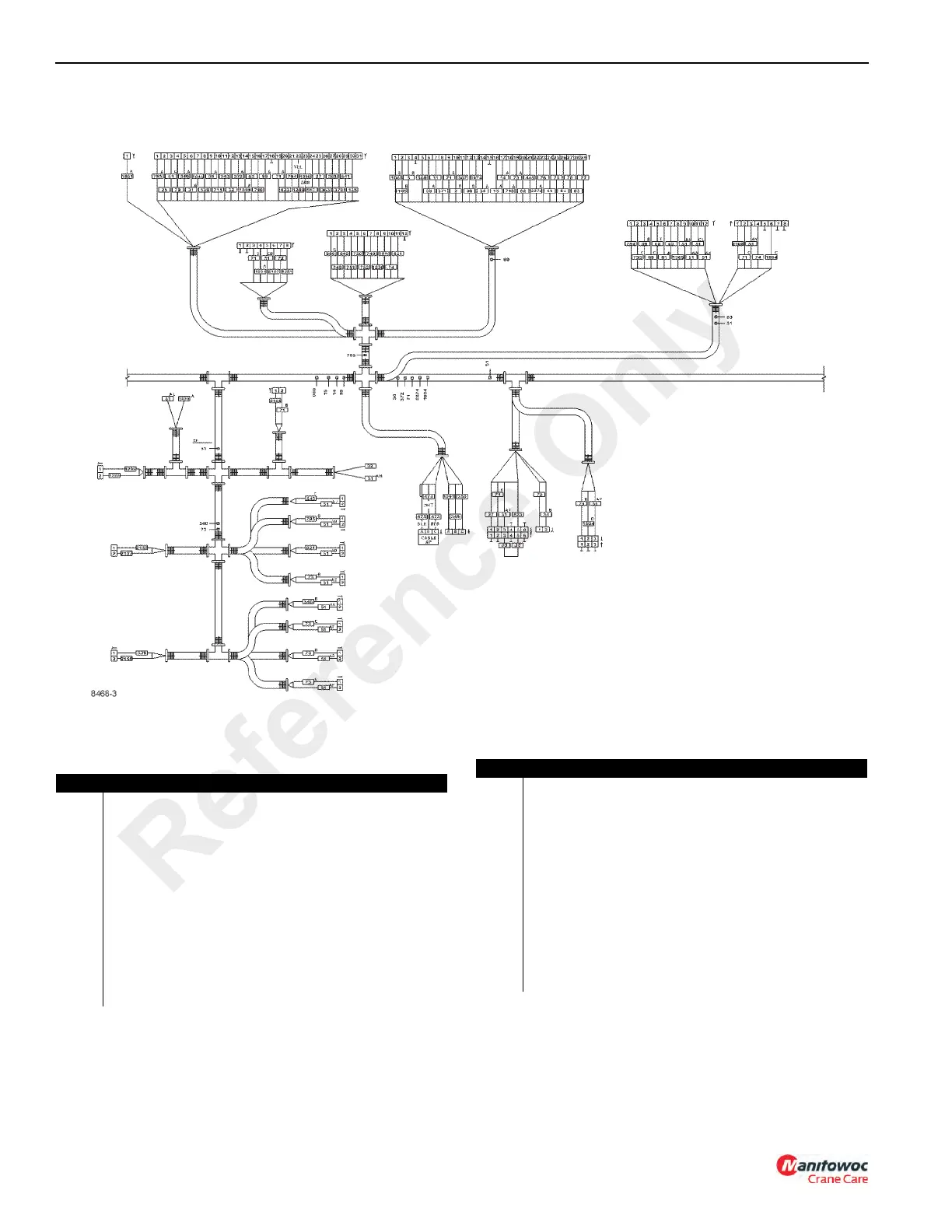

FIGURE 3-10
29
30
31
32
33
34
35
Continued on
Figure 3-11
Continued from
Figure 3-9
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Main Wire Harness Sheet 2
Item Description
29 To Dash Harness P6
30 To Dash Harness P1
31 To Dash Harness P2
32 To Dash Harness P3
33 To Dash Harness P5
34 Rear Cab Harness
35 Rear Cab Harness
36 Slew Proximity Sensor
37 Swivel
38 Throttle Pedal
39 Hoist Up
40 Boom Down
41 Telescope Out
42 Swing Right Unlock
43 Boom Up
44 Hoist Down
45 Crane Power
46 Swing Left Unlock
47 Fuel Sender
48 Load Sense Pressure Switch
49 Swing Right Lock Pressure Switch
50 Swing Left Lock Pressure Switch
51 WIF Sensor
52 Outrigger Alarm
Item Description
Reference Only
