Maintenance work on the carrier
7.3 Engine
09.03.2018
Maintenance manual 3 302 744 en 7 - 25
GMK5250L

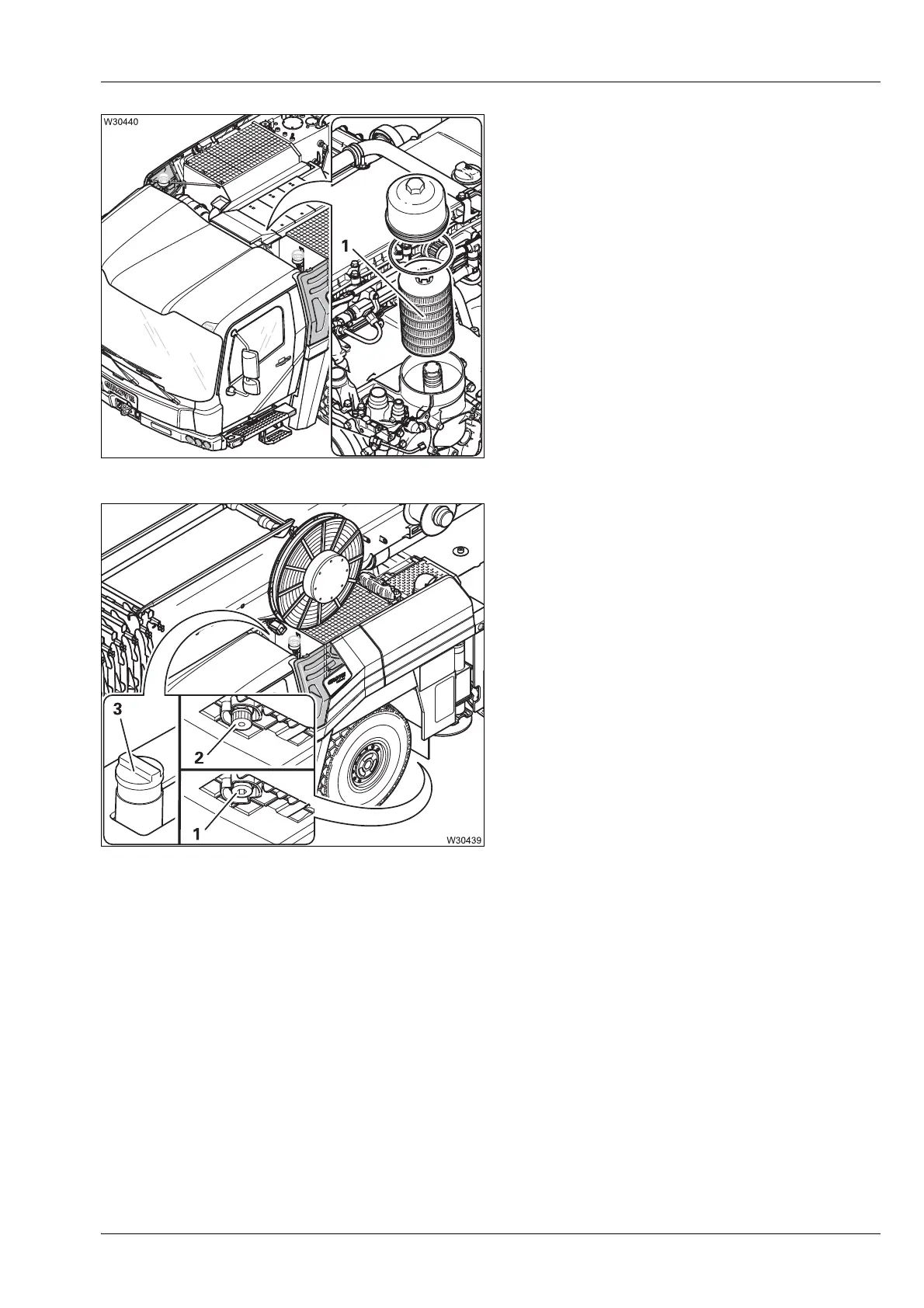

Oil filter
• Place a receptacle underneath the engine.
• Change the oil filter (1) using a socket
wrench – torque 55 Nm (40.5 lbf ft);
à Engine manufacturer's documentation.
• Leave the receptacle in place for the oil
change.
Draining oil
• Remove the drain plug (1) or screw the con-
necting piece with hose on the valve (2) and
drain the oil into the receptacle;
à Handling
the valves
, p. 7 - 112.
If required, you may replace the drain plug
with a valve;
à p. 7 - 14.
• Tighten the drain plug (1) – torques for M 20/
M 26;
à p. 7 - 14 or remove the connecting
piece with hose from valve (2) and remove
the receptacle.
Topping up oil
• Top up with fresh oil through the filler
neck (3);
à p. 7 - 13.
