Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.9 Axle lines
09.03.2018
Maintenance manual 3 302 744 en 7 - 67
GMK5250L
7.9.4 Final drives – checking the oil level
Spare parts and
tools
1)
Additional equipment (3
rd
driven axle line)
Prerequisites – The truck crane must be raised on outriggers and must be level.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The parking brake must be released.
Checking the oil
level
• Check the oil level at all other final drives in
the same way.

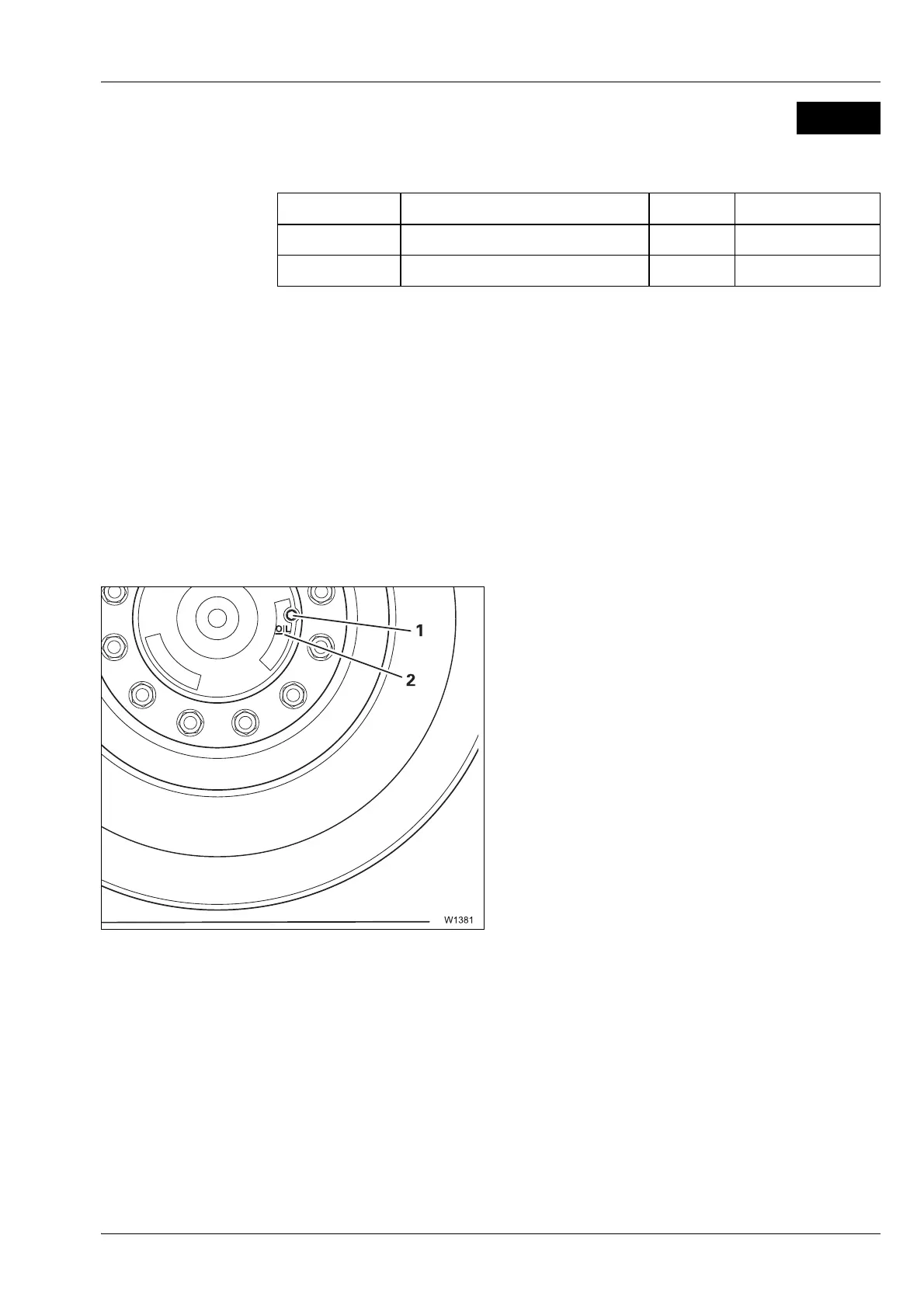

• Turn the wheel until the mark (2) is horizon-
tal and is on the right, next to the centre of
the axle.
• Remove the drain plug (1).
• Check that the oil level is at the mark (2).
• Fit a new gasket and tighten the drain plug.
If the oil level is too low
• Top up the oil; à p. 7 - 69.
M 1
for drive Designation Quantity GROVE part no.
10 x 6 x 10 Gasket 24 x 29 Cu DIN 7603 6 00117145
10 x 8 x 10
1)
Gasket 24 x 29 Cu DIN 7603 8 00117145
