Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.7 Transfer case
09.03.2018
Maintenance manual 3 302 744 en 7 - 49
GMK5250L
7.7 Transfer case
Variants The truck crane GMK5250L is equipped with different transfer cases
depending on whether the drive variant is 10 x 6 x 10 or 10 x 8 x 10:
• Note the à Run-in regulations, p. 4 - 1.
7.7.1 General inspection
• Investigate any unusual noises made by the transfer case.
• Check the transfer case and the connections for leaks. If consumables are
leaking;
à Checking the oil level, p. 7 - 49.
• Check that pipes and hoses are tightly connected and not damaged.
If any damage is found, report it to Manitowoc Crane Care or an authorised
GROVE dealer or an authorised specialist workshop.
7.7.2 Checking the oil level
Spare parts and
tools
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
s

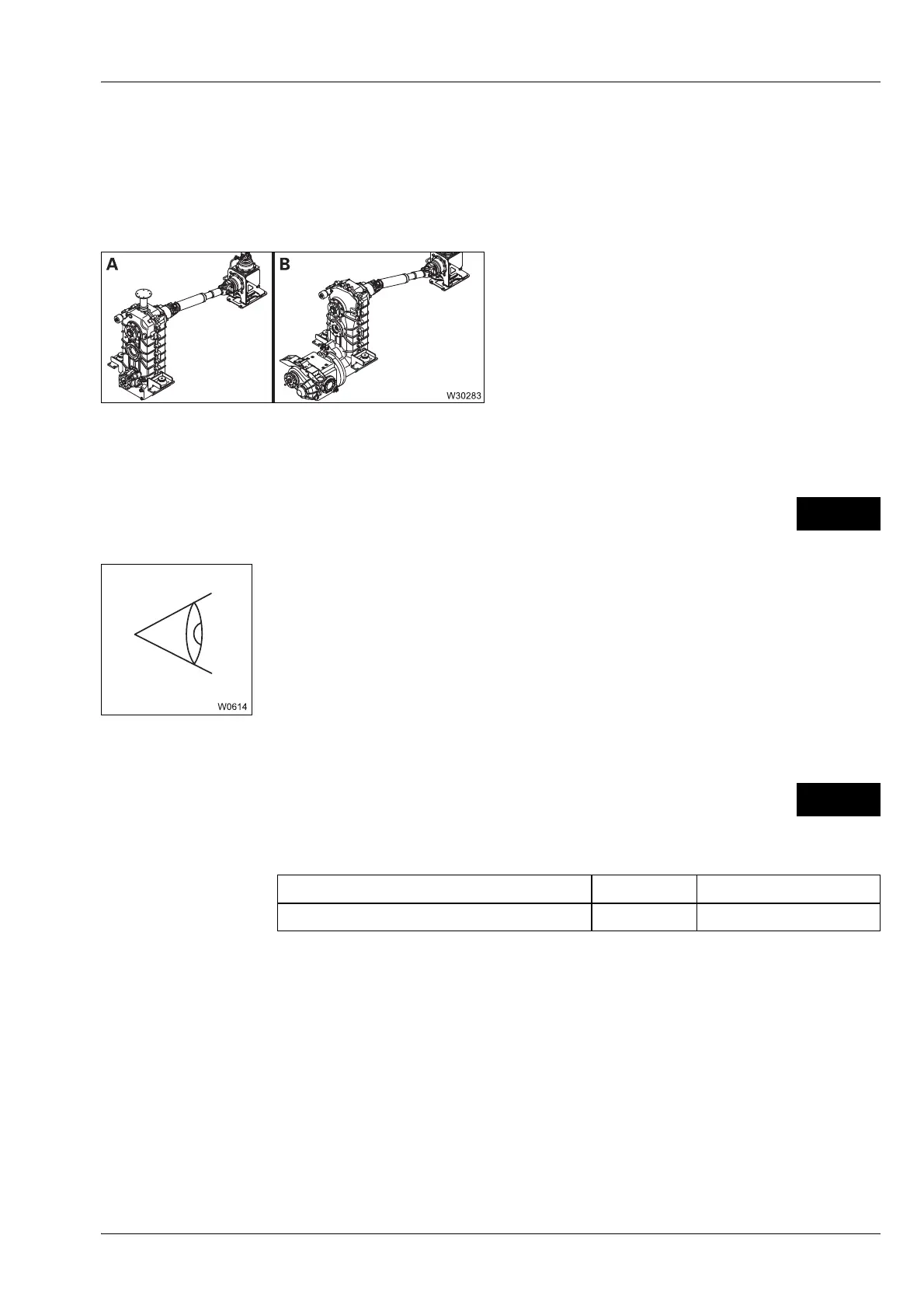

A Transfer cases for drive 10 x 6 x 10.
B Transfer cases for drive 10 x 8 x 10.
W
M 1
Designation Quantity GROVE part no.
Gasket 30 x 36 Cu DIN 7603 1 00117151

Manitowoc Grove GMK 5250L Specifications

General

Brand	Manitowoc
Model	Grove GMK 5250L
Category	Construction Equipment
Language	English
