Maintenance work on the superstructure
8.6 Hydraulic system
09.03.2018
Maintenance manual 3 302 744 en 8 - 31
GMK5250L
8.6 Hydraulic system
8.6.1 Checking the oil level
Prerequisites – The truck crane must be level and in on-road mode; à Operating manual.
– The telescoping cylinder must be locked in telescopic section I;
à Operating manual.
– The truck crane must be standing on a level surface.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Checking the oil
level

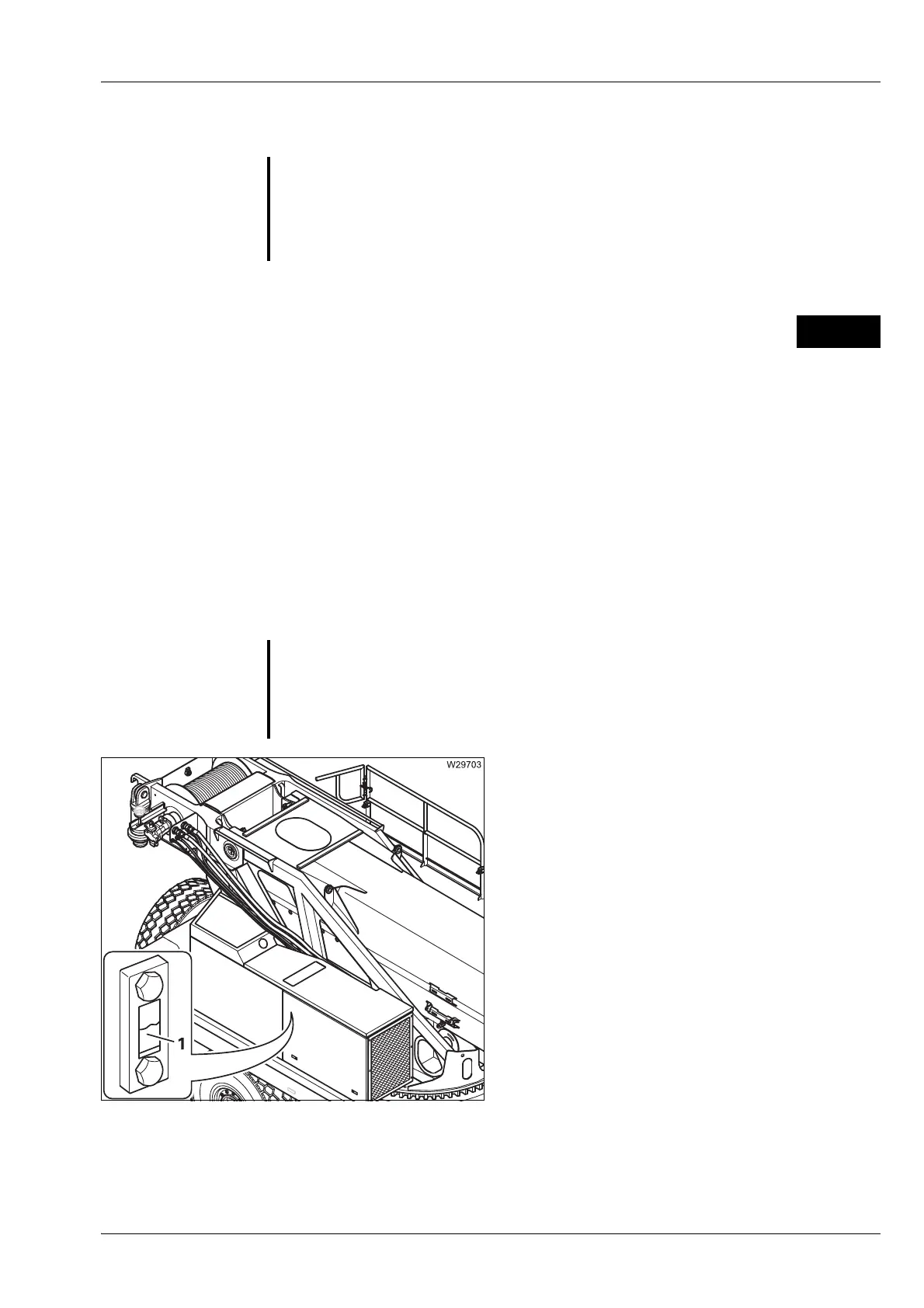

• Check whether oil is visible in the middle of
the inspection glass (1).
If the oil level is too low
• Top up the oil; à p. 8 - 45.
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
S
Risk of damage to the hydraulic system.
Cleanliness is imperative when handling hydraulic oil.
Even fresh hydraulic oil must be filtered before it is added to the tank.
