Maintenance work on the carrier
7.14 Compressed air system
09.03.2018
Maintenance manual 3 302 744 en 7 - 99
GMK5250L
7.14.3 Replacing the filter cartridge of the compressed
air drier
Spare parts and
tools
– Strap wrench.
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Changing the filter
cartridge

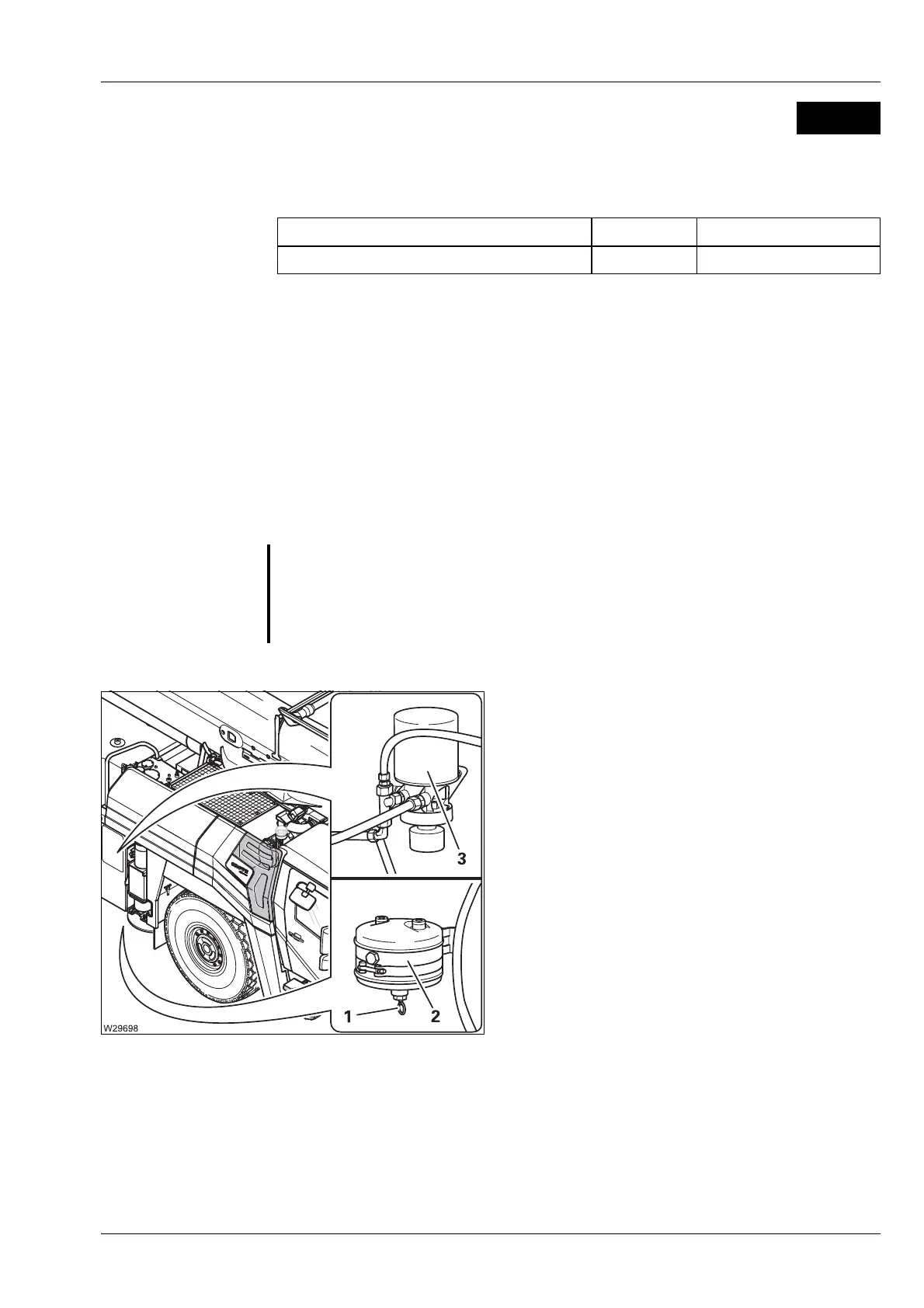

• Using the valve (1), release all the air from
the reservoir (2).
• Replace the filter cartridge (3) using the
strap wrench (lubricate gasket slightly).
Designation Quantity GROVE part no.
Filter cartridge with gasket 1 04157844
G
Risk of injury from escaping compressed air.
If the reservoir (2) is not completely vented, the compressed air drier will be
under pressure.
Bleed the reservoir until air no longer escapes from the valve.
